Overview
INTRODUCTION

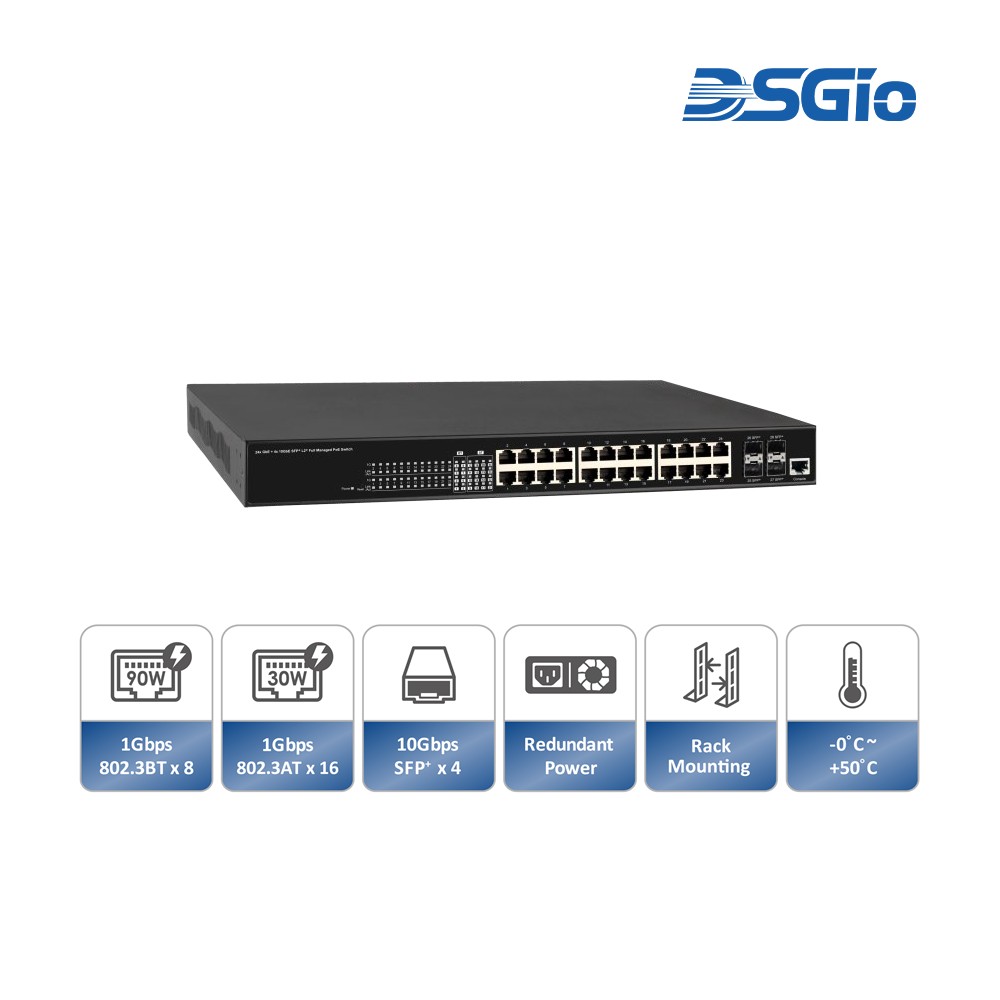

The DSGio CMS-24P410GF managed PoE switch is built for diverse network deployments, offering a high-bandwidth, non-blocking switch fabric to ensure low-latency, high-speed data transmission. It features multi-rate uplink ports for flexible and scalable network expansion, along with link aggregation to boost overall throughput.
With IEEE 802.3af/at/bt PoE support, it delivers reliable power to connected IP devices. Advanced Layer 2+ management functions—including VLAN, QoS, and robust security features—enable efficient network segmentation and traffic optimization. Its 19-inch rack-mountable form factor allows seamless integration into standard enterprise and data center environments.
SPECIFICATIONS
Interface | ||
10M/100M/1000Mbps RJ45 Port | 24 | |
1G/2.5G/10Gbps SFP+ Slot | 4 | |
RJ45 Console Port for CLI Management | 1 | |
System Performance | ||
Packet Buffer | 32Mb | |
NAND Flash Memory | 2Gb | |
NOR Flash Memory | 256Mb | |
SDRAM Memory (DDR3) | 4Gb | |
MAC Address Table Size | 32K | |
Jumbo Frame | 10KB | |
Switching Capacity | 128Gbps | |
Forwarding Rate (64-byte) | 95.232Mpps | |
Power over Ethernet | ||
PoE Power Output | Port 1 – 8 : IEEE 802.3af/at/bt, 90W Max. Port 9 – 24: IEEE 802.3af/at, 30W Max. | |
PoE Power Type | Port 1-8(BT): End-Span, Type 4: 3/4/5/6(+), 1/2/7/8(-) Port 9-24(AT): End-Span, Mode A: 1/2(+), 3/6(-) | |
Max. Power Consumption | Refer to Power Supply Unit Bundle Configuration | |
Max. PoE Budget | Refer to Power Supply Unit Bundle Configuration | |
Power Feeding Detecting Capability on PD | ● | |
PD Alive Check | ● | |
PD Classification | ● | |
PoE Scheduling | ● | |
Power Management (Per Port) | Enable/Disable PoE Per Port | ● |
Priority Setting Per Port | ● | |
Power Level Setting Per Port | ● | |
Overloading Protection | ● | |
L2 Features | ||
Auto-Negotiation | ● | |
Auto MDI/MDI-X | ● | |
Flow Control (Duplex) | 802.3x (Full) | ● |
Back-Pressure (Half) | ● | |
Spanning Tree | IEEE 802.1D (STP) | ● |
IEEE 802.1w (RSTP) | ● | |
IEEE 802.1s (MSTP) | ● | |
VLAN | VLAN Group | 4K |
Tagged Based | ● | |
Port-Based | ● | |
Q-in-Q | ● | |
Voice VLAN | Voice VLAN with OUI | |
Link Aggregation | IEEE 802.3ad with LACP | ● |
Static Trunk | ● | |
Max. Static Aggregation Group | 14 | |
Max. Port per Static Agg. Group | 8 | |
IGMP Snooping | IGMP Snooping v1/v2/v3 | Supports 1024 IGMP Groups |
IGMP Static Multicast Addresses | Supports 1024 Static Multicast Addresses | |
IPv6 MLD Snooping | Supports 1024 MLD Groups | |
MLD Static Multicast Addresses | Supports 1024 Static Multicast Addresses | |
Querier, Immediate Leave | ● | |
Storm Control (Broadcast / Multicast / Unknown Unicast) | ● | |
Loop Protection | ● | |
QoS Features | ||
Number of Priority Queue | 8 Queues/Port | |
Rate Limiting | Ingress | Yes, 1 KBps/1pps |
Egress | Yes, 1 KBps/1pps | |
DiffServ (RFC2474 Remarking) | ● | |
Scheduling (WRR, Strict, Hybrid) | ● | |
CoS | IEEE 802.1p | ● |
IP ToS Precedence, IP DSCP | ● | |
Security | ||
Management System User Name / Password Protection | ● | |
User Privilege | Set User Privilege up to 15 Level | |
Port Security (MAC-based) | ● | |
IEEE 802.1x Port-based Access Control | ● | |
ACL (L2/L3/L4) | ● | |
IP Source Guard | ● | |
RADIUS (Authentication, Authorisation, Accounting) | ● | |
TACACS+ | ● | |
HTTP & SSL (Secure Web) | ● | |
SSH v2.0 (Secured Telnet Session) | ● | |
MAC / IP Filter | ● | |
L3 Features | ||
Static Route | ● | |
Management | ||
Command Line Interface (CLI) | ● | |
Web Based Management | ● | |
Telnet | ● | |
Access Management Filtering | SNMP/Web/SSH/Telnet | |
Firmware Upgrade via HTTP | ● | |
Dual Firmware Images | ● | |
Configuration Download / Upload | ● | |
SNMP (v1/v2c/v3) | ● | |
RMON (1, 2, 3 & 9 Groups) | ● | |
DHCP (Server / Client / Relay / Option 82 / Snooping) | ● | |
System Event / Error Log | ● | |
TFTP (Trivial File Transfer Protocol) | ● | |
NTP / LLDP | ● | |
Cable Diagnostics | ● | |
IPv6 Configuration | ● | |
Port Mirroring | ● | |
Physical Characteristics | ||
Dimension (W x H x D) | Internal PSU: 440 x 44 x 330 mm Redundant PSU: 440 x 44 x 330 mm with PSU Handle & Latch Button: 440 x 44 x 360 mm | |
Reset Button | 1 Reset Button for restoring default | |
LED | Power, Speed, Link/ACT.,PoE | |
Cooling | Fan Cooling | |
Enclosure | Metal | |
Installation | Desktop / Rack Mount | |
Weight | Refer to Power Supply Unit Bundle Configuration | |
System Power Requirements | ||
System Power Input | 44-57 VDC | |
Max. System Power Consumption | 30W | |
Power Supply Information | ||
Power Supply (600W) | Input : 100-240 V~, 50-60Hz, 8.5A Max. | |
Output : 54.5VDC / 11A, 600W Max. | ||
Power Supply (920W) | Input : 100-240 V~, 50-60Hz, 12A Max. | |
Output : 54.5VDC / 16.88A, 920W Max. | ||
Power Supply (1200W) | Input : 100-240V~, 50-60Hz, 12A Max. | |
Output : 54.5VDC / 22A, 1200W Max. | ||
Environment Limits | ||
Operating Temperature | 0 ~ 50°C | |
Storage Temperature | -20 ~ 80°C | |
Operating Humidity | 10 ~ 90% RH (Non-condensing) | |
Storage Humidity | 10 ~ 90% RH (Non-condensing) | |
Protection and Alarms | ||
ESD | DC Contact 4KV, Air 8KV | |
Surge | AC Line to Line 1KV, Line to Ground 2KV | |
Certifications | ||
Electromagnetic Emissions (EMC) | CE, FCC, UKCA | |
Safety | EN62368-1 | |
Standard | ||
IEEE 802.3 – 10Base-T | ● | |
IEEE 802.3u – 100Base-TX | ● | |
IEEE 802.3ab – 1000Base-T | ● | |
IEEE 802.3z – 1000Base-SX/LX | ● | |
IEEE 802.3ae – 10GBase (SFP+) | ● | |
IEEE 802.3af – Power over Ethernet (PoE) | ● | |
IEEE 802.3at – Power over Ethernet (PoE+) | ● | |
IEEE 802.3bt – Power over Ethernet (PoE++) | ● | |
IEEE 802.3az – Energy Efficient Ethernet (EEE) | ● | |
IEEE 802.3x – Flow Control | ● | |
IEEE 802.3ad – Link Aggregation Control Protocol (LACP) | ● | |
IEEE 802.1Q – VLAN Tagging | ● | |
IEEE 802.1v – Protocol-Based VLAN | ● | |
IEEE 802.1p – Class of Service (CoS) | ● | |
IEEE 802.1D – Spanning Tree Protocol (STP) | ● | |
IEEE 802.1w – Rapid Spanning Tree Protocol (RSTP) | ● | |
IEEE 802.1s – Multiple Spanning Tree Protocol (MSTP) | ● | |
IEEE 802.1AB – Link Layer Discovery Protocol (LLDP) | ● | |
IEEE 802.1X – Port-Based Network Access Control | ● | |
ITU-T G.8032/Y.1344 – Ethernet Ring Protection Switching (ERPS) | ● | |
Product Features
· IP Source Guard and Port Security for enhanced access control
· IEEE 802.3af/at/bt PoE support, delivering up to 90W or 30W per port
· Non-blocking Switching Architecture
· Layer 2+ Fully Managed Features, including MSTP, LACP, LLDP, sFlow, 802.1X, RADIUS, TACACS+, and ACLs
· Integrated DHCP Server, DHCP Relay, and DHCP Snooping
· Support for Voice VLAN and PD Alive Check for improved device monitoring
· Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption
· Multicast Support, including IGMP Snooping (v1/v2/v3), IGMP Proxy, IGMP Querier, MVR, and MLD Snooping (v1/v2)
Power Supply Unit Bundle Configuration
Model No. | Power Source Unit (PSU) | PoE Budget | Weight | Dimension (W x H x D) |
CMS-24P410GF-600W | 1 | 540W | 4.9 Kg | 440 x 44 x 330 mm |
CMS-24P410GF-RP600W | 2 (Hot-Swappable Redundant PSU) | 540W | 5.7 Kg | 440 x 44 x 360 mm |
CMS-24P410GF-920W | 1 | 860W | 4.9 Kg | 440 x 44 x 330 mm |
CMS-24P410GF-RP920W | 2 (Hot-Swappable Redundant PSU) | 860W | 5.7 Kg | 440 x 44 x 360 mm |
CMS-24P410GF-1200W | 1 | 1140W | 4.9 Kg | 440 x 44 x 330 mm |
CMS-24P410GF-RP1200W | 2 (Hot-Swappable Redundant PSU) | 1140W | 5.7 Kg | 440 x 44 x 360 mm |
Model Name Abbreviation with RP denotes Redundant Power.
Note :
1. The RP switch hardware design supports dual redundant power supplies. This feature is hardware-based and not user-configurable.
2. 600W PSU, 540W PoE budget: suitable only if every powered device conforms to IEEE 802.3af and total power draw will remain below 540W. If any device requires higher PoE (e.g., 802.3at/at+), or you want redundancy/headroom, choose a higher-capacity PSU.
