Product Details
Transmission
- The transmission distance is up to 550 meters over fiber multimode optics, incl. transmission module(s)/SFP transceiver(s)
Device

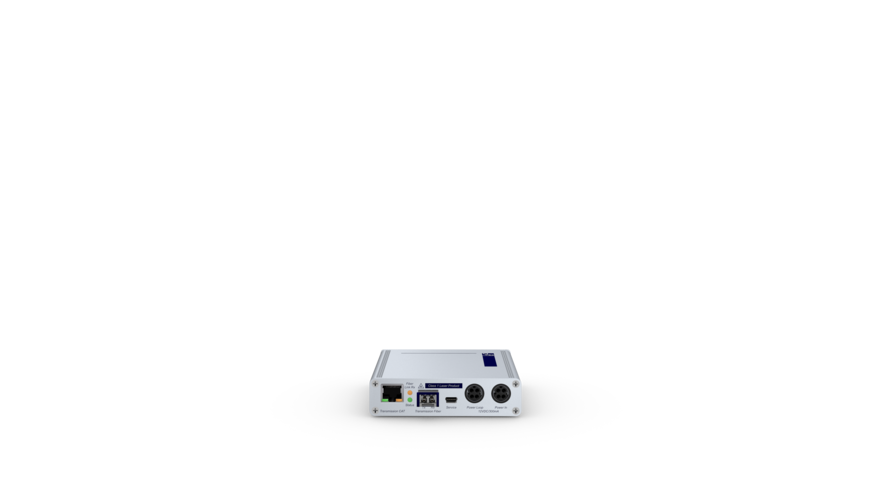

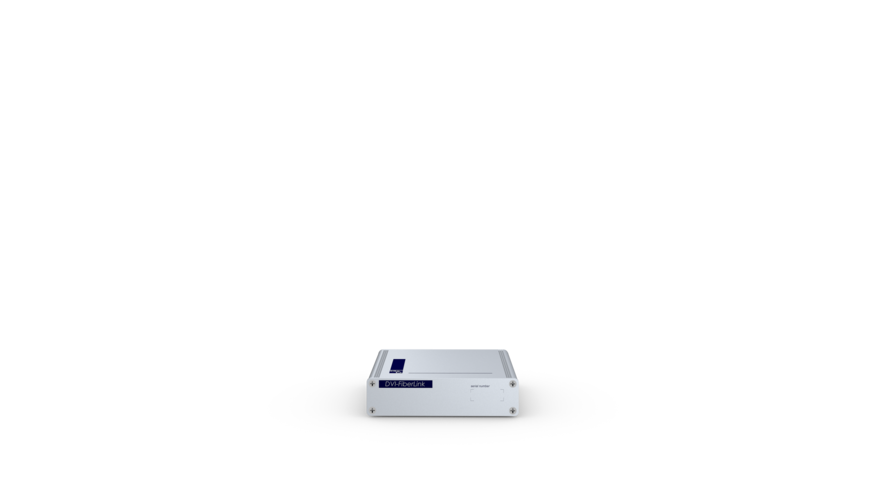

- Active media converter from CAT to fiber
- PowerPack not included in the scope of delivery for Basic variants
Operation
- The device can be placed between the following components:
- Two digital matrix switches
- A computer module (e. g. DVI-CPU) and a digital matrix switch
- A console module (e. g. DVI-CON) and a digital matrix switch
Warranty
- A 3-year, free of charge product guarantee
- For an additional fee guarantee extension possible
Features
Device
- External power pack supplies up to five modules with power via the power loop function
Extensions
Device
- External power supply via external 12V power pack or G&D-MultiPower, providing a central and redundant power supply
Technical Specifications
| General | |
|---|---|
| Brand | G&D |
| Product group | KVM add-ons |
| Product Family | DVI-FiberLink |
| Country of origin | Germany |
| Power Supply | no redundancy |
| Maintenance | |
| Update via | Update Wizard (service interface) |
| Serviceport settings | 115200bps (8/N/1) |
| Housing | |
| Material | Anodised aluminium |
| Active cooling (fan) | no |
| Width ca. | 105 mm |
| Height ca. | 26 mm |
| Depth ca. | 84 mm |
| IP protection class | IP20 |
| Weight ca. | 0.22 kg |
| Operating conditions | |
| Operating environment temperature | 5 °C to 45 °C |
| Operating air humidity, non-condensing | 20 % to 80 % |
| Area of application | Indoor use |
| Maximum operating altitude above sea level | 3,048 m |
| Storage environment temperature | -10 °C to 60 °C |
| Storage air humidity, non-condensing | 15 % to 80 % |
| MTBF | 250,000 h at 25°C |
| Conformities | CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads) |
| Power supply | |
| Quantity | 1 |
| Type | External |
| Input voltage | 12 VDC |
| Current consumption | 0.3 A |
| Power consumption idle | 1.3 W |
| Power consumption max. | 2.4 W |
| Heat output idle | 1.3 W |
| Heat output max. | 2.4 W |
