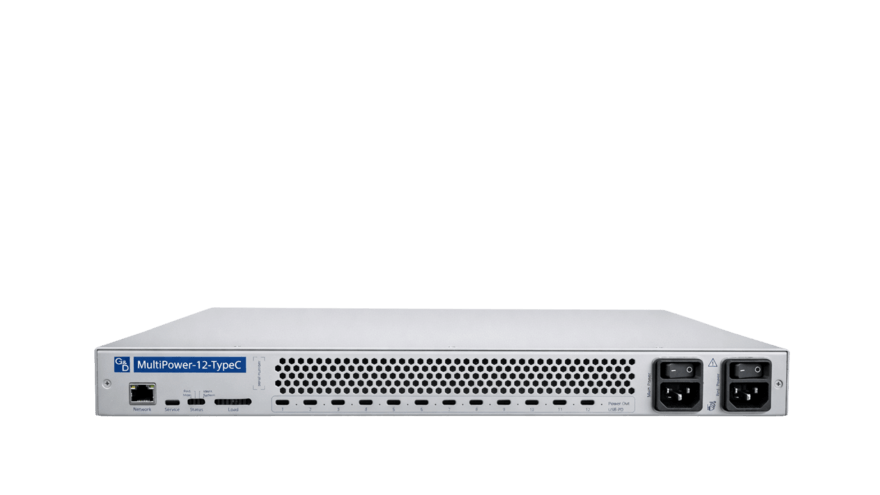

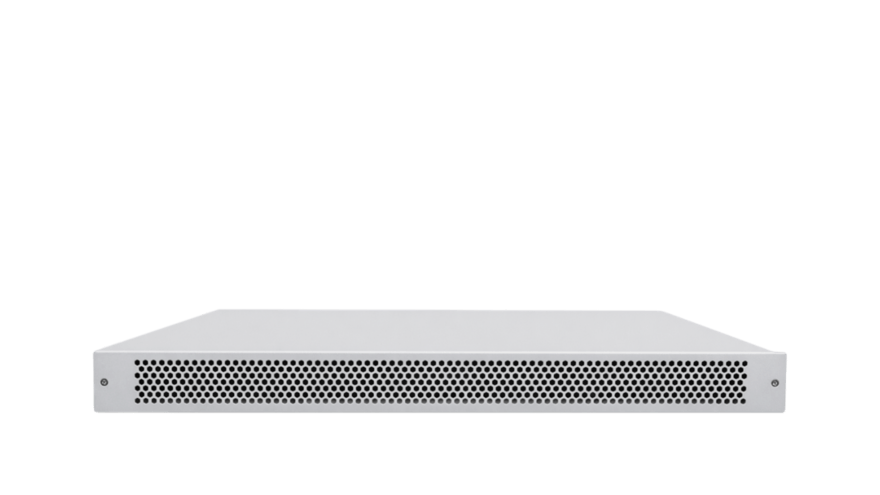

MultiPower-12-TypeC (A4110064)
Contact for Price
Central power supply for up to 12 devices with USB Type-C PD interface. Max. total power 270W, max. 60W per port. Max. 22.5W per port if operating 12 identical devices.
| Brand | Guntermann & Drunck |
|---|
Part number: MultiPower-12-TypeC
Description
Product Details
Device
- New enclosure design featuring an improved ventilation concept, optimized interface layout, and durable surface finishing – delivering greater reliability and long service life, even in demanding environments.
- Up to twelve devices requiring an external power supply are powered centrally – replacing numerous individual power supplies, reducing cabling complexity, and lowering thermal load within the rack.
- The compact 19“ 1U form factor allows seamless integration into standardized rack systems. Ideal for data centers, technical rooms, and installations with limited space. All interfaces, LEDs, and control elements are located on one side of the device – ensuring quick access and straightforward cabling.
- Supports a wide range of USB-C devices with Power Delivery.
The optimal voltage-current combination is automatically negotiated. The device delivers up to 270 W total output, with a maximum of 60 W per port, or up to 22.5 W when using all 12 ports – ensuring maximum flexibility and future-proof usage. - The central power supply unit simplifies procurement, integration, and operation through a standardized power structure. This reduces system complexity, increases operational reliability, and supports long-term scalability.
Warranty
- A 3-year, free of charge product guarantee
- For an additional fee guarantee extension possible
Features
Operation features
- The power supply unit monitors all outputs in real time, reserves capacity as needed, and activates ports only if sufficient energy is available. This enables controlled load distribution, protects against overload, and reduces manual intervention – particularly valuable for automated or hard-to-access installations.
- In the event of a potential overload, ports with higher indices are automatically deactivated to maintain permissible power levels. This built-in safety logic reliably protects the system and connected devices during continuous operation.
- After a reboot, all previously active port states are automatically restored – without manual intervention. Role-based access concepts ensure clear responsibilities for configuration and operation in more complex environments.
- Each port can be individually switched and monitored via the integrated network interface – even across different locations. The web interface enables configuration, status diagnostics, and firmware updates – for minimal response times and maximum operational control.
Technical Specifications
| General | |
|---|---|
| Brand | G&D |
| Product group | Accessories |
| Product Family | MultiPower |
| Country of origin | Germany |
| Network | |
| Quantity | 1 |
| Medium | CAT5 CAT6 CAT7 |
| Data rate | 1 Gbit/s 100 Mbit/s 10 Mbit/s |
| Maintenance | |
| Update via | ConfigPanel (Network) |
| Serviceport settings | 115200bps (8/N/1) |
| Housing | |
| Material | Sheet steel, powder-coated |
| Active cooling (fan) | yes |
| Width ca. | 442 mm |
| Height ca. | 44 mm |
| Depth ca. | 260 mm |
| IP protection class | IP20 |
| Weight ca. | 4.72 kg |
| Operating conditions | |
| Operating environment temperature | 5 °C to 45 °C |
| Operating air humidity, non-condensing | 20 % to 80 % |
| Area of application | Indoor use |
| Maximum operating altitude above sea level | 3,048 m |
| Storage environment temperature | -20 °C to 55 °C |
| Storage air humidity, non-condensing | 15 % to 80 % |
| Conformities | RoHS compliant (see downloads) REACH compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) WEEE (reg. no. DE30763240) CE compliant (see downloads) UKCA compliant (see downloads) |
| Power supply | |
| Quantity | 2 |
| Type | Internal |
| Input voltage | 100-240 VAC |
| Input frequency | 60-50 Hz |
Source: G&D — MultiPower-12-TypeC (A4110064). Verify with manufacturer.
