Overview

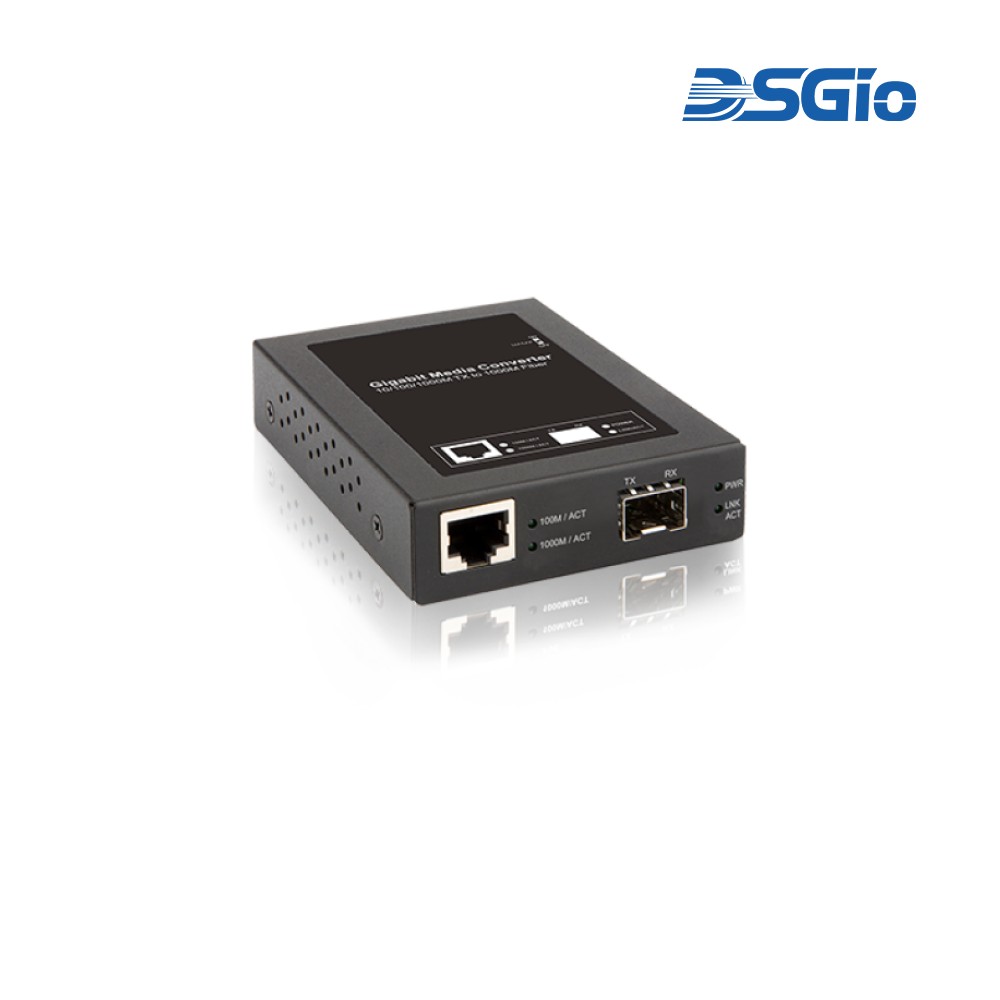

The CMC-GTFX Media Converter Series performs gigabit Ethernet conversion to 1Gbps SFP fiber, supporting IEEE 802.3 standards, auto-negotiation, VLAN tagging, and jumbo frames up to 16KB. It features fanless metal construction, 2W power consumption, and multiple mounting options with surge/ESD protection.
Product Features
- Converts 10/100/1000Base-T copper to 1Gbps SFP fiber
- One RJ45 port and one 1Gbps SFP slot
- Auto-negotiation and automatic MDI/MDI-X cable detection
- Supports 16KB jumbo frames with 384Kb packet buffer
- Fanless metal enclosure with passive cooling
- Desktop, wall-mount, or chassis installation options
- 5-12V DC input at 2W power consumption
- ESD and surge protection
