Overview

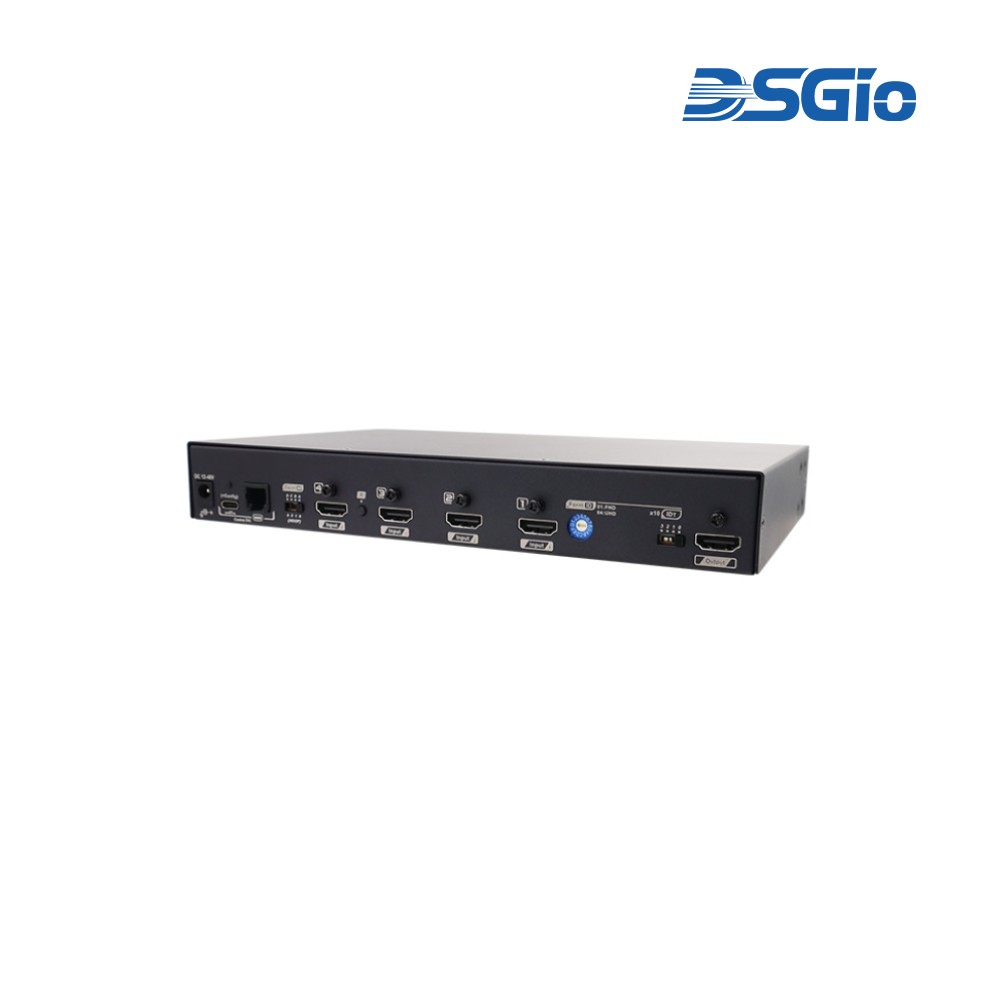

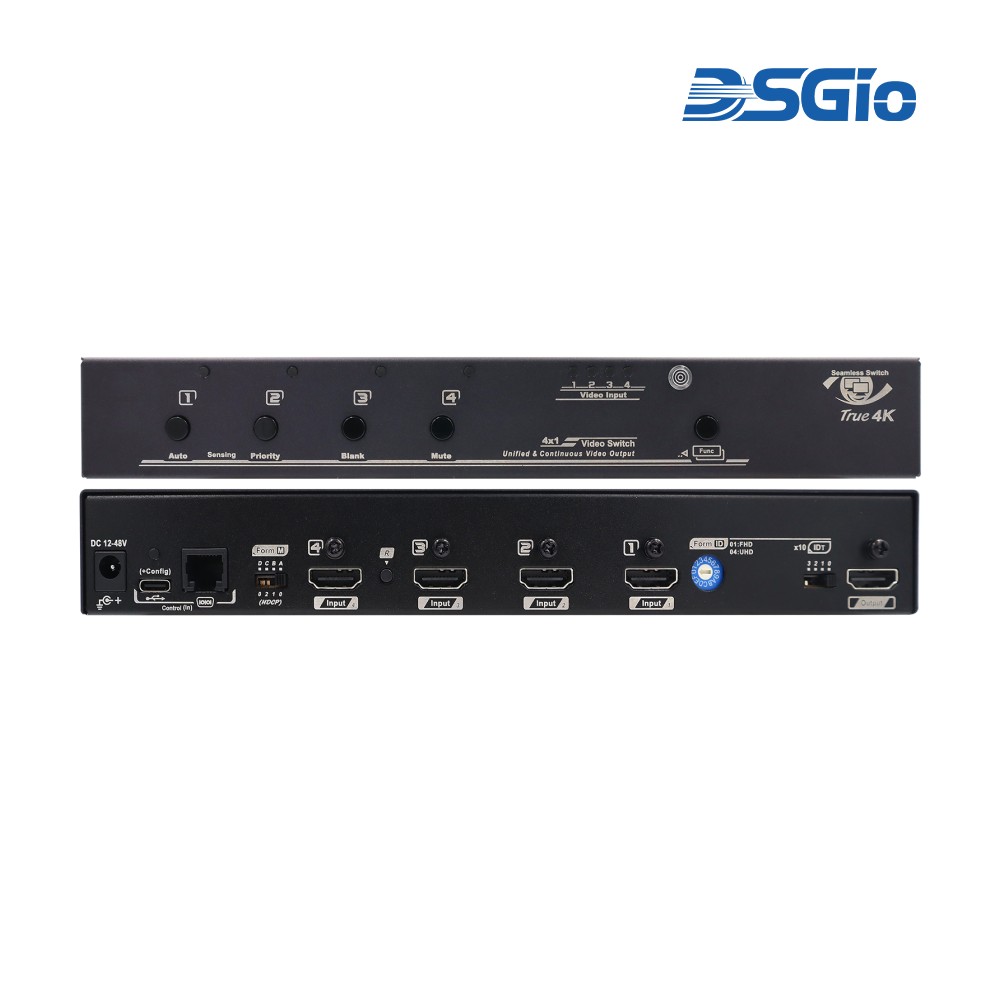

The VSW-H20-4K41 enables switching of 4 HDMI sources to one output device. It provides seamless switching via front panel buttons, IR control, or serial commands without cable disconnection. The device supports 4K@60Hz (4:4:4) with 64 EDID presets optimizing compatibility across 16:9, 21:9, and 32:9 aspect ratios. Special resolutions for ATC, medical, and ultrawide displays are supported alongside a built-in scaler maintaining stable transmission.
Product Features
- 4 sources to 1 display routing
- 64 EDID presets (1 Auto + 63 presets)
- Built-in scaler for multiple aspect ratios
- Three control modes: Manual, Auto, Priority
- Push button, IR remote, RS-232 serial, and USB-C virtual COM control
- HDCP version selection (2.2/1.4/Non-HDCP)
- Video blank and audio mute functions
- Eight selectable baud rates (9600-115200 bps)
