Overview

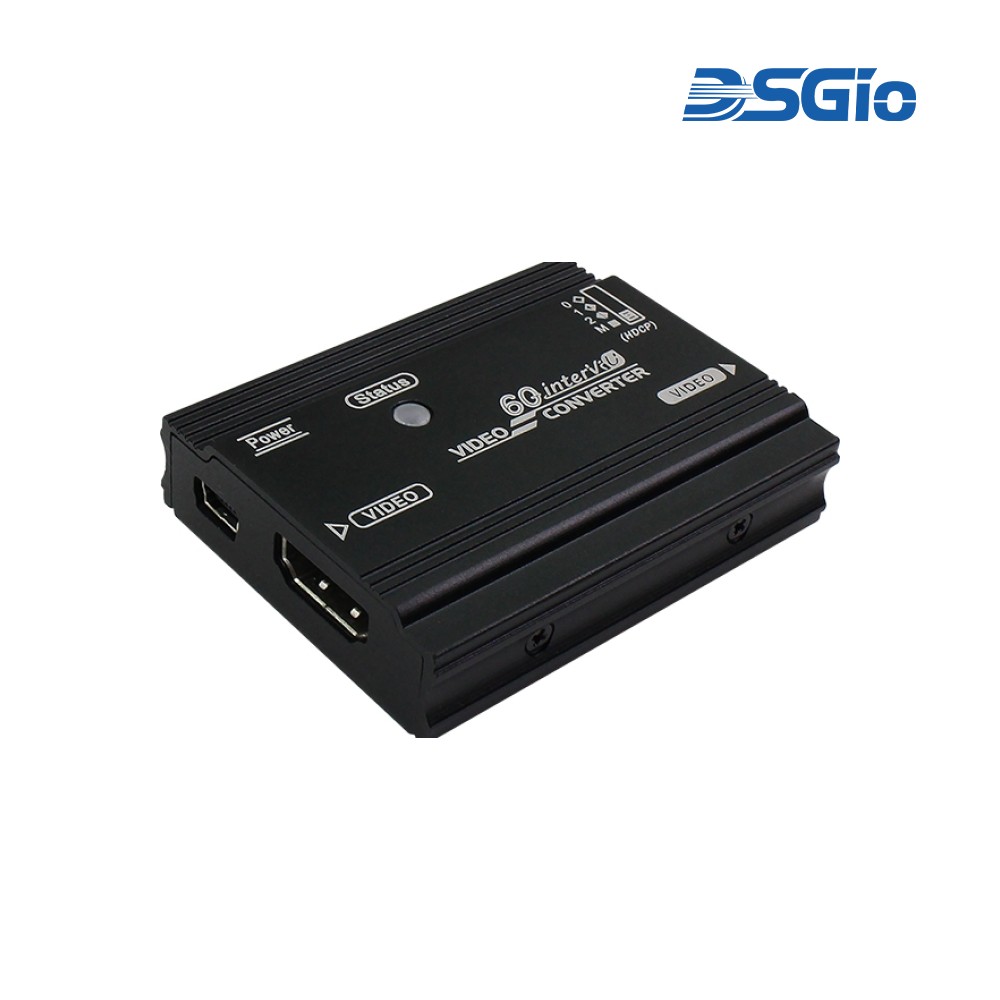

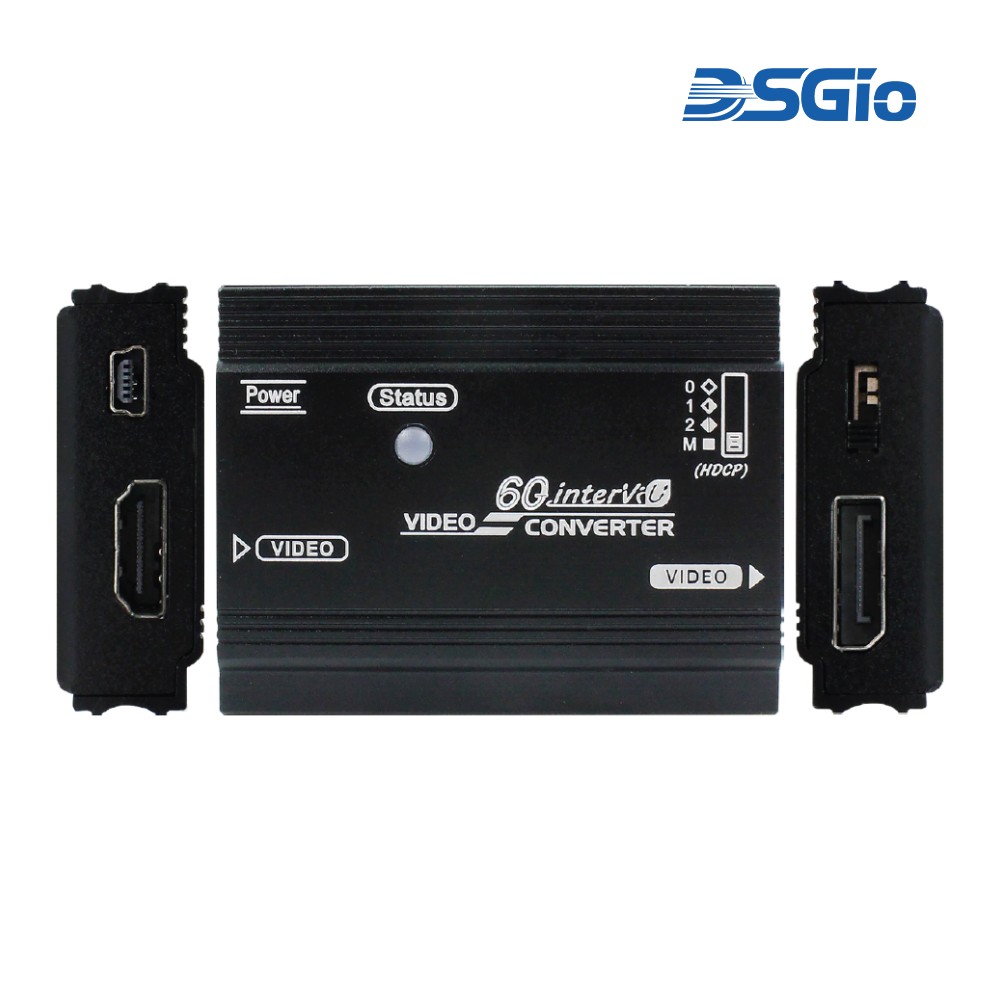

The device transforms HDMI signals into DisplayPort video with up to 4K@60Hz support. Auto-EDID ensures accurate output configuration. An HDCP slide switch provides three modes: Auto, HDCP 1.4, and non-HDCP. The unit is plug-and-play with no software installation required, compliant with HDMI 2.0 and HDCP 1.4 standards.
Product Features
- Conversion up to 4K@60Hz (4:4:4) resolution
- HDMI 2.0 with 18 Gbps total bandwidth

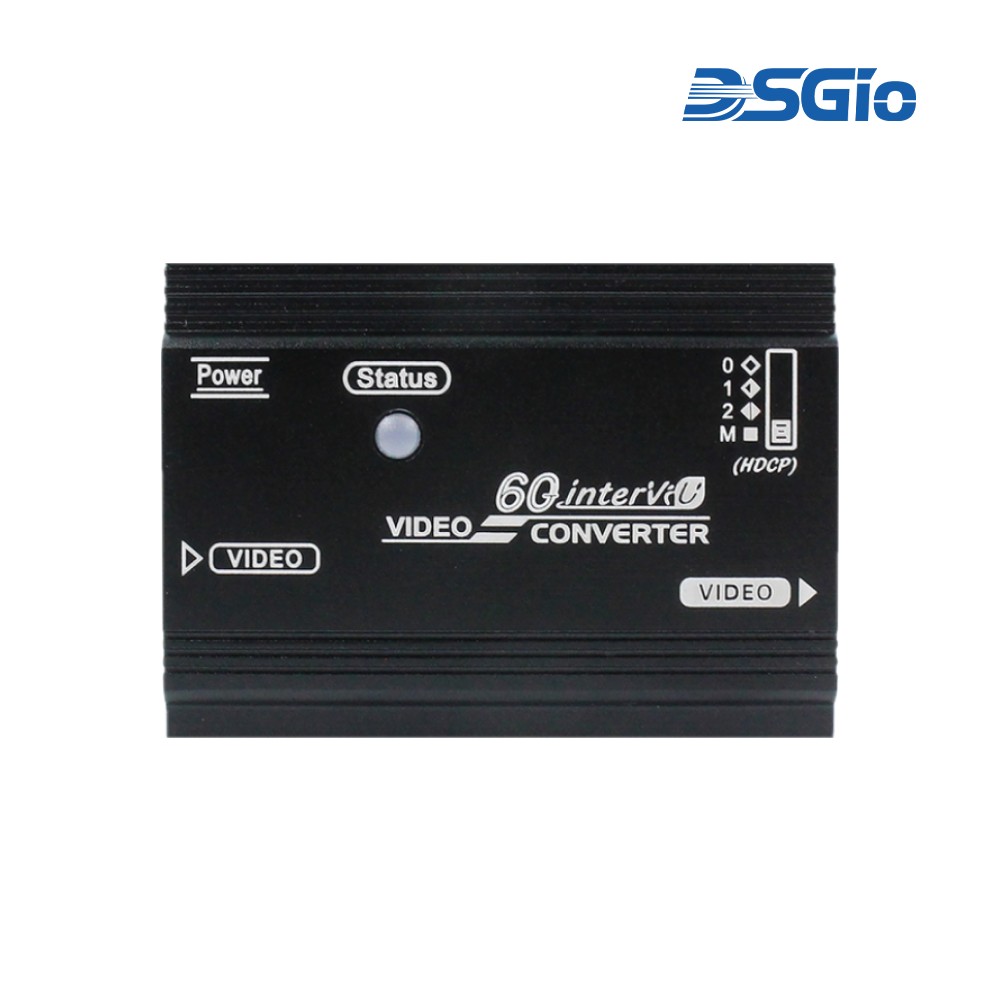

- Selectable HDCP (Auto, 1.4, or disabled)
- Auto-EDID technology for display compatibility
- DisplayPort audio support
- Pixel-to-pixel signal conversion
- Hardware-based (no drivers needed)
- Compact and durable design
- Powered via HDMI port or optional 5V DC input
