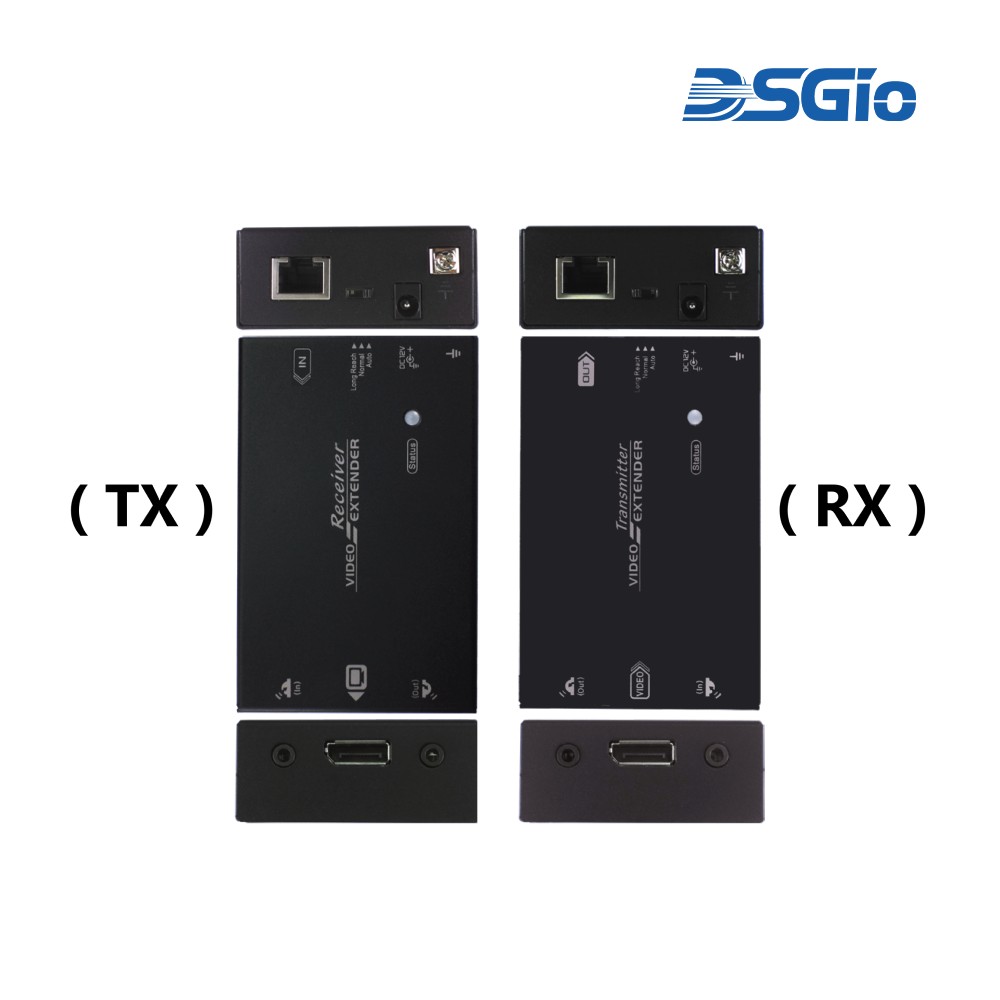

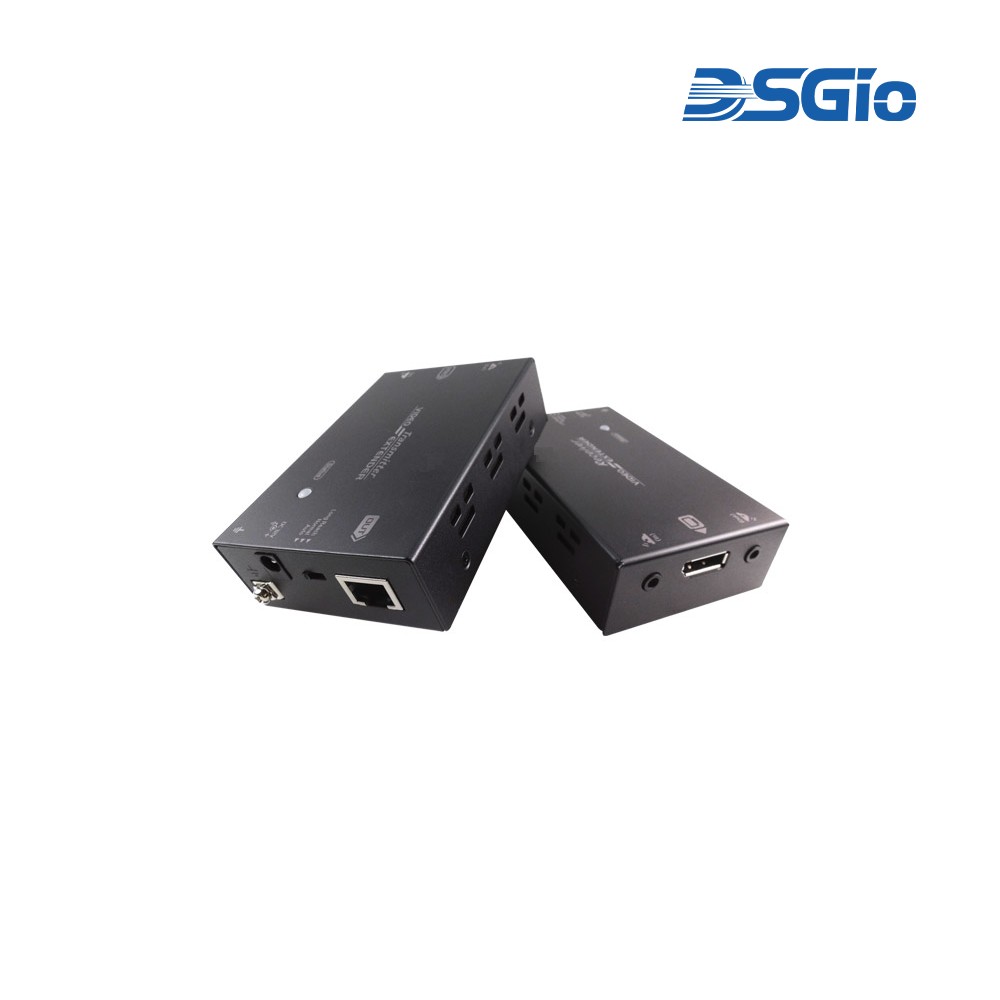

VEX-DHBT-1080LR 4K30 DisplayPort Extender with 2-Way IR, Long Reach, PoE

This DisplayPort extender transmits DisplayPort video and bidirectional IR control signals over a single CATx cable using HDBaseT technology, supporting distances up to 70 meters at 4K@30Hz.

Brand

SKU: VEX-DHBT-1080LR Categories: ,
Description

Technical Specifications

Maximum Resolution4K@30Hz (4:4:4)
Video StandardDisplayPort
HDCP ComplianceHDCP 1.4
Cable TypeCATx (CAT5e/6)
Maximum Distance (Normal, 4K)70m
Maximum Distance (Normal, 1080P)100m
Maximum Distance (Long Reach, 1080P)150m
IRBidirectional, 38-56 kHz
PowerPoC, single power adapter required
ModesNormal, Long Reach, Auto Power Saving
TransmissionUncompressed HDBaseT, low latency

Source: DSGIO — VEX-DHBT-1080LR 4K30 DisplayPort Extender with 2-Way IR, Long Reach, PoE. Verify with manufacturer.
