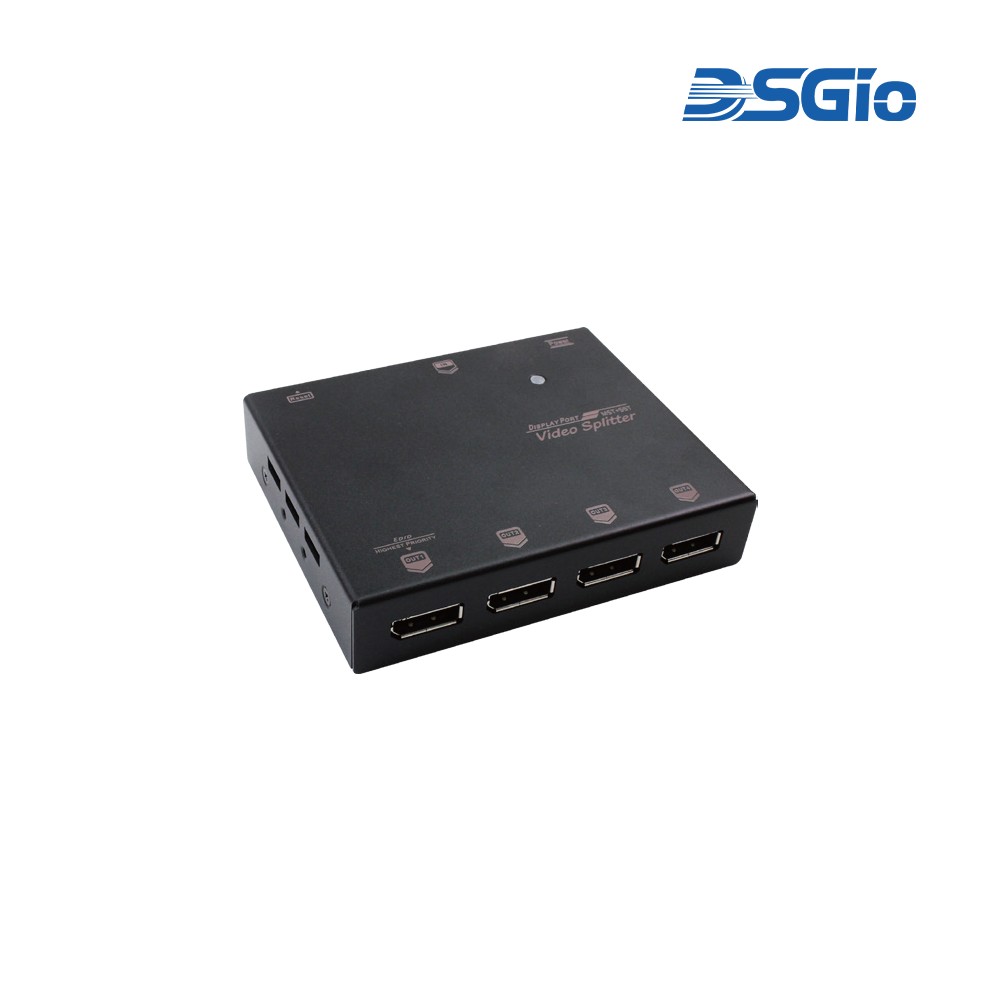

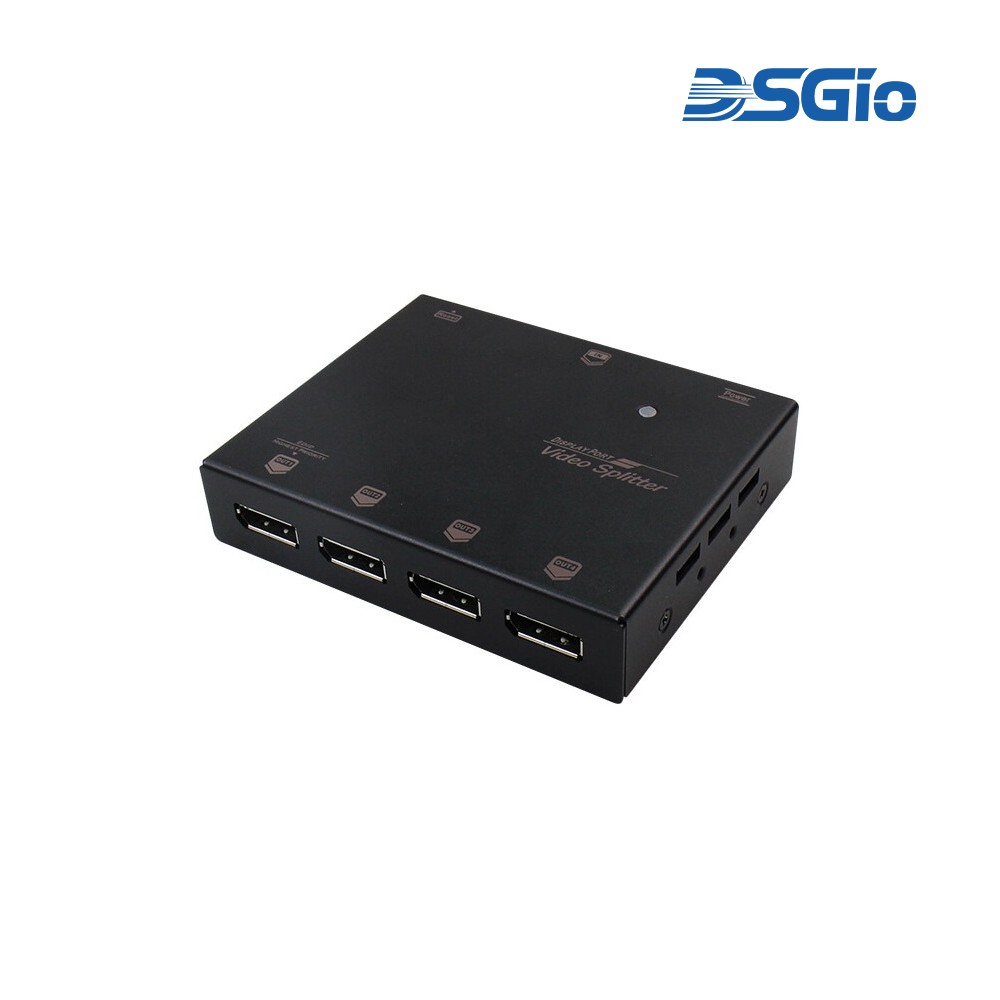

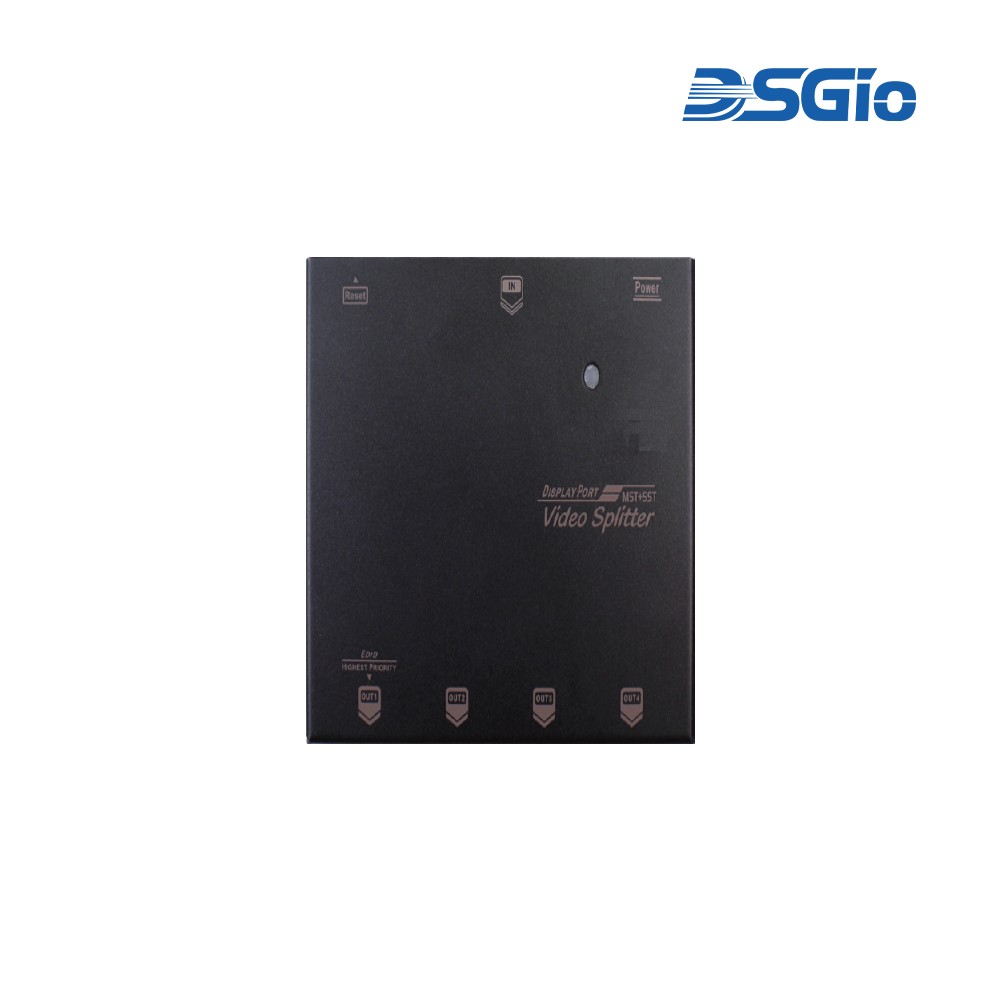

VSP-4KD-1D4D 4K60 DisplayPort Splitter 1-In 4-Out

A 4-port DisplayPort splitter designed to duplicate one DisplayPort input to four simultaneous DisplayPort outputs, supporting video resolutions up to 4K at 60 Hz.

Brand

SKU: VSP-4KD-1D4D Category:
Description

Overview

The VSP-4KD-1D4D distributes one DisplayPort input to four monitors with automatic EDID learning and copy functions. It supports Dual-Mode DisplayPort (DP++) enabling compatibility with DisplayPort, DVI, and HDMI monitors through passive cable adapters.

Product Features

  • DisplayPort 1.3 and HDCP 1.4 compliant
  • Supports 4K UHD @ 60Hz (3840×2160), QHD, and FHD resolutions
  • Supports over 100 popular display resolutions
  • Accurate digital signal reproduction without attenuation or distortion
  • DP++ output ports enable HDMI output via passive adapter
  • Automatic EDID configuration with integrated EDID and HDCP handling
