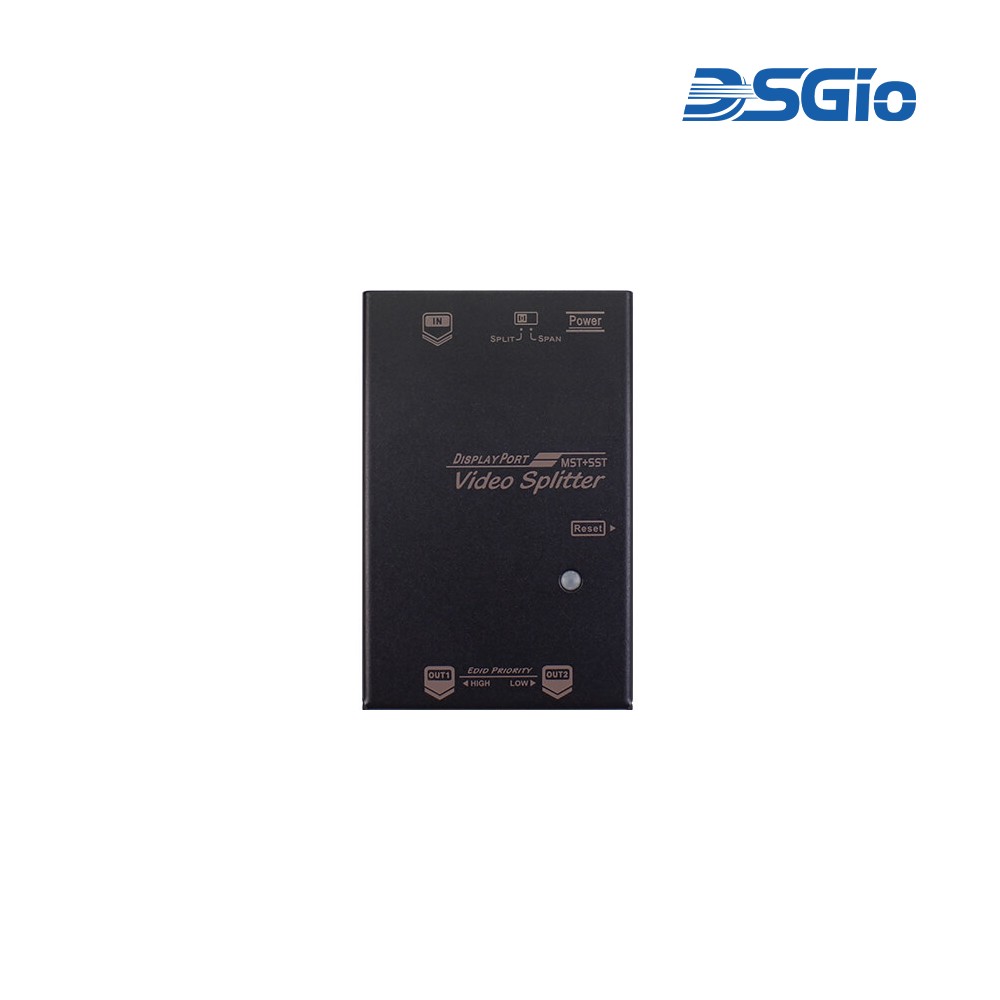

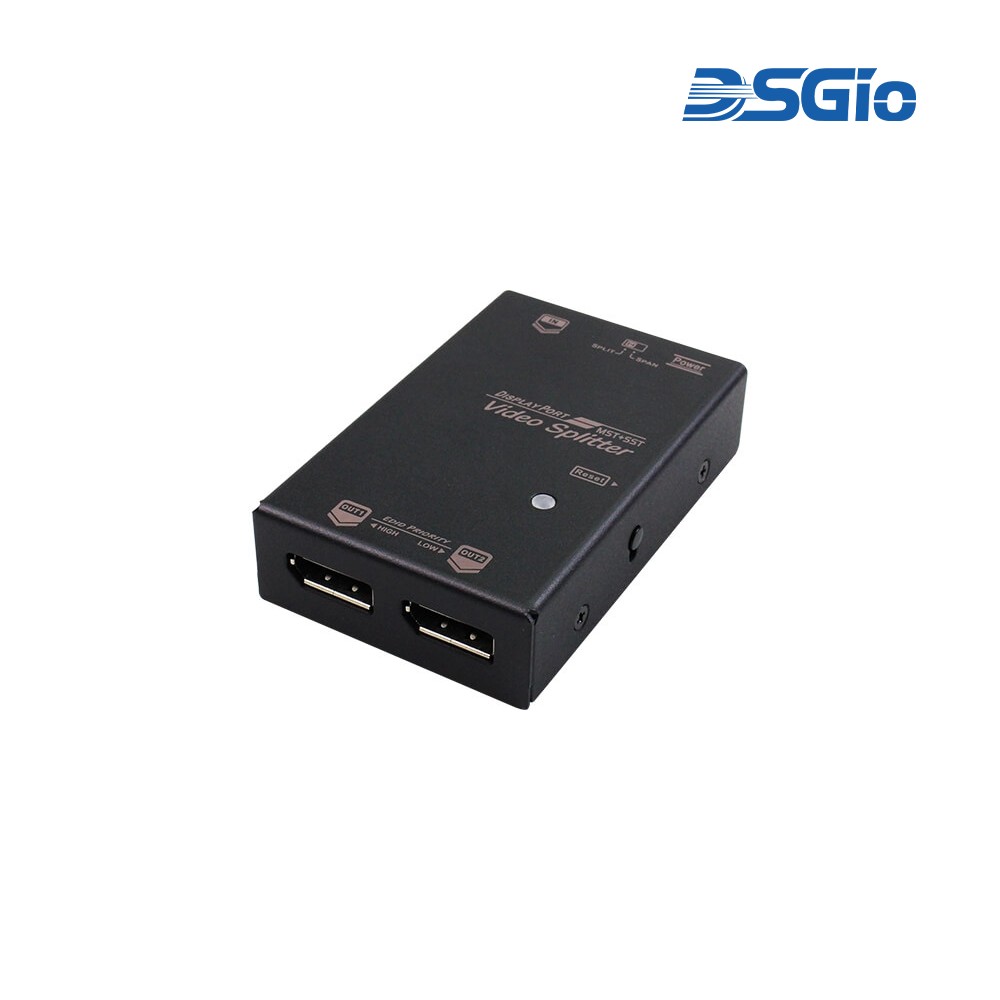

VSP-4KD-1D2D 4K60 DisplayPort Splitter 1-In 2-Out with MST

A 2-port DisplayPort splitter featuring one DisplayPort input and two DisplayPort outputs, supporting both video split mode and DisplayPort MST Span mode.

Brand

SKU: VSP-4KD-1D2D Category:
Description

Overview

A two-port 4K DisplayPort video splitter that distributes signals to dual monitors. The device features EDID learning capabilities and automatic EDID copy functions for accurate display negotiation. It supports DisplayPort, DVI, and HDMI monitors through DP++ dual-mode outputs with appropriate adapters. The unit includes DisplayPort 1.2 Multi-Stream Transport (MST) functionality, allowing single-source transmission across multiple video streams.

Product Features

  • DisplayPort 1.3 compliant; HDCP 1.4 compliant
  • Supports up to 4K UHD @ 60Hz (3840×2160) and over 100 popular display resolutions
  • DP++ output ports enabling passive HDMI/DVI conversion
  • Automatic EDID configuration with integrated HDCP handling
  • DisplayPort MST (Span function) support for extended desktop scenarios
  • Metal enclosure with DC 5V mini-USB power input
