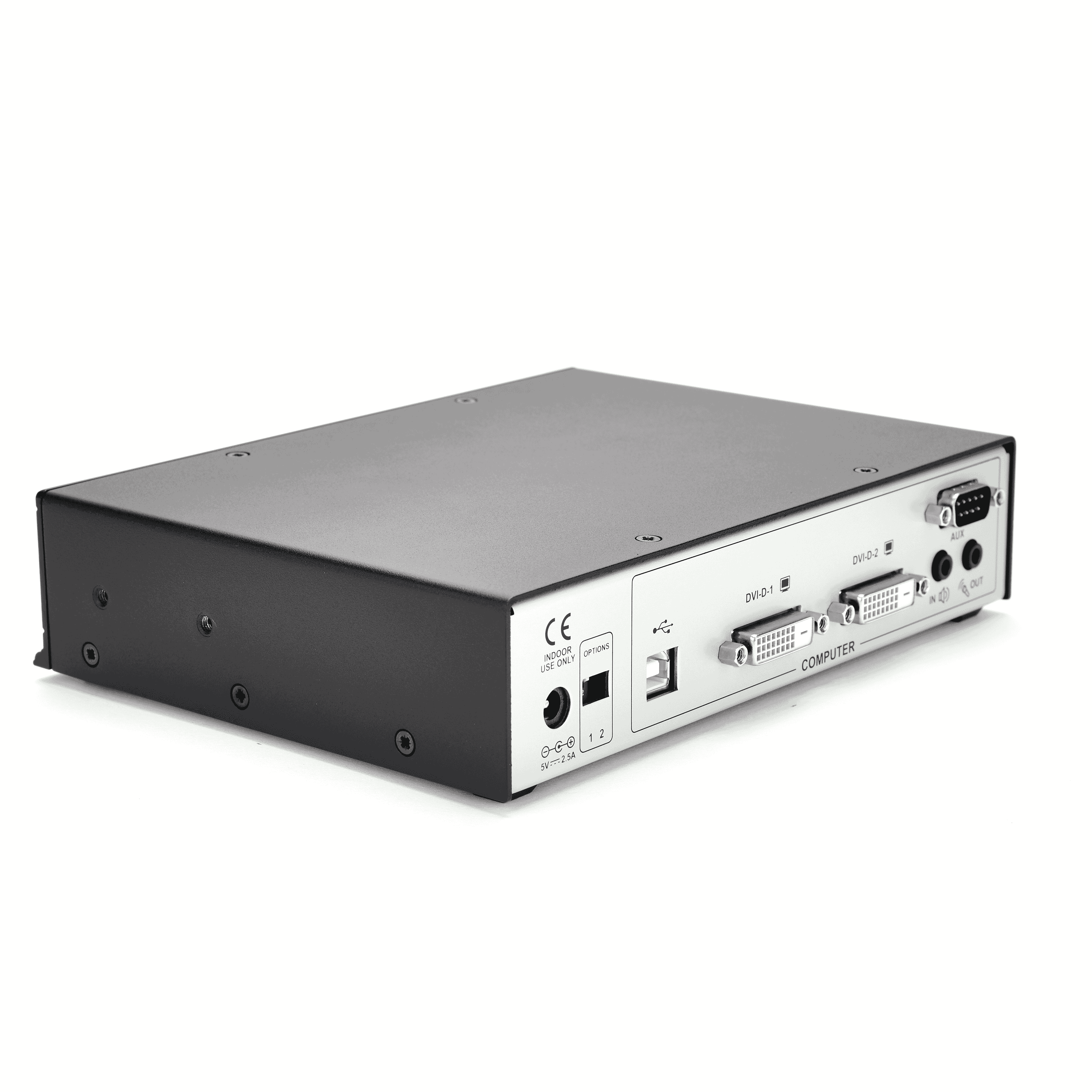

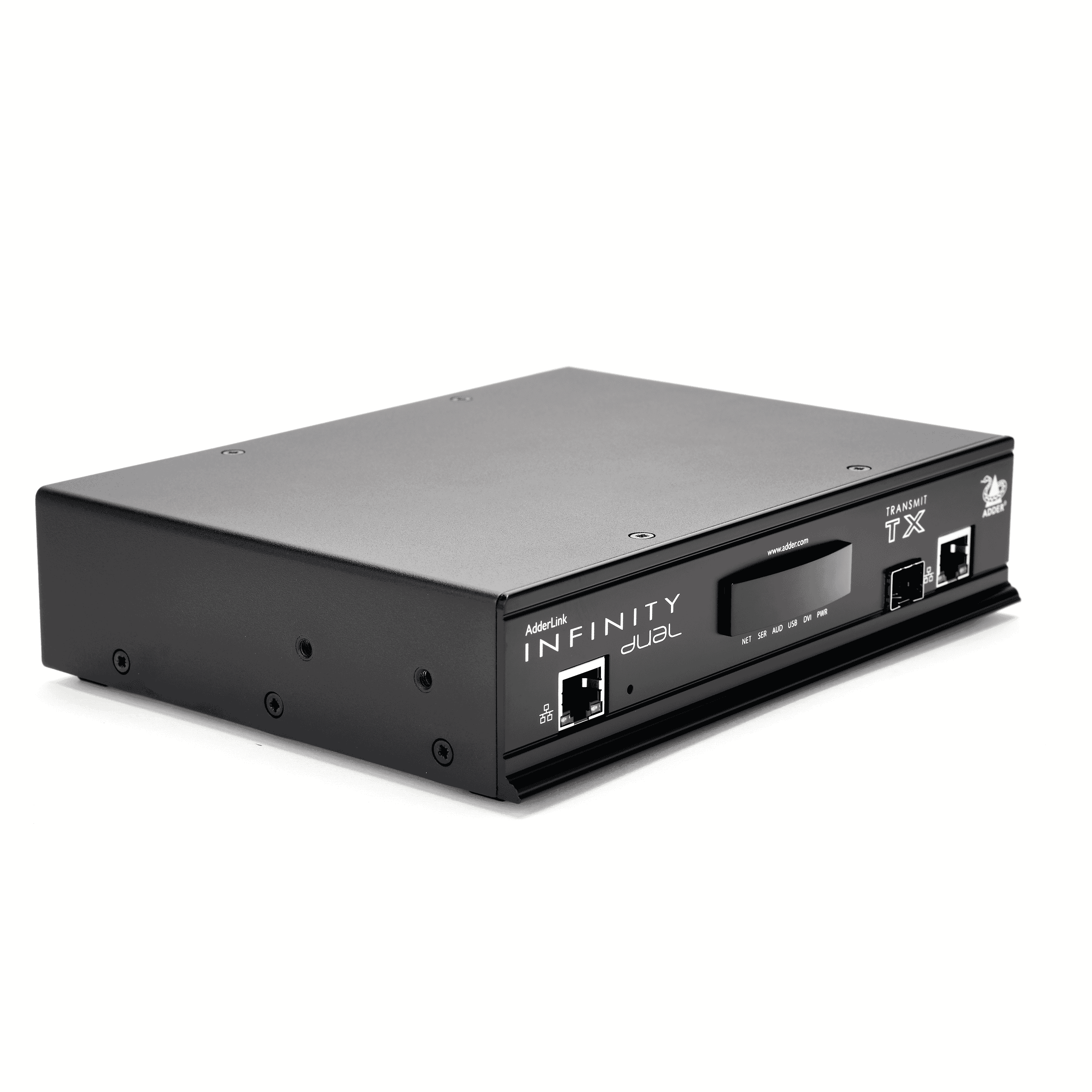

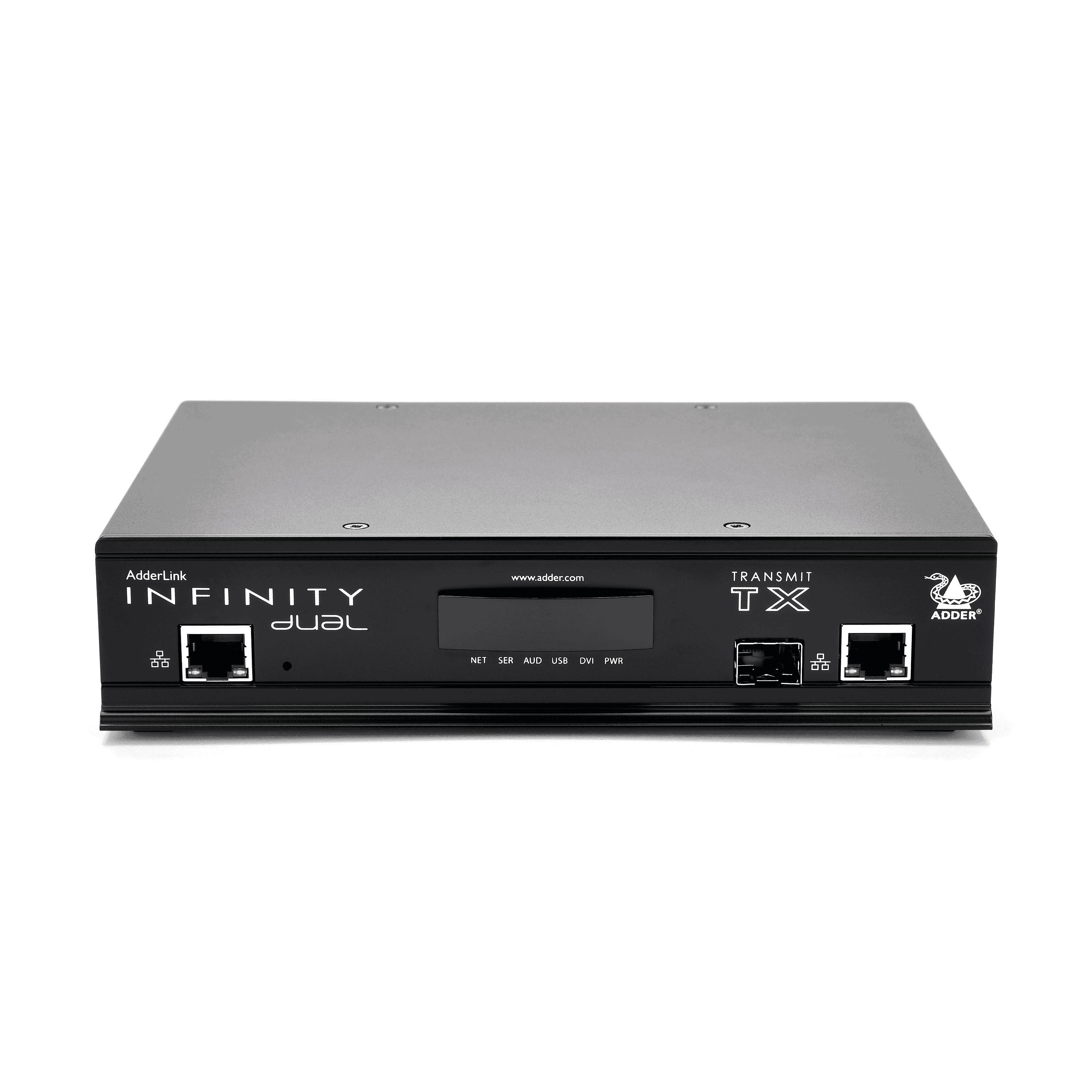

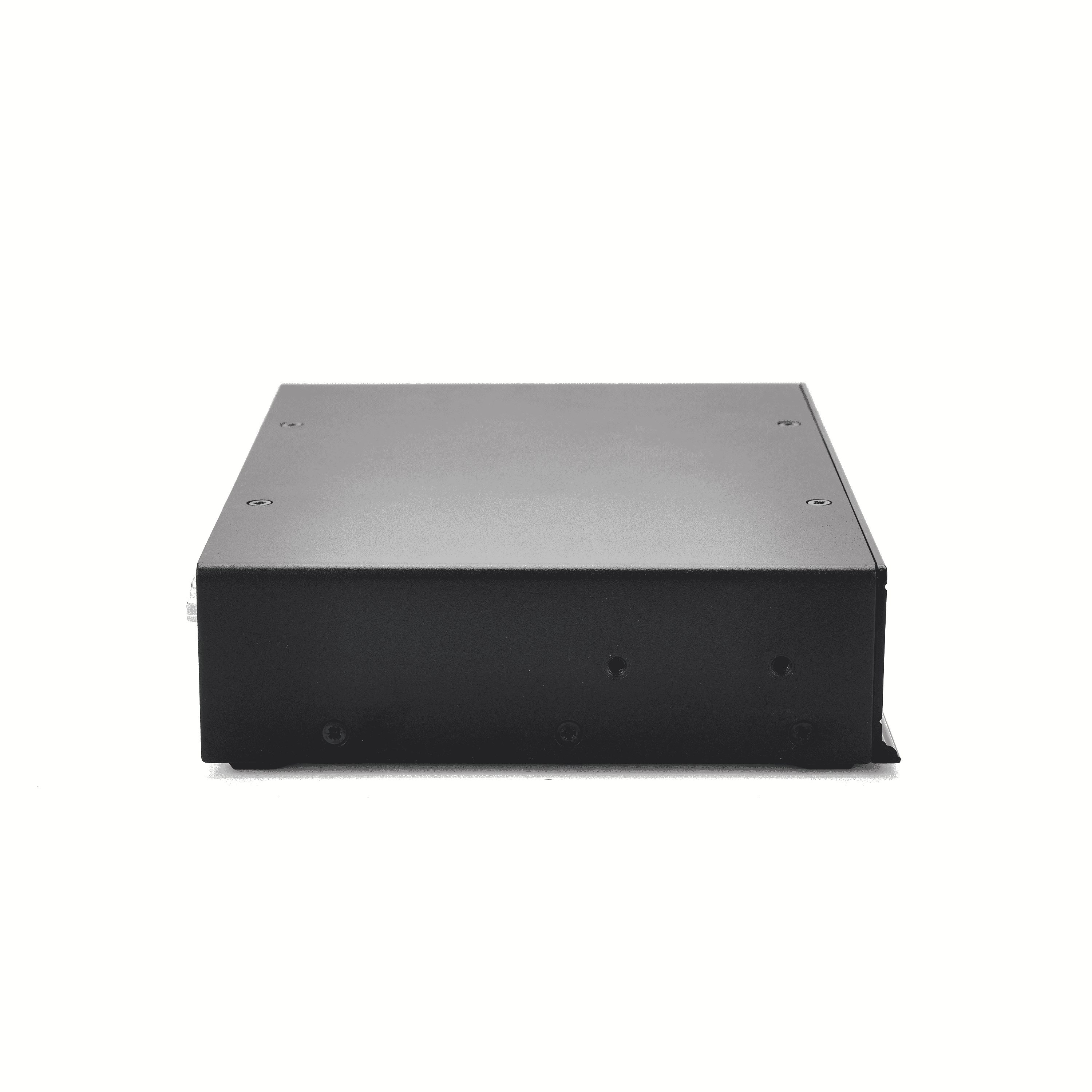

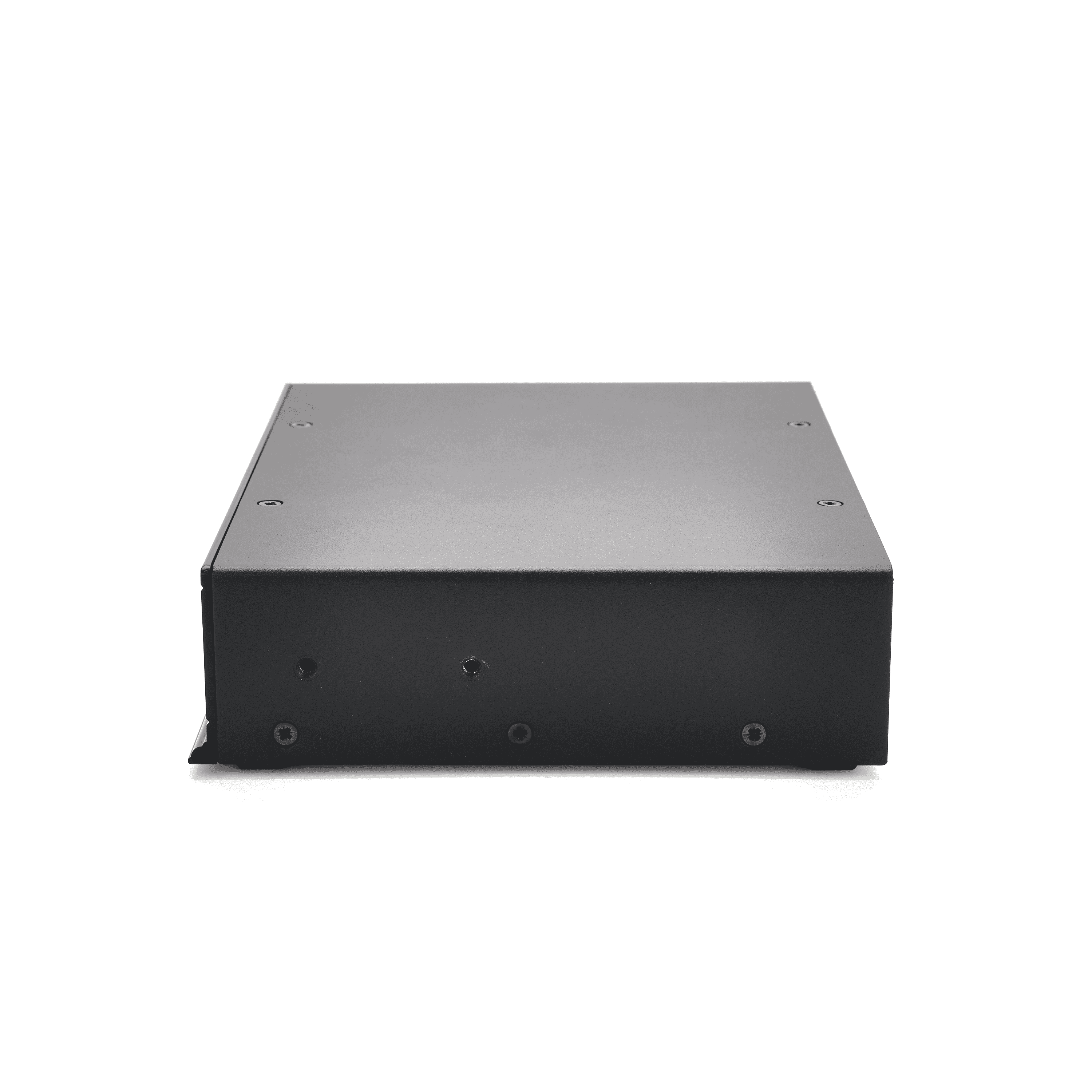

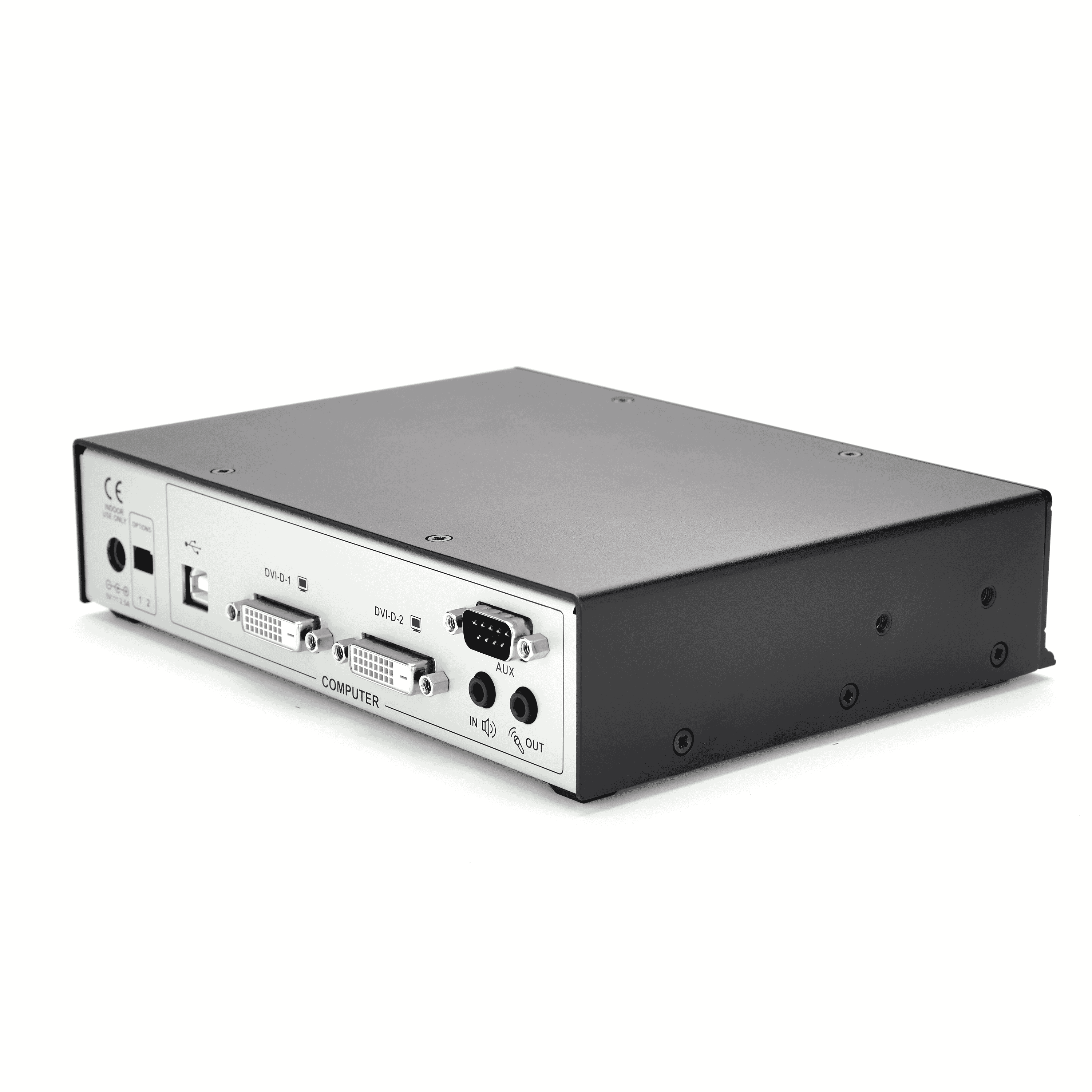

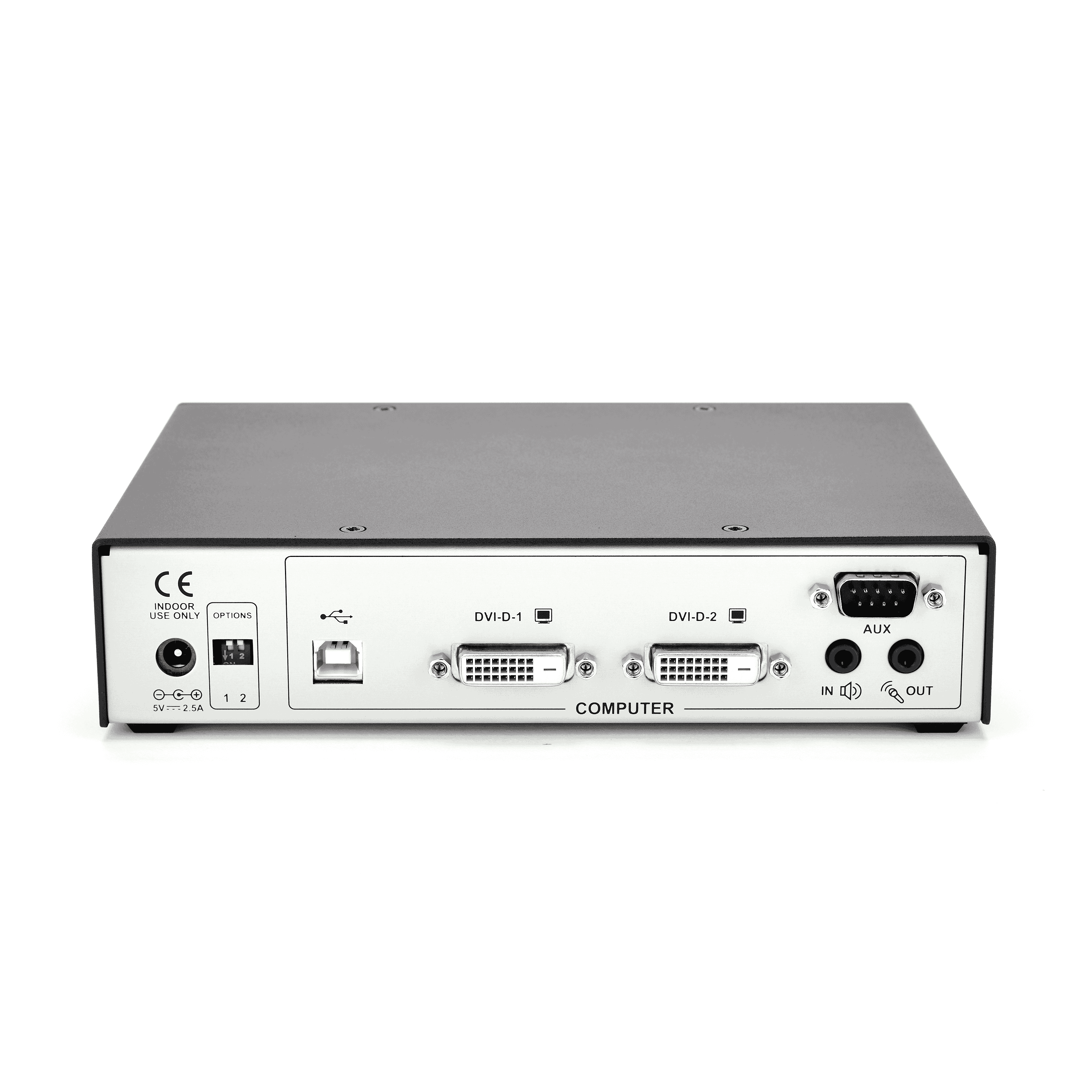

Adder AdderLink INFINITY Dual Extender Transmitter (ALIF2002T)
Contact for Price
ADDERLink® INFINITY Dual 2002 – ALIF2002T – A dual-link, dual-head digital video and USB fanless KVM extender that runs over a single cable on your standard IP network. Available with fiber access modules.
| Brand | Adder |
|---|
Part number: ALIF2002T
Description
ADDERLink® INFINITY Dual 2002 – ALIF2002T – A dual-link, dual-head digital video and USB fanless KVM extender that runs over a single cable on your standard IP network. Available with fiber access modules.
Technical Specifications
| Video | Dual Link DVI-D or Single Link DVI-D |
| Maximum Resolution (1 Screen) | 2560 x 1600 @ 60Hz |
| Maximum Resolution (2 Screens) | 1920 x 1200 @ 60Hz |
| Colour Depth | 8 bpc |
| Network Bandwidth | 1GbE |
| Network Ports | 1x RJ45 (8p8c), 1x SFP cage |
| Extension Medium | CATx cable or fibre optic |
| USB | USB 2.0 (Class Control); HID, graphics tablets, mass storage |
| Audio | Analog stereo, bi-directional, 16-bit / 48kHz, 3.5mm jacks |
| Serial | 1x RS232, max 115,200 baud |
| Operating Temperature | 0–40°C (32–104°F) |
| Power Supply | 5V DC, typical 12W, max 20W, fanless |
| Dimensions | 198mm W × 44mm H × 150mm D |
| Weight | 1.1kg (2.4lb) |
| MTBF | 500,000 hours (Telcordia SR332 @ 55°C) |
| Certifications | CE, cULus (E476334), FCC, ICES, RCM, UKCA |
| Compliance | EU REACH, UK REACH, China RoHS, Cal Prop 65 |
| OS Support | All known operating systems |
Source: Adder Technology — ADDERLink INFINITY Dual 2002. Verify with manufacturer.
