AdderView RackDrawer 17" Screen, Integrated 16 port CatX5000IP KVM Switch UK Keyboard. (RD1716QIPXX)
Contact for Price
ADDERView® RDX 1000 — 1U rack-mounted KVM drawer with 17″ Samsung SXGA LCD panel. Integrated 16-port CatX5000IP KVM switch supporting local and remote control of up to 16 computers, expandable to 256 via CATx cascade. Integrated CATx extender for remote access up to 300m.
| Brand | Adder |
|---|
Part number: RD1716QIPXX
Description
ADDERView® RDX 1000 — A 1U rack-mounted keyboard drawer solution for local and remote management of servers. Features a Samsung SXGA LCD panel with touchpad control and supports direct control of 16 computers, expandable to 256 using CATx 1000 switches.
Integrated KVM Switch and CATx Extender

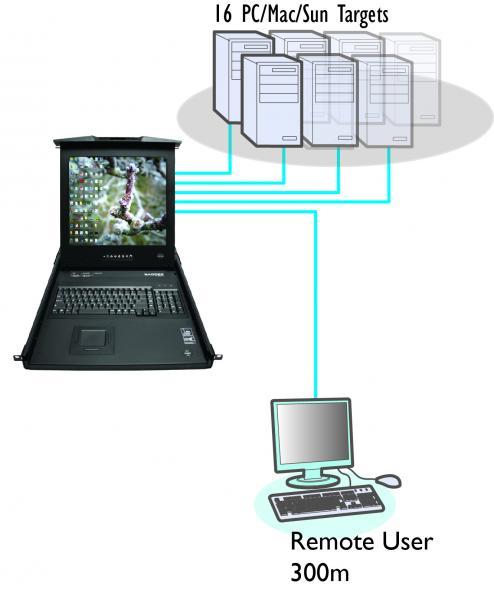

One local and one remote user share access to 16 computers simultaneously. The integrated CATx extender supports remote control up to 300m via CATx cable, eliminating the need for a separate remote access unit.
Multi-Platform and Expandable
Supports PS/2, USB, and Sun keyboard/mouse interfaces. Cascade configuration allows expansion to up to 256 computers using additional CATx 1000 switches.
High-Quality Video
Video support up to 1920×1200 resolution with DDC emulation for full display compatibility. Supports standard PC, Sun, and Mac video modes.
Secure and Reliable Rack Integration
Locking power supply for secure rack environments. Flash-upgradeable Computer Access Modules (CAMs) ensure the system can be kept current. Integrated RS232 port for external device control.
Flexible Keyboard Options
Multiple keyboard language options available. Dimensions: 442mm W × 44mm H × 630mm D (1U). CE, FCC and UKCA approved.
Technical Specifications
| Display | 17-inch (RD1716) or 19-inch (RD1916) Samsung SXGA TFT LCD |
| Panel Resolution | 1280 x 1024 |
| Maximum Video Resolution | Up to 1920 x 1200 |
| Video Modes | PC, Sun, and Mac |
| Computer Ports | 16 CATx (RJ45) integrated KVM switch |
| Expansion | Up to 256 computers via cascading CATx 1000 switches |
| Remote User Port | 1x CATx RJ45 |
| KVM Switch Type | CATx 1000 (XX models) or CATxIP 5000 (QIP models) |
| Pointing Device | Touch-pad |
| Serial | 1x DB9 (RS232 power switching/sync) |
| Operating Temperature | 0–35°C |
| Power Supply | 100–240 VAC 0.5A 50/60Hz, 12V DC 5A |
| Dimensions | 442mm W × 44mm H × 630mm D (1U rack mount) |
| Weight | 13kg (RD1716); 13.7kg (RD1916) |
| Certifications | CE, FCC, UKCA |
Source: Adder Technology — ADDERView RDX Rack Drawer. Verify with manufacturer.
