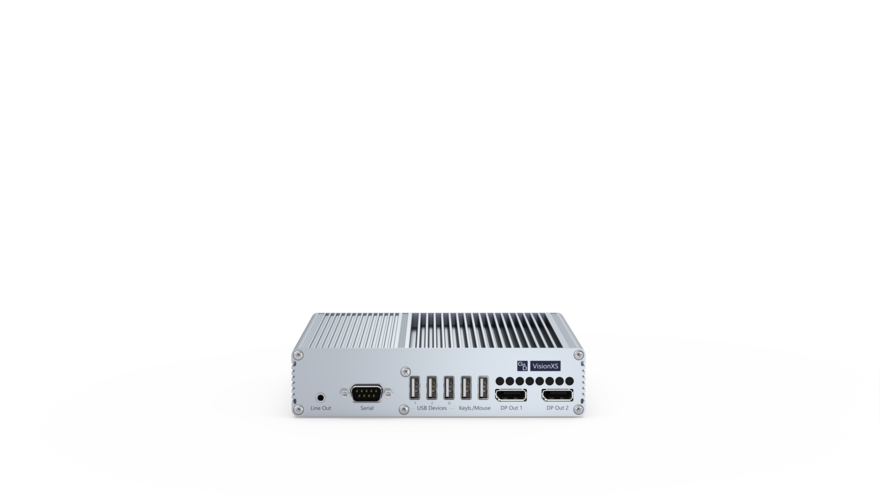

VisionXS-CON-F(S)-DP-HR-DH-AR-DT (A1120475)

Features

Security features

• Bootloader, operating system, and firmware form a “Trusted Computing Platform” with automatic integrity checks during system startup

• Integrated Trusted Platform Module (TPM) protects all access and configuration data from being spied on or tampered with by third parties

• Console modules do not store security-relevant information such as login credentials, which could be extracted in the event of device loss

• Early detection of security incidents or unusual activities through continuous monitoring via Syslog, monitoring, and SNMP

• Comprehensive rights management and user administration, allowing precise control over which user can access which resources
• Option for activatable access protection (default operating mode in matrix systems), in which authentication is required before accessing computer sources

• Support for external directory services (Active Directory, Radius, LDAP) to meet company security policies

• To comply with individual password policies and improve security, password complexity can be configured system-wide

• Configurable login options, such as displaying terms of use or setting the maximum acceptable number of failed login attempts, can enhance system security

• Auto Backup Function: Automates backups at user-defined intervals and replaces manual intervention – ensuring reliable, timely data protection without the need for continuous monitoring

• Freeze function: If the video signal is lost, the last displayed image is frozen and highlighted with a colored frame and timer

• 2-Factor-Authentication (2FA) – is integrated by default in KVM extenders and enhances security by requiring a second, possession-based factor during user authentication:
  • The traditional password authentication is combined with a time-limited, single-use code (Time-Based-One-Time-Password – TOTP)
  • You can choose between using the internal authentication server provided in the device or an external directory service
  • Authenticator apps or hardware token can be used
  • This additional layer of protection prevents unauthorized access and ensures the highest level of security, particularly in sensitive IT environments

Operation features

• Ready for operation out of the box, no additional configuration required

• Permanent keyboard/mouse emulation ensures a stable system

• Compatibility with special USB-HID input devices

• Operation via multilingual on-screen display (OSD) and hotkeys

• Configuration and update via the multilingual HTML5 web interface “Config Panel 21” (Java-free)

• Support of DDC/CI (Display Data Channel / Command Interface) to enable centralized software-side control of monitor settings such as brightness
