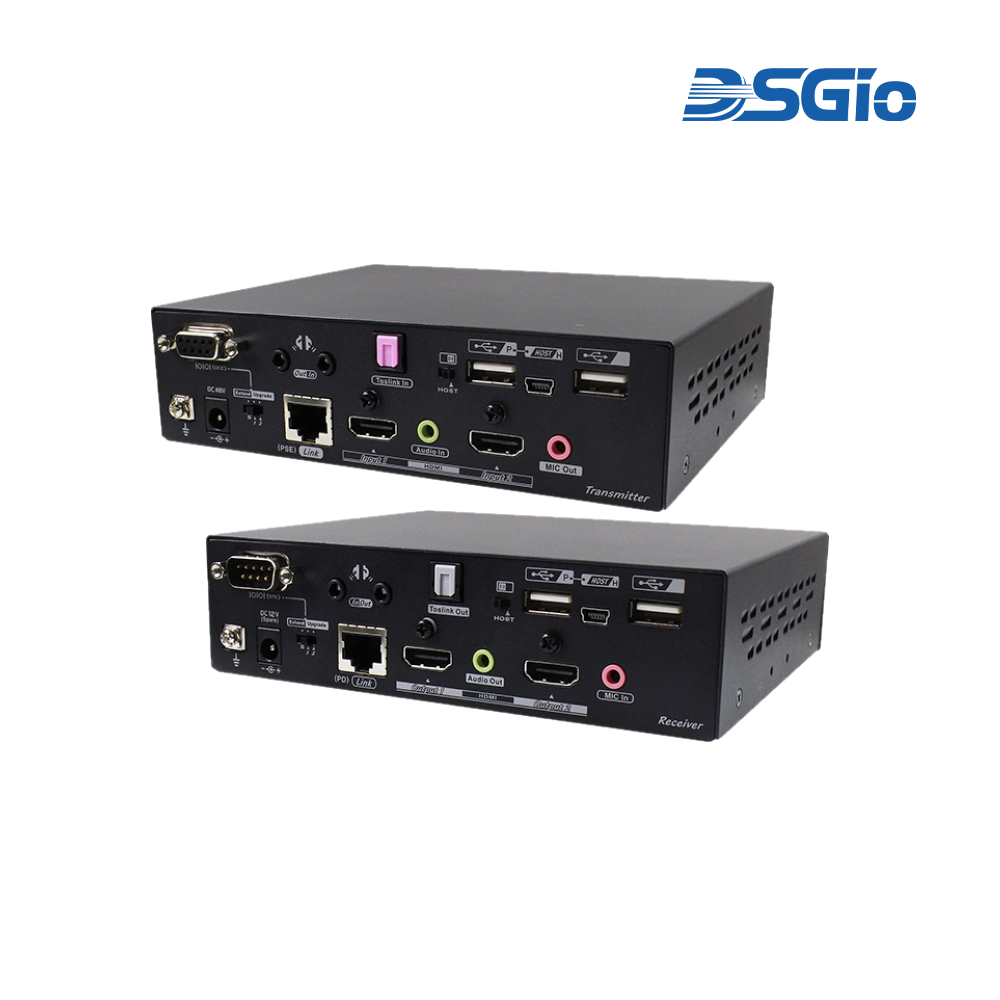

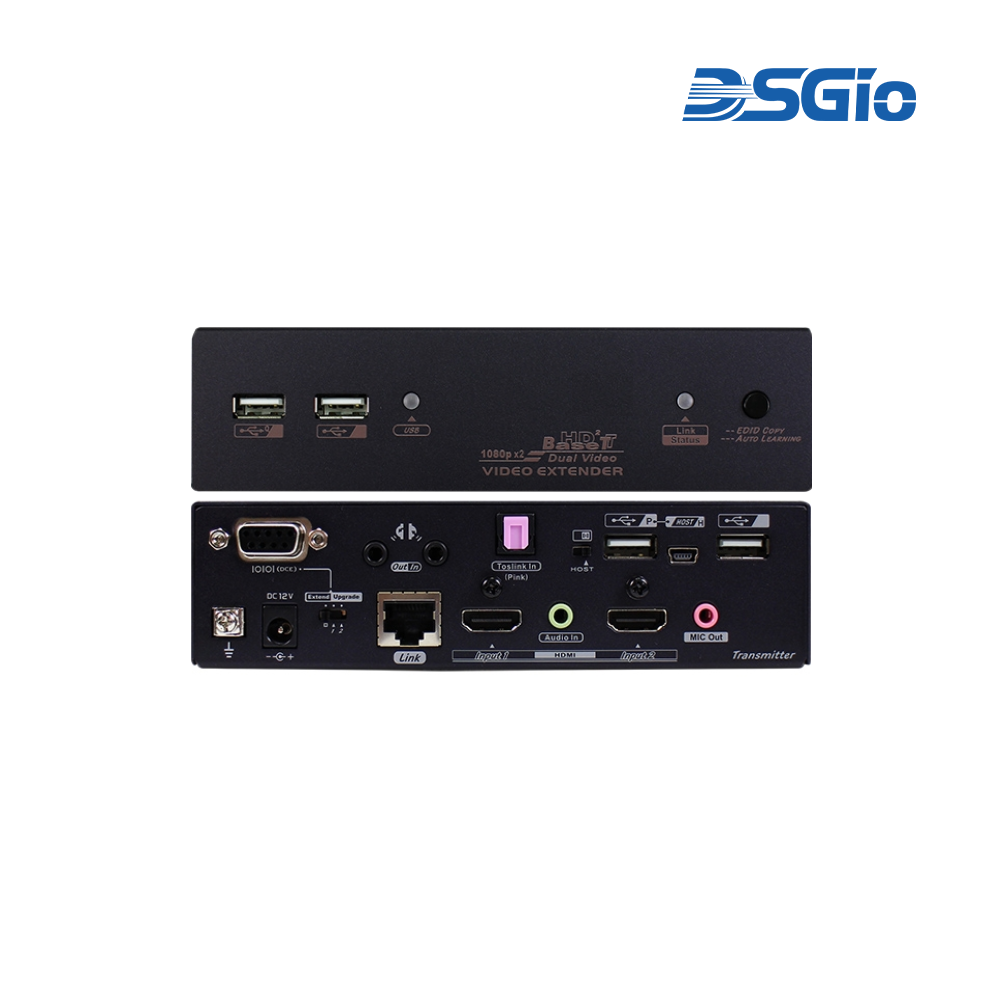

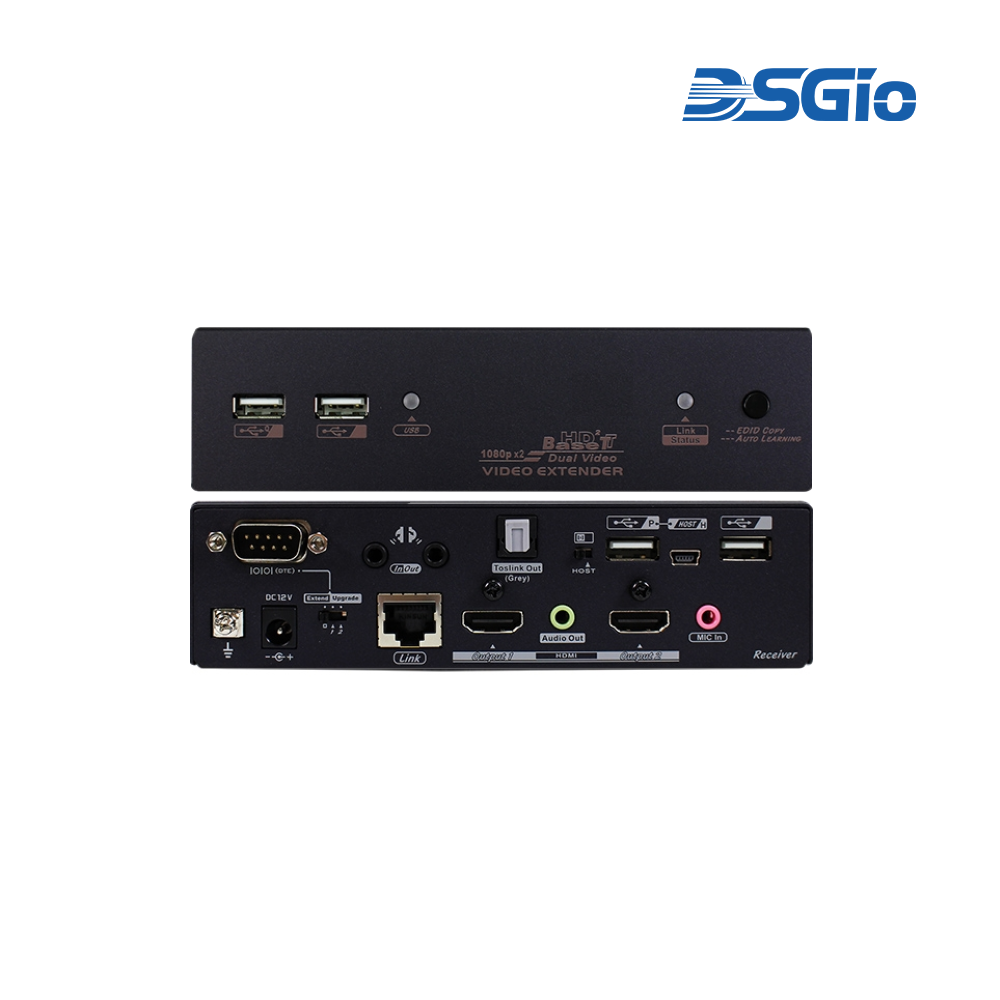

KXF-HBT-DH90 1080P Dual Head HDMI KVM Extender over Single CATx

The Dual Head HDMI KVM Extender provides reliable remote access to a dual-monitor workstation over a single CATx cable, extending signals up to 90 meters (295 feet).

Brand

SKU: KXF-HBT-DH90 Category:
Description

Technical Specifications

Product TypeDual Head HDMI KVM Extender
VideoDual 1080P HDMI
TechnologyHDBaseT 2.0 uncompressed
Cable TypeSingle CATx
Maximum Distance90m (295ft)
USBUSB 2.0, 4 ports per unit (2 front, 2 rear); USB OTG host selection
AudioBidirectional stereo + Toslink SPDIF digital audio
IRBidirectional, 38-56 kHz
SerialRS-232 full-duplex
EDIDAuto/Copy support
ComplianceHDR and HDCP

Source: DSGIO — KXF-HBT-DH90 1080P Dual Head HDMI KVM Extender over Single CATx. Verify with manufacturer.
