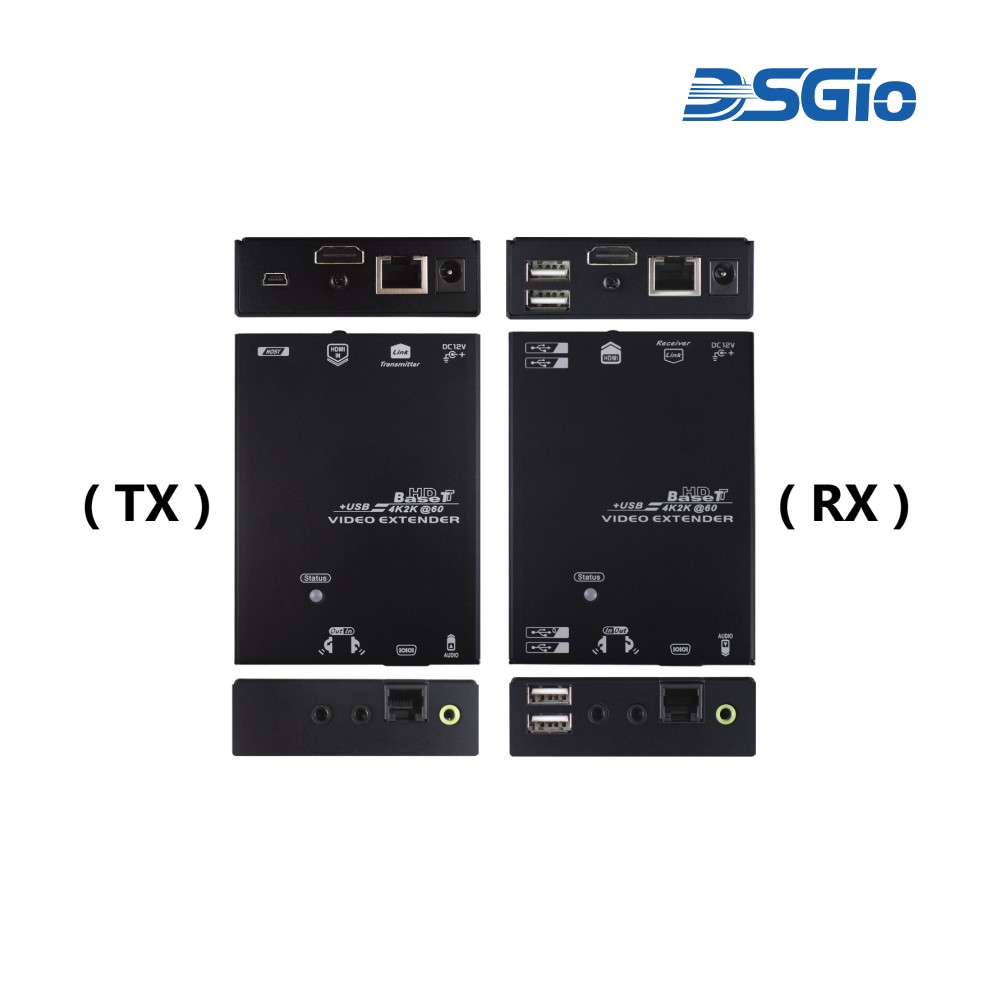

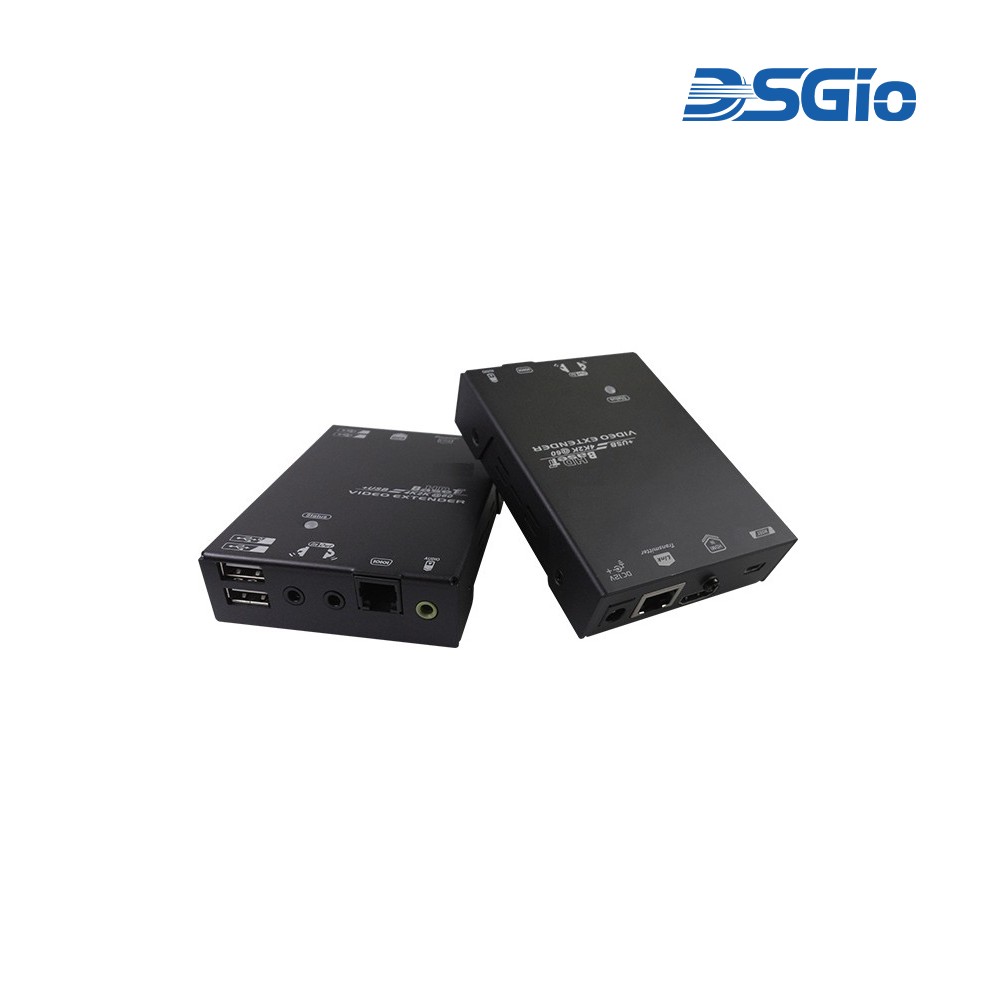

KEX-HBT-SH100 1080P HDMI KVM Extender over CATx with SPK Out, 2-Way IR

Contact for Price

This HDMI extender enables remote access to an HDMI source over a single CATx cable, supporting transmission distances of up to 90 meters at 4K or 100 meters at 1080p.

Brand

SKU: KEX-HBT-SH100 Category:
Description

Technical Specifications

Video StandardHDMI
Maximum Resolution4K@30Hz (4:4:4)
Distance (4K)70-90m
Distance (1080P)100m
Cable TypeCATx (CAT6)
TechnologyHDBaseT 2.0 uncompressed
USBUSB 2.0, 4 ports (front and rear panels)
USB Backward CompatibilityUSB 1.1 and 1.0
IRBidirectional, 38-56 kHz
SerialRS-232 full-duplex
Audio3.5mm analog speaker output
Operating SystemsWindows, Linux, macOS
InstallationPlug-and-play, no drivers required

Source: DSGIO — KEX-HBT-SH100 1080P HDMI KVM Extender over CATx with SPK Out, 2-Way IR. Verify with manufacturer.
