Overview

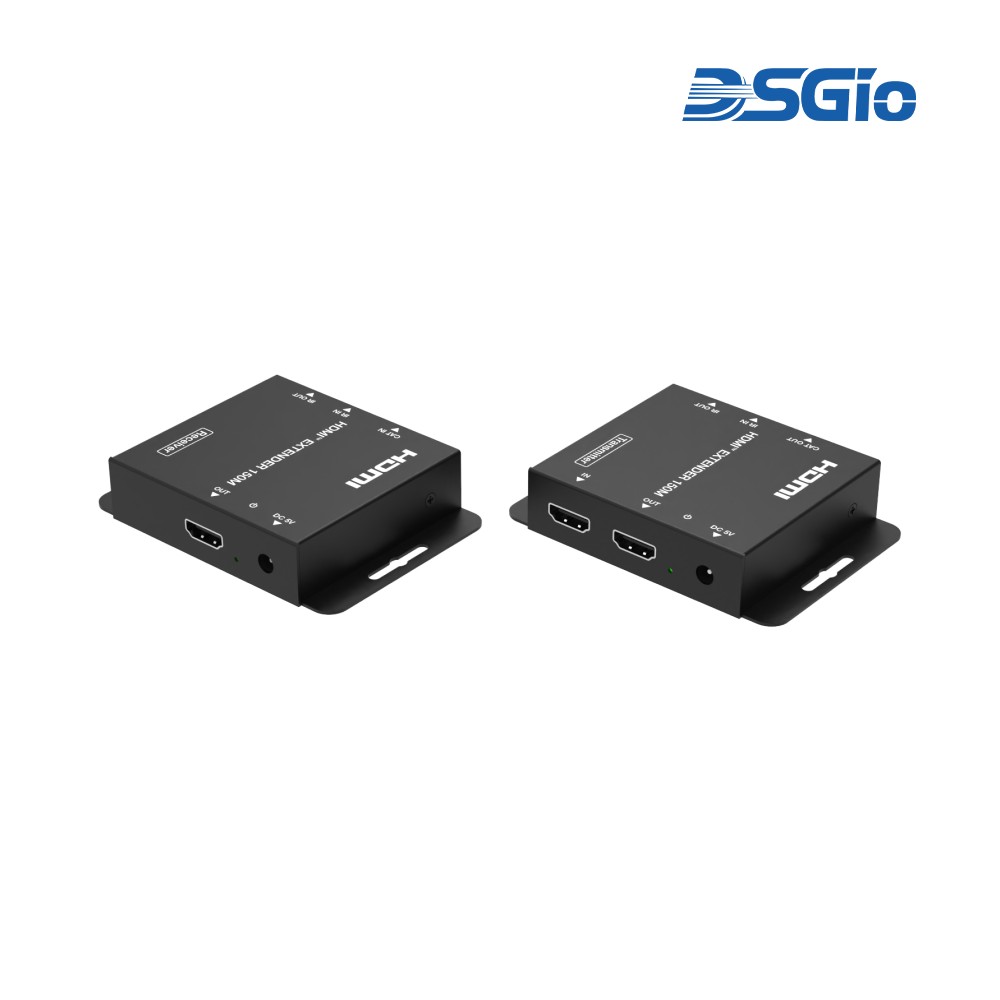

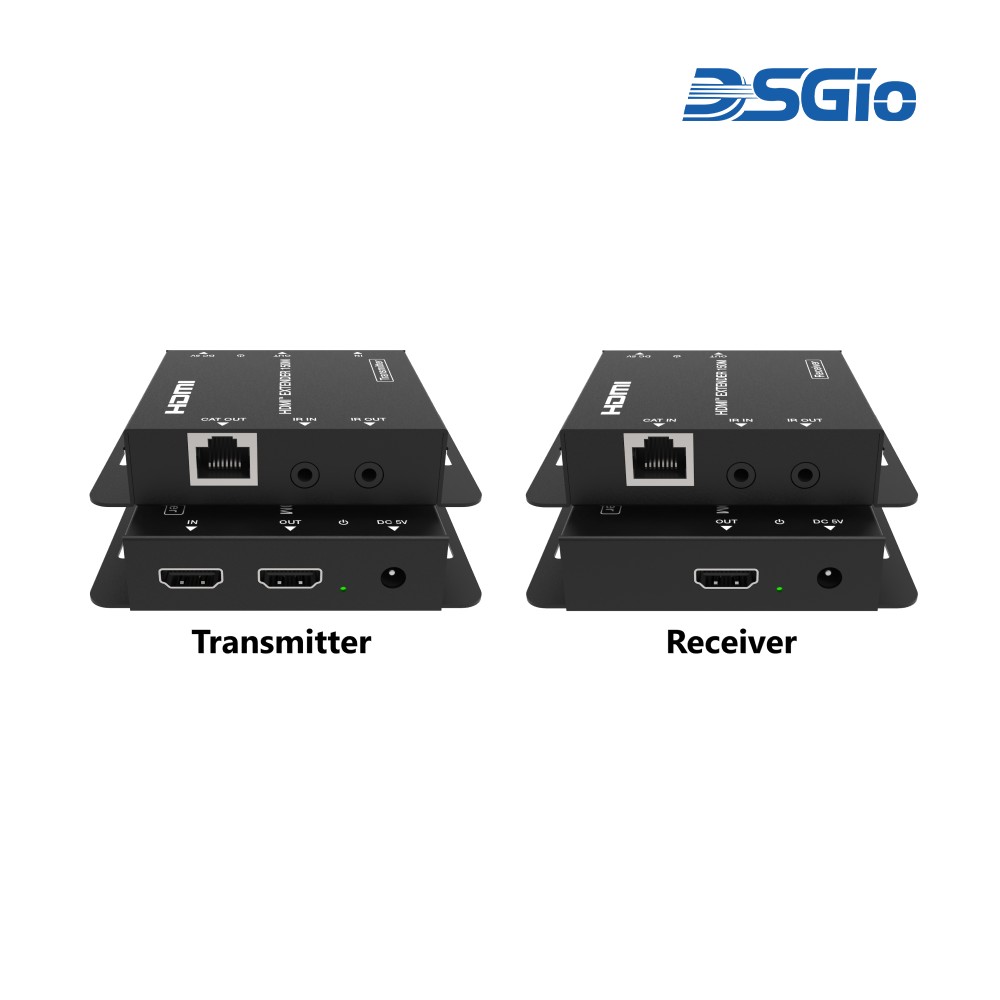

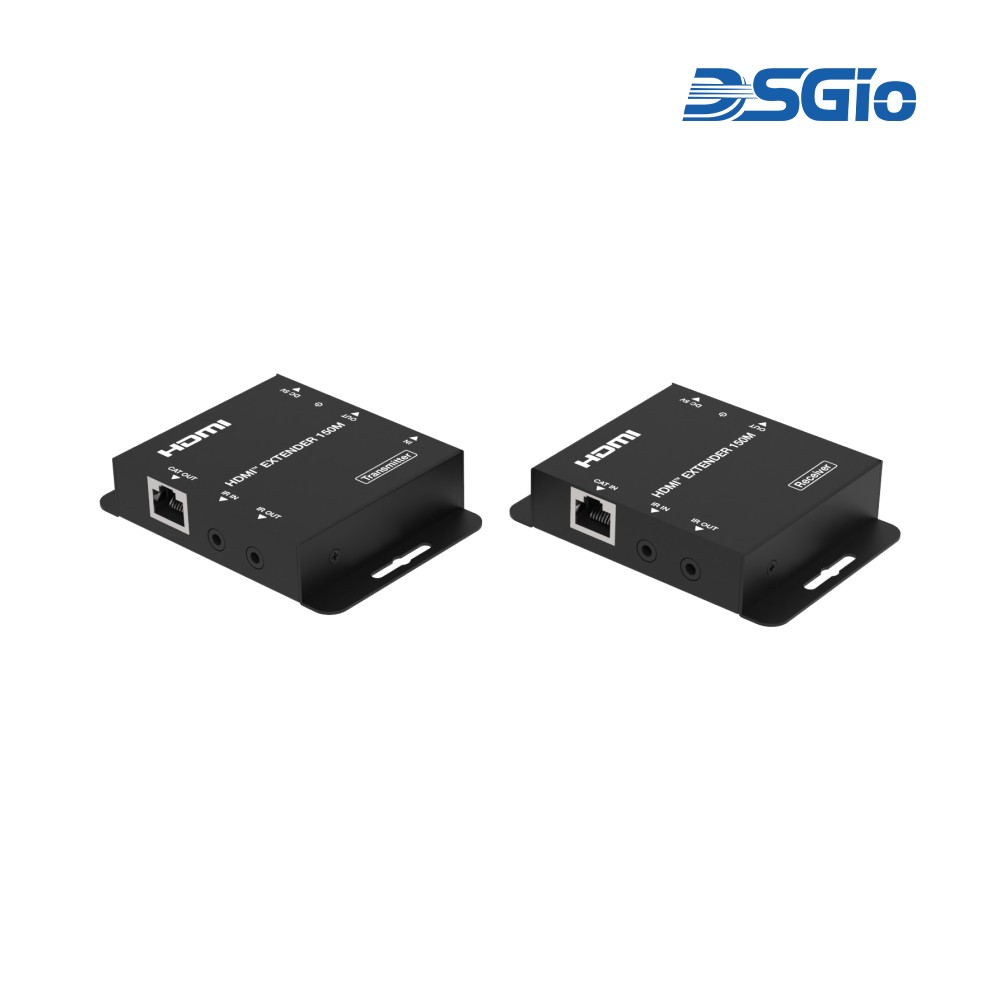

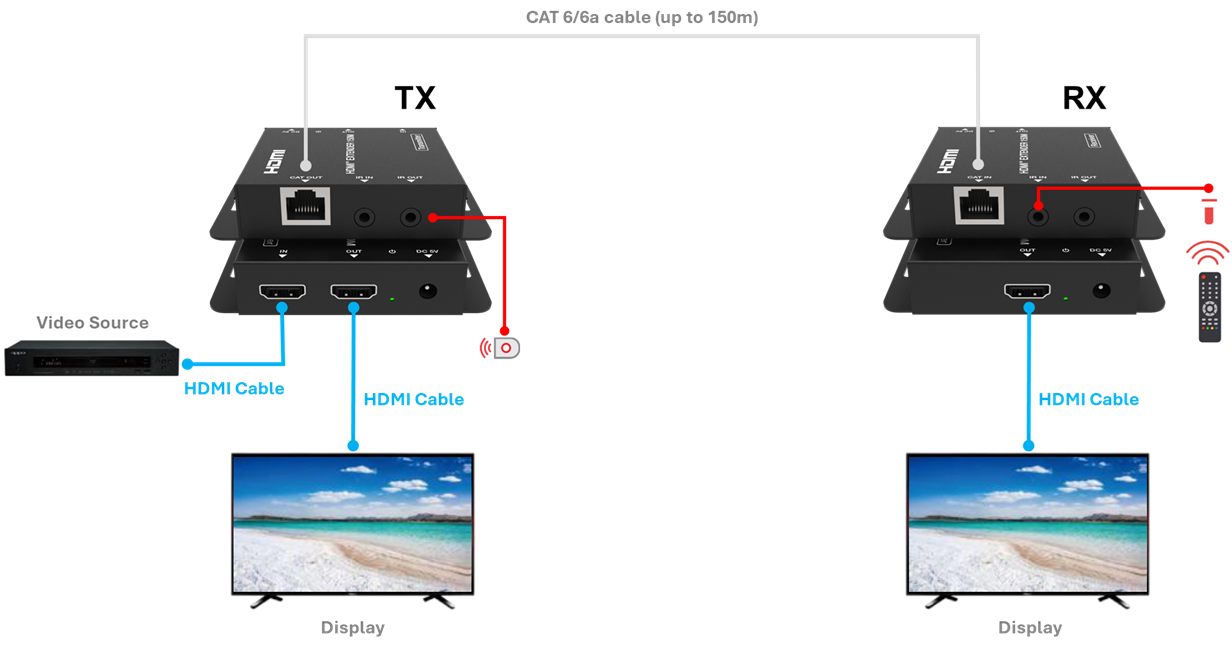

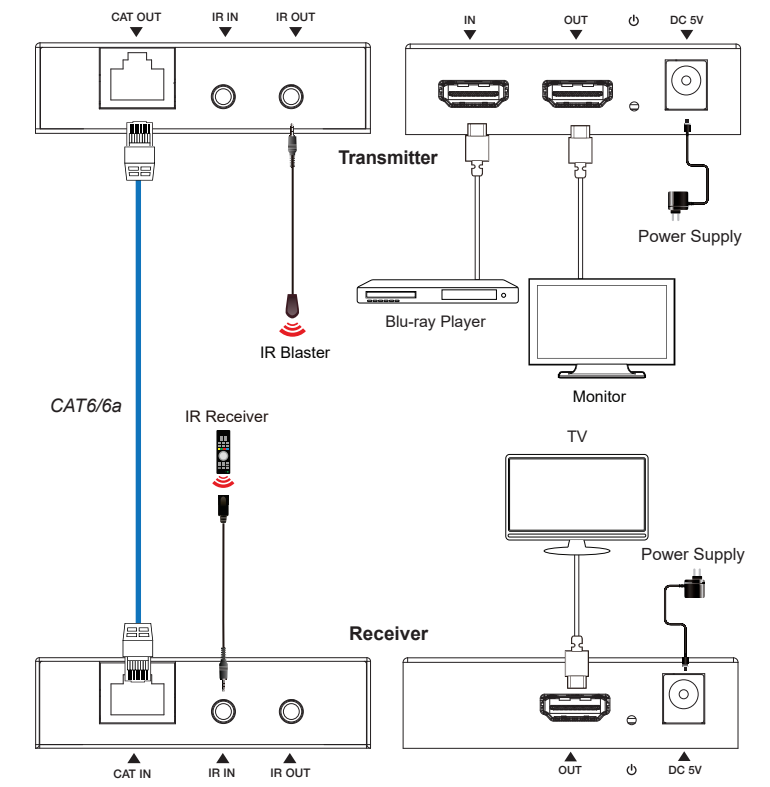

The device transmits uncompressed HDMI video with 2-channel audio and bi-directional IR signals up to 150m using CAT6/6a cabling. It complies with HDMI 1.3 and HDCP 1.4 standards, supporting 4.95Gbps video bandwidth and resolutions including 1080p@60Hz and 1920×1200@60Hz with 8-bit color depth. The unit features integrated EDID management and 5Vp-p wideband IR pass-through (20kHz-60kHz). Transmitter includes HDMI input, loop output, RJ45 output, and IR ports; receiver features RJ45 input, HDMI output, and IR ports.
Product Features
- HDCP 1.4 compliant
- Video bandwidth: 4.95 Gbps
- Resolutions: 1080p@60Hz, 1920×1200@60Hz
- Transmission: 150m over CAT6/6a
- Bi-directional IR pass-through
- Audio: PCM 2.0 (2-channel)
- Built-in EDID management
