Overview

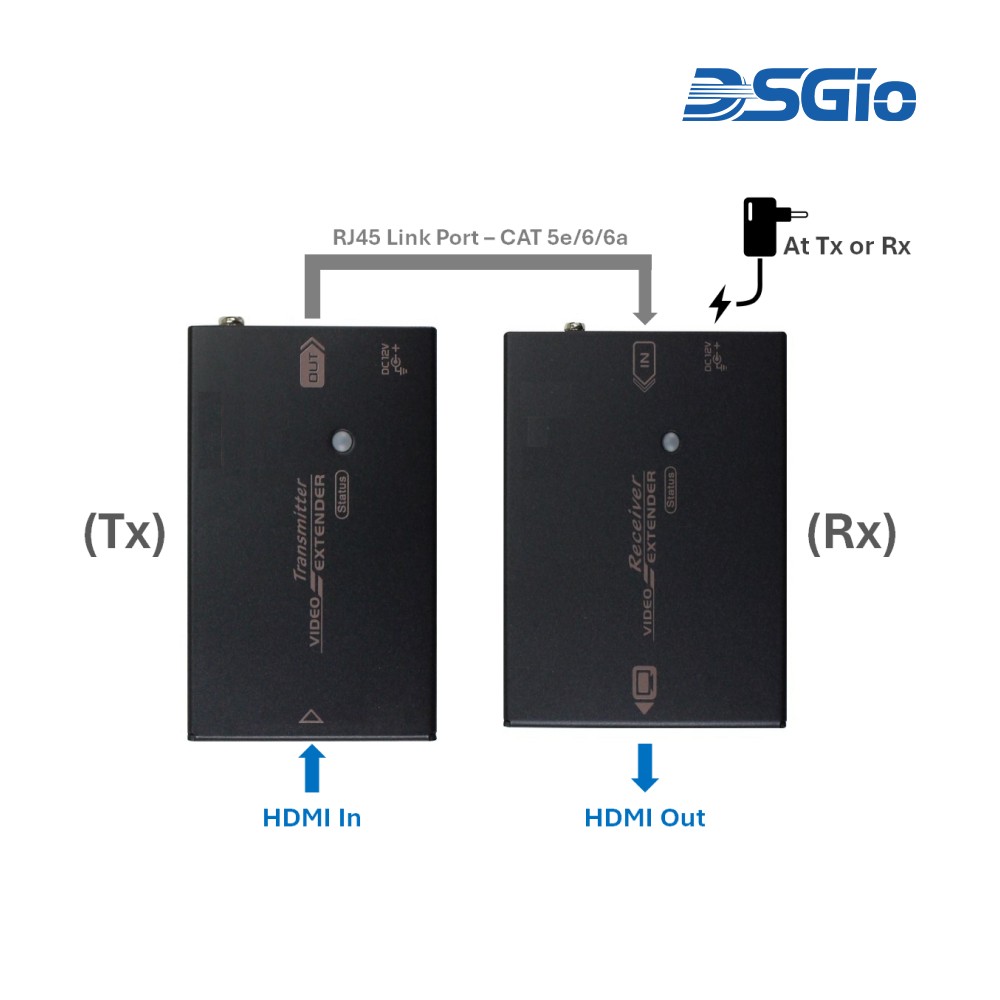

The HEX-HDBT-100 delivers HDMI signal extension via CAT5e or CAT6 cable in point-to-point configuration, supporting transmission up to 100m at 1080p or 70m at 4K. Features include HDCP compliance, Power over Cable (PoC) capability, and Auto EDID configuration for optimized video output.
Product Features
- 1080P HDMI extension over CATx up to 100 meters
- 4K@30Hz (4:4:4) resolution support with HDR10
- HDCP 1.4 compliance and HDMI CEC support
- HDBaseT uncompressed transmission with low latency
- Power over Cable (PoC) from either Tx or Rx direction
- Plug-and-play operation (no software/drivers required)
- Suitable for offices, education, government, worship spaces, and home entertainment
