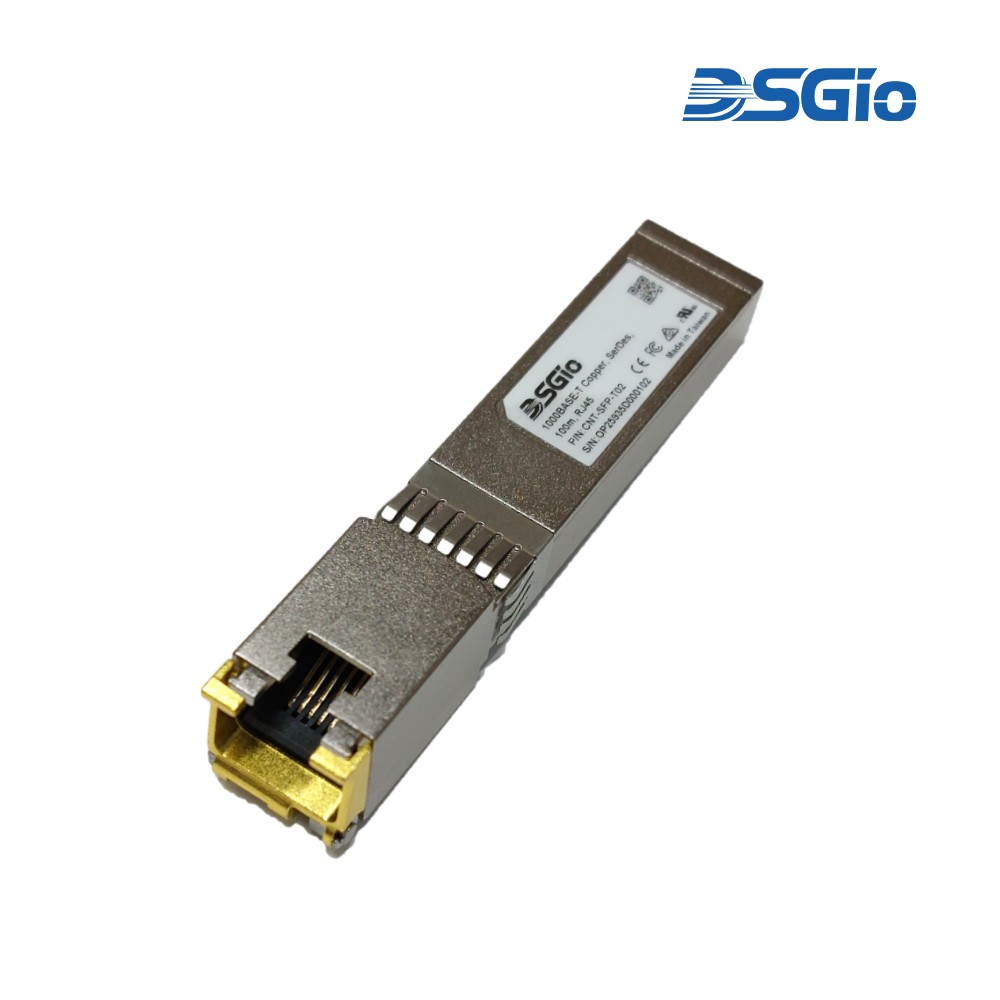

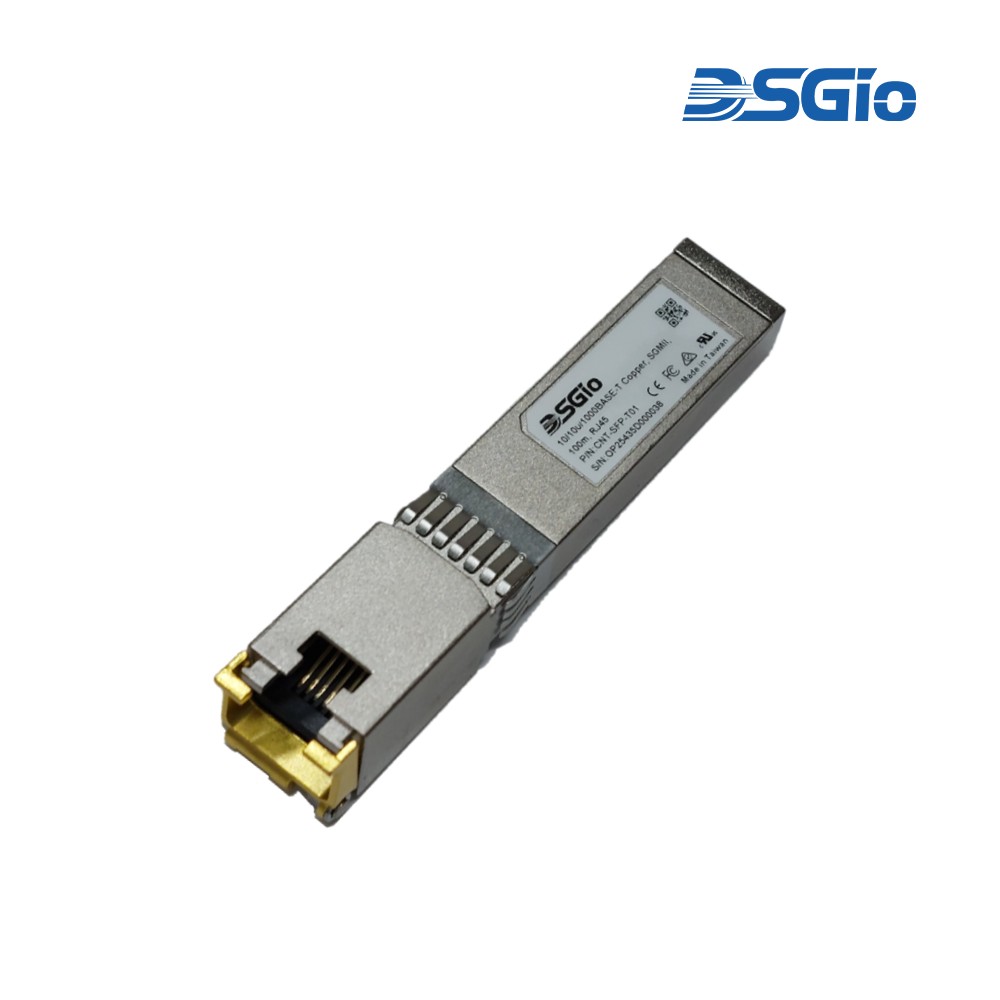

CNT-SFP-TXX 1G Copper SFP

The 1G Copper SFP Transceiver family delivers compact, hot-swappable RJ45 connectivity for Gigabit Ethernet applications, fully compliant with IEEE 802.3 standards and the SFP Multi-Source Agreement (MSA).

Brand

SKU: CNT-SFP-TXX Category:
Description

Overview

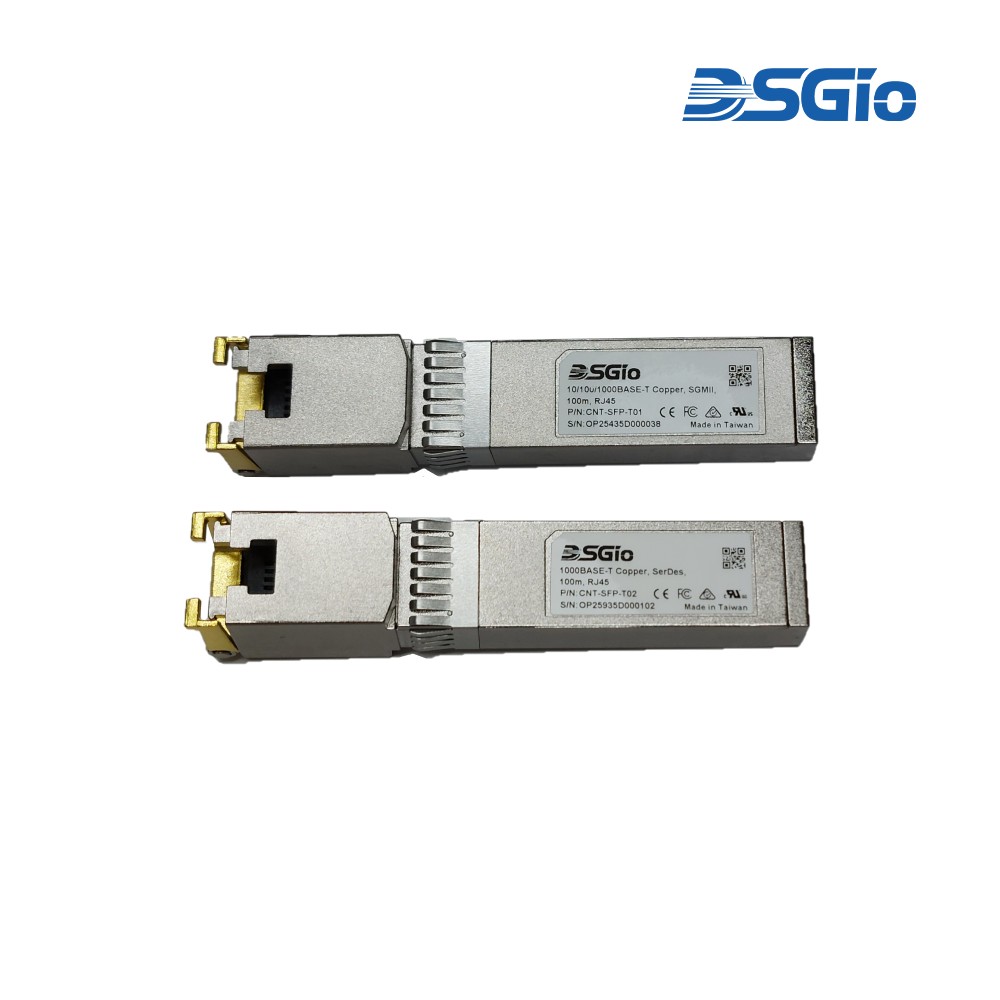

The product line consists of compact, hot-swappable modules supporting bi-directional data rates up to 1.25Gb/s over CAT5 cabling with 100-meter transmission distances. Both commercial (0-70°C) and industrial (-40-85°C) temperature grades are available with RoHS compliance. Two variants: CNT-SFP-T01 (10/100/1000BASE-T with SGMII interface) and CNT-SFP-T02 (1000BASE-T with SerDes interface).

Product Features

  • IEEE 802.3z/u/ab compliance; SFP MSA compliance
  • Hot-pluggable design; RJ-45 connector
  • Auto-sensing MDI/MDIX
  • Single 3.3V power supply
  • Supports 1.25Gbps over 100m CAT5 cabling
  • Commercial and industrial temperature options
  • RoHS compliant
