Overview

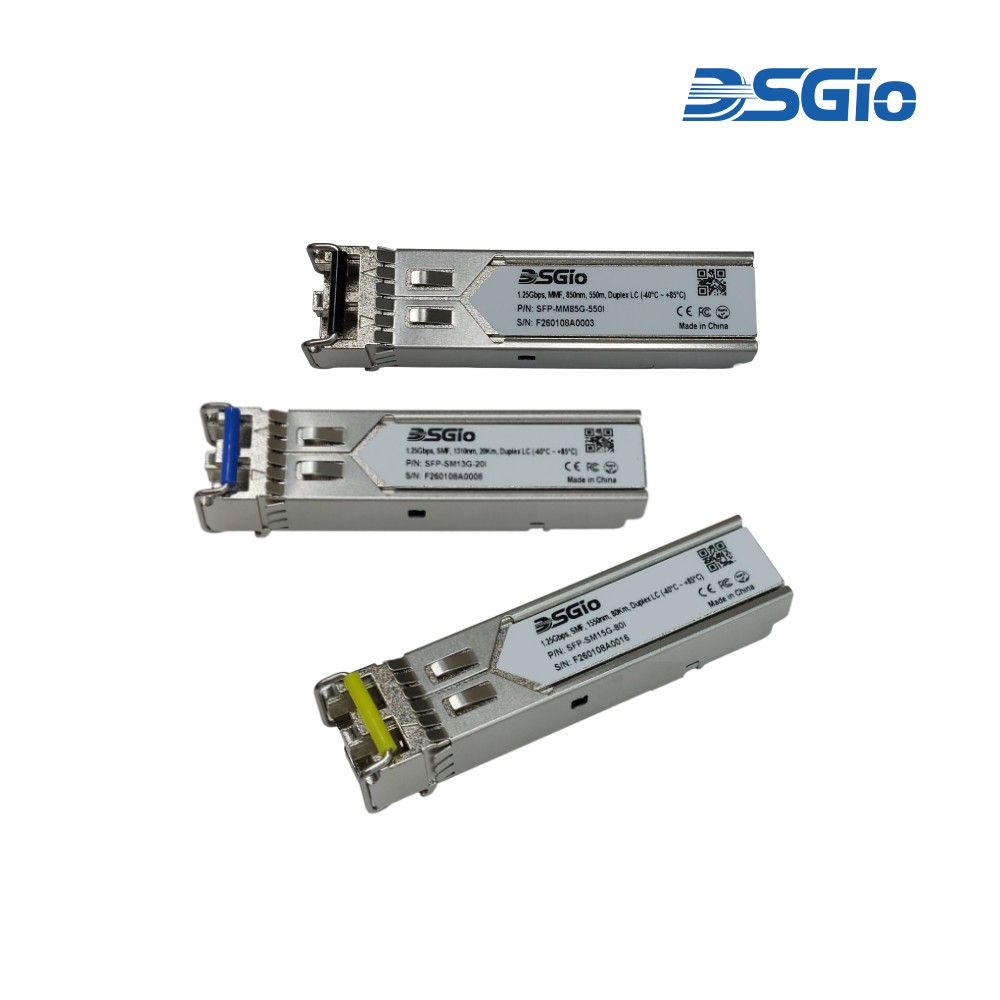

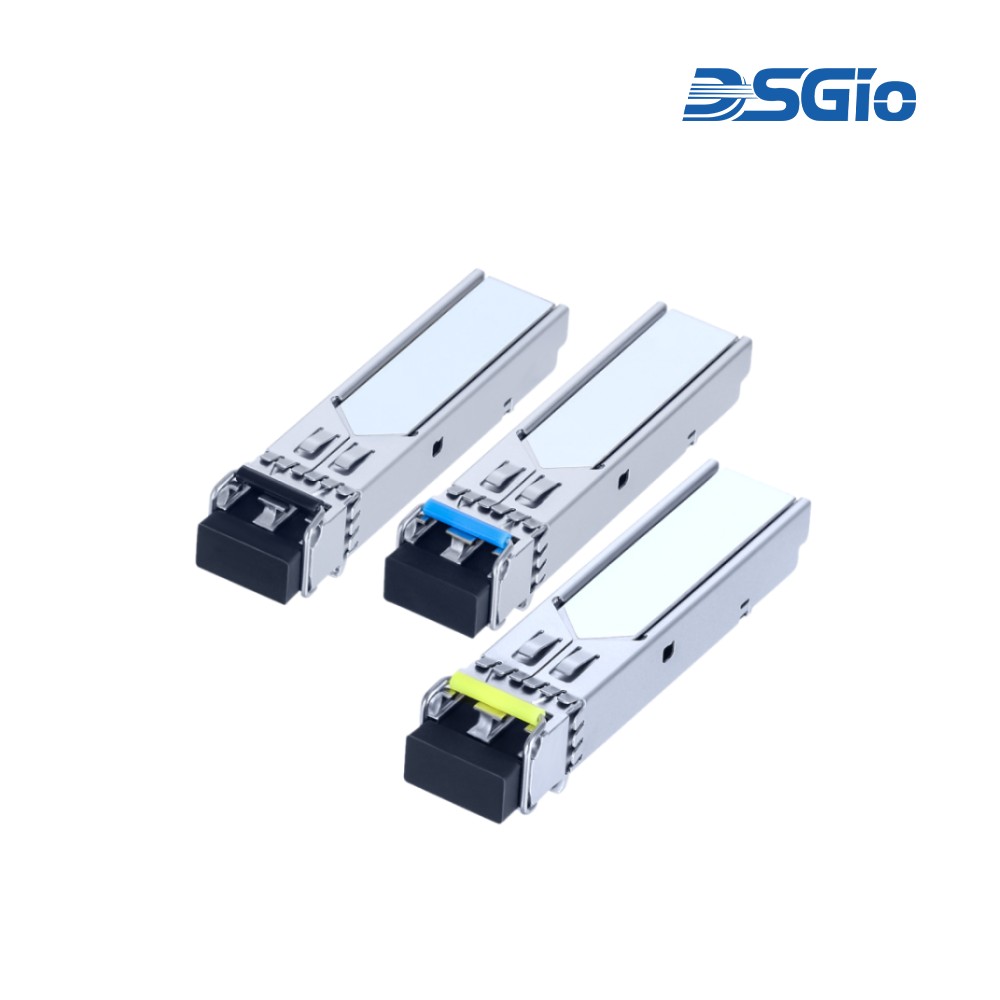

The 1.25G Duplex SFP represents a compact, hot-swappable optical transceiver module delivering up to 1.25 Gbps data rates over fiber, compliant with SFP MSA standard and SFF-8472 diagnostics, operating from a single +3.3V supply. Variants support multimode fiber transmission up to 550 meters (850nm) or single-mode fiber links reaching 20km to 140km depending on wavelength selection (1310nm or 1550nm).
Product Features
- Up to 1.25 Gbps data rates over fiber
- SFP MSA standard and SFF-8472 compliant
- Duplex LC connectors
- Real-time digital diagnostic monitoring
- RoHS compliant
- Standard (0-70°C) or industrial (-40-85°C) temperature ranges
- Multimode variant: 850nm, up to 550m; Single-mode variants: 1310nm or 1550nm, up to 140km
