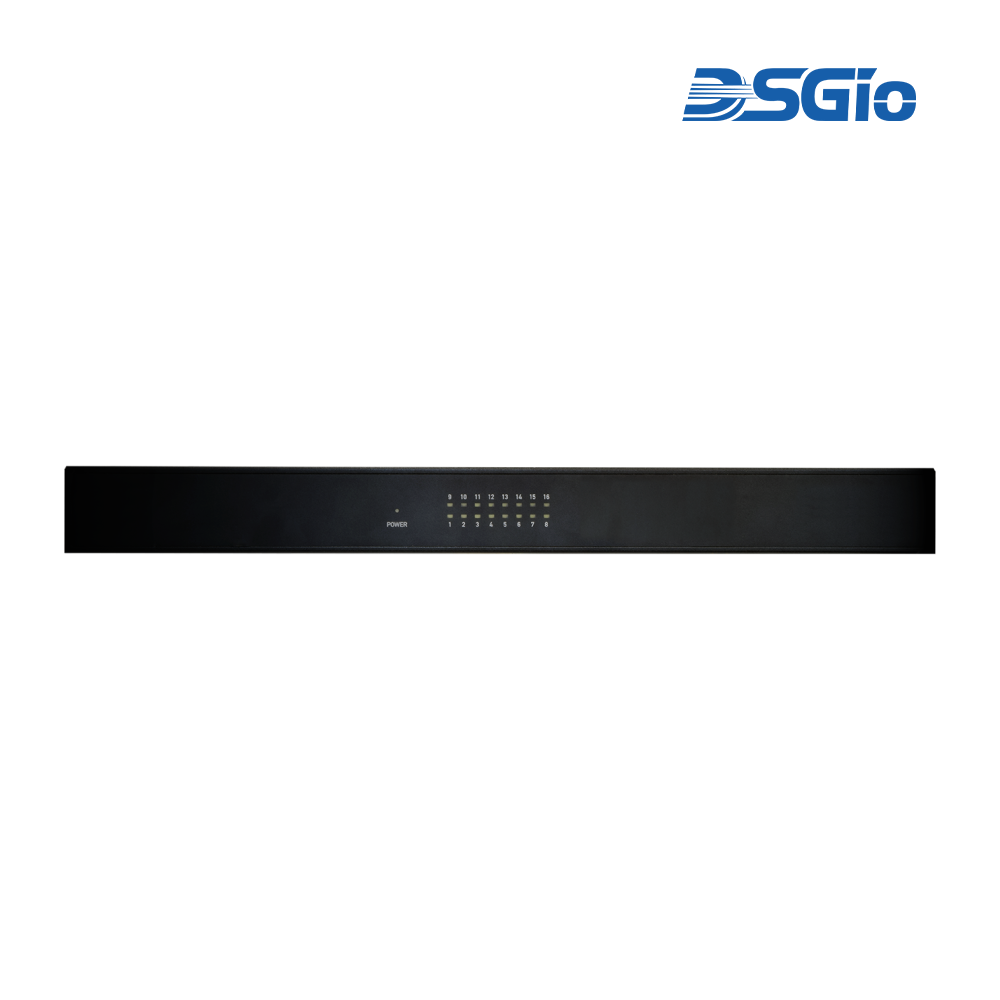

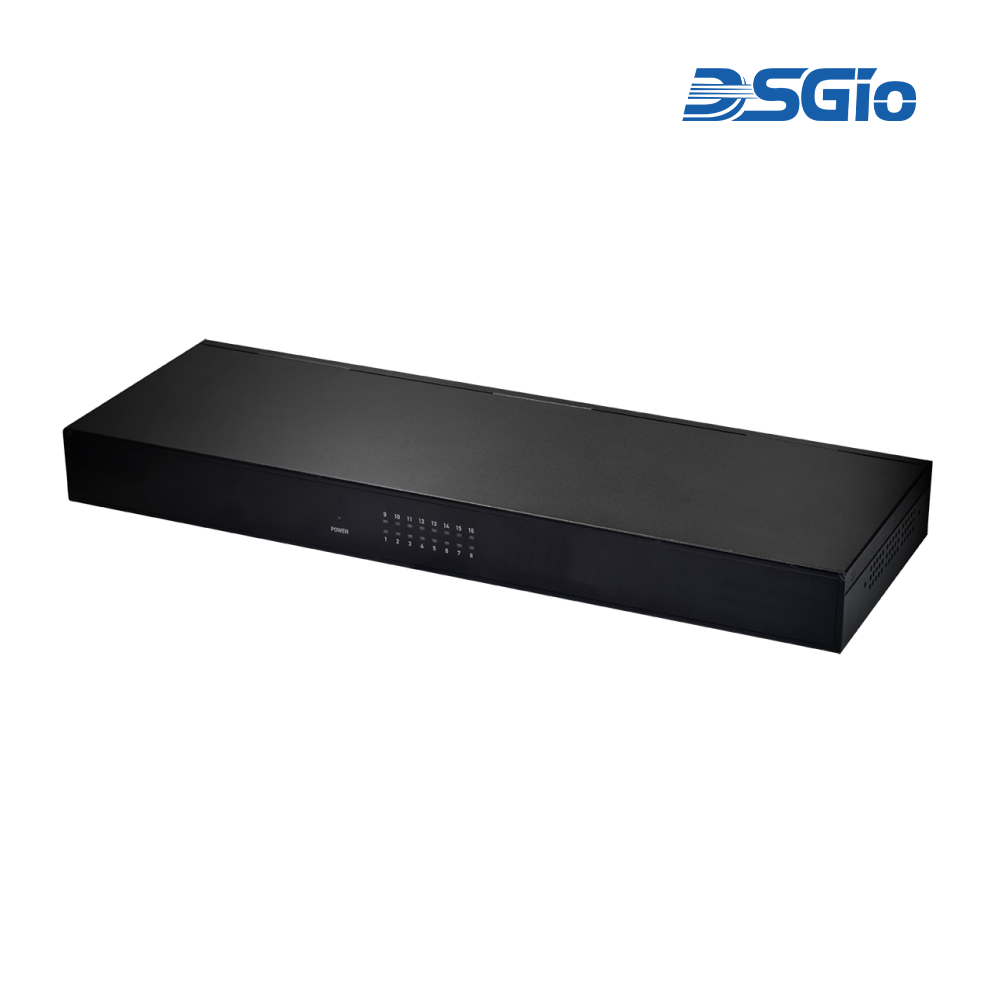

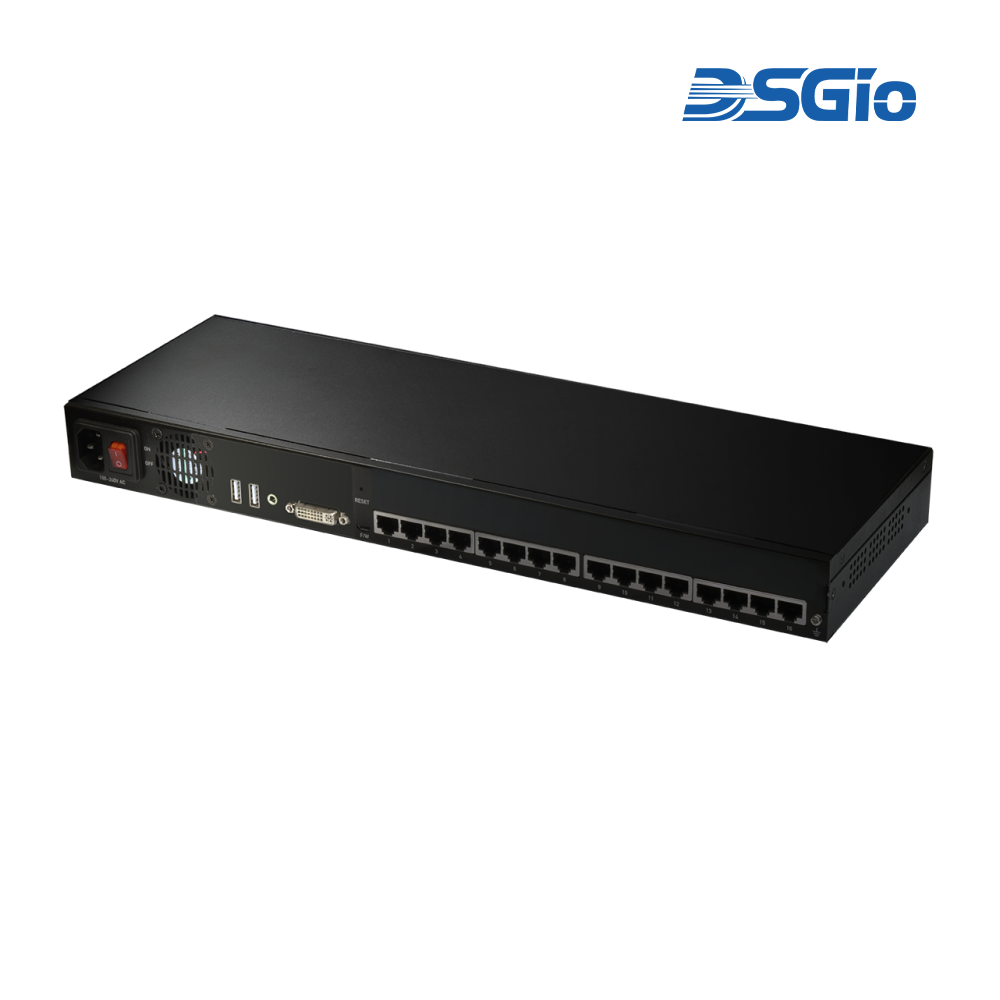

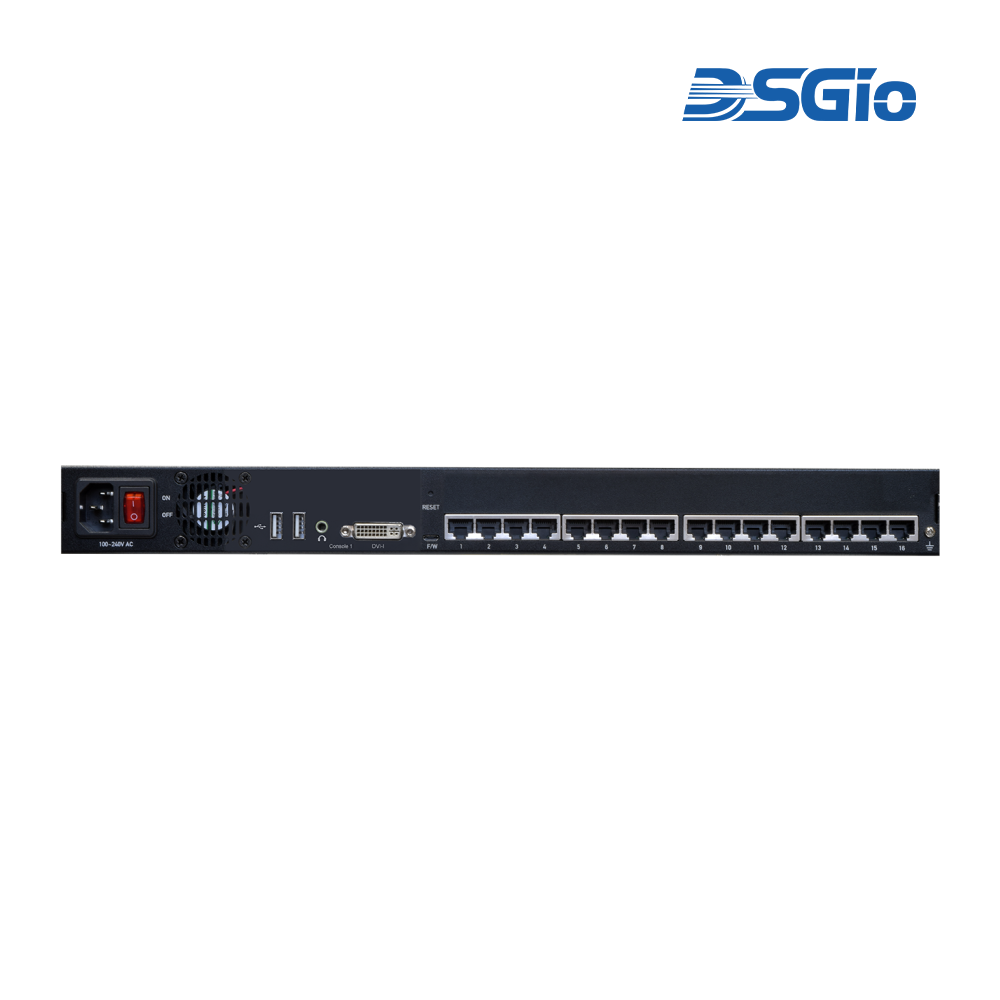

RKS-FHDI-CX116 1U Rackmount KVM Switch over CATx, 1-User 16-Port

1U Rackmount KVM Switch (CATx), 1 User, 16 Ports supporting resolutions up to 1920×1200@60Hz (VGA) / 1920×1080@60Hz (DVI).

Brand

SKU: RKS-FHDI-CX116 Category:
Description

Technical Specifications

Users1 (single-user)
Ports16
Video InterfacesDVI-I, HDMI, DisplayPort, VGA
Resolution (VGA)1920×1200@60Hz
Resolution (DVI)1920×1080@60Hz
CablingCAT5e/6/6a
Extension DistanceUp to 45m (148ft)
Cascading2-level, expandable to 1024 ports
ConsoleUSB HID keyboard and mouse
Audio3.5mm stereo (HDMI and VGA CADs only)
ControlOSD, hotkeys
SecurityPassword protection
EnclosureMetal, 19″ rack-mountable
FirmwareUpgradeable

Source: DSGIO — RKS-FHDI-CX116 1U Rackmount KVM Switch over CATx, 1-User 16-Port. Verify with manufacturer.
