ADDERView 8 port DPHDMI to DPHDMI multi-viewer switch (CCS-MV4228)
Contact for Price

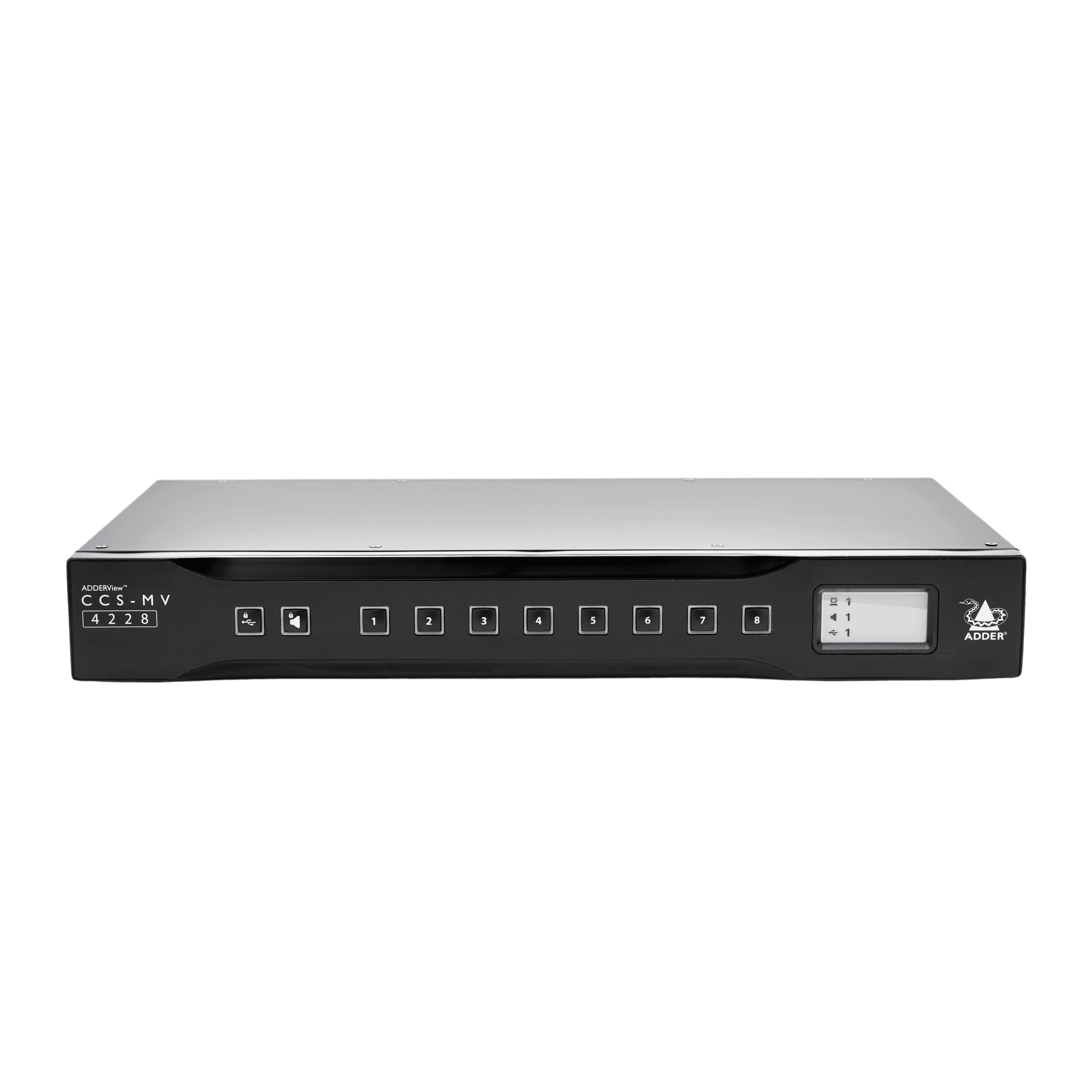

ADDERView® CCS-MV 4228 Multi-Viewer – CCS-MV 4228 – Command and control multi-viewer switch for sharing 4K video, keyboard and mouse, plus audio between eight computers. Innovative hybrid DisplayPort™ and HDMI® video ports for flexible connectivity from a single computer.
| Brand | Adder |
|---|
Part number: CCS-MV4228
Description
ADDERView® CCS-MV 4228 Multi-Viewer – CCS-MV 4228 – Command and control multi-viewer switch for sharing 4K video, keyboard and mouse, plus audio between eight computers. Innovative hybrid DisplayPort™ and HDMI® video ports for flexible connectivity from a single computer.
Technical Specifications
| Video Inputs | 8x hybrid DisplayPort 1.2 / HDMI (dual-mode) |
| Video Outputs | 2x hybrid DisplayPort 1.2 / HDMI (dual-mode) |
| Maximum Resolution | 3840 x 2160 (UHD 4K) @ 30fps |
| Colour Depth | 8 bpc |
| Computer Ports | 8 |
| USB (Computer) | 8x USB 2.0 HID True Emulation; 8x USB 2.0 High Speed |
| USB (Console) | 2x USB 2.0 HID; 1x USB 2.0 High Speed |
| Audio | Analog/Digital 2-channel, output only, 3.5mm jack |
| Switching | Mouse-across-screen; hotkey; front-panel |
| Operating Temperature | 0–40°C (32–104°F) |
| Humidity | 0–80% (non-condensing) |
| Power Supply | 12V DC 48W, 100–240 VAC 47/63Hz; built-in fan |
| Dimensions | 439mm W × 58mm H × 237mm D (2U rack) |
| Weight | 3.8kg (8.4lb) |
| Certifications | CE, cTUVus, FCC, ICES, UKCA |
| Compliance | Cal Prop 65, China RoHS, EU REACH, UK REACH |
| Warranty | 2 years |
Source: Adder Technology — ADDERView CCS-MV 4228. Verify with manufacturer.
