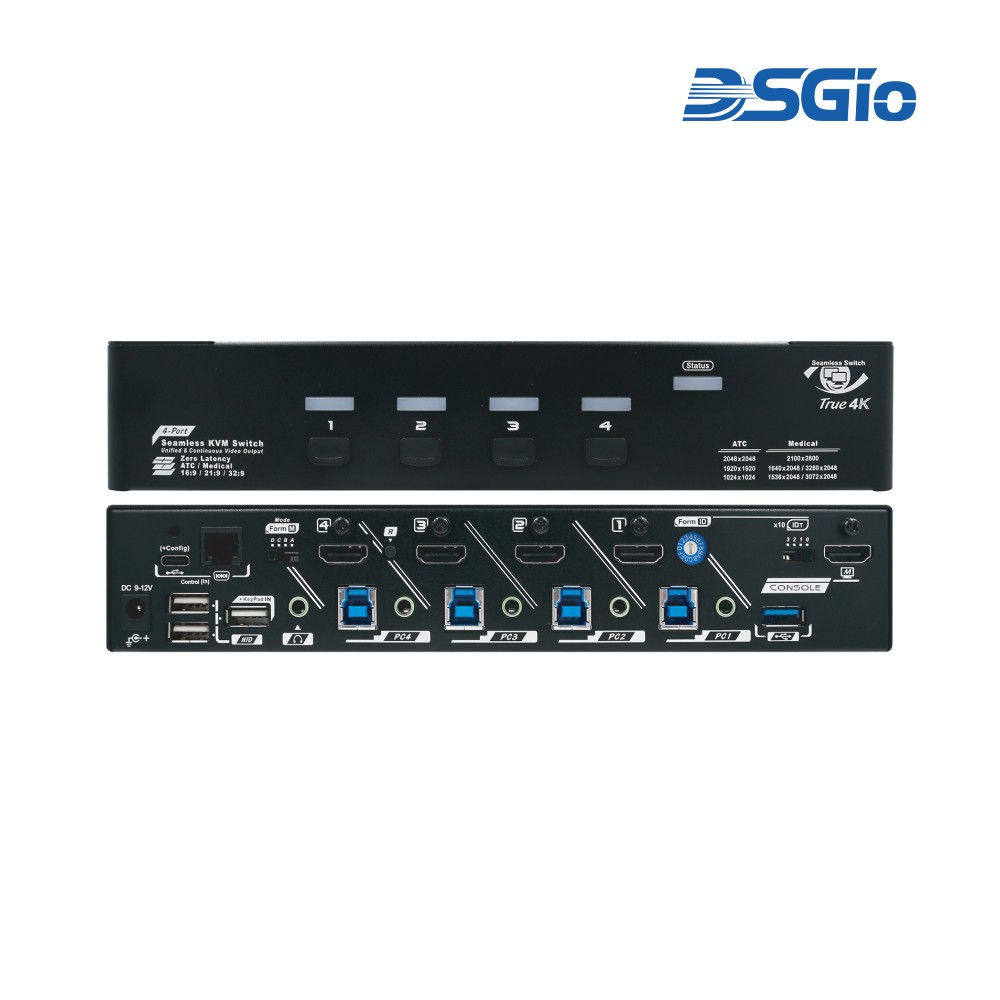

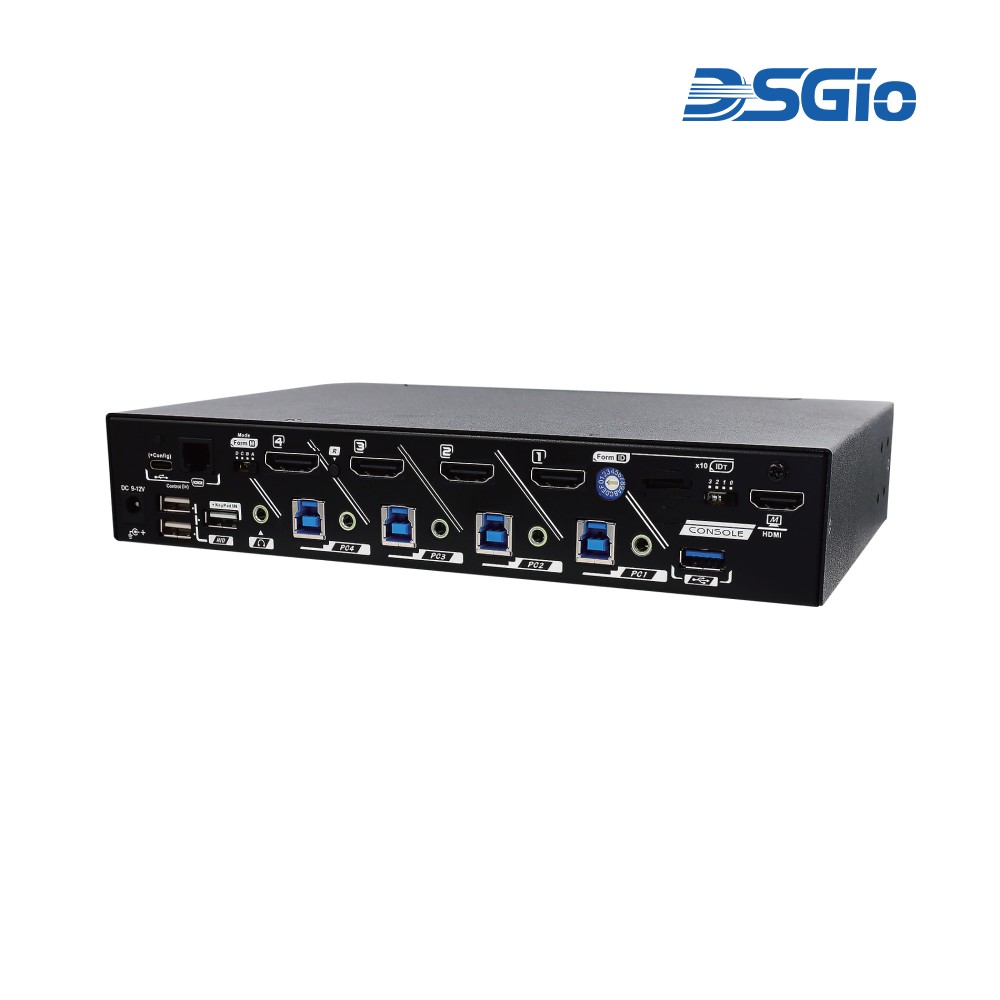

KSW-4K4H-U30 4-Port HDMI 2.0 KVM Switch with Seamless Switching, Scaler

4-Port 4K60 HDMI 2.0 KVM Switch with Seamless Switching, Scaler, USB 3.0, Button/Hotkey/Serial/Keypad-IN Control enabling four computers to share a single console at resolutions up to 3840×2160@60Hz.

Brand

SKU: KSW-4K4H-U30 Category:
Description

Technical Specifications

Maximum Resolution3840×2160@60Hz (4K60)
Video StandardHDMI 2.0
HDCP ComplianceHDCP 2.2/1.4
HDR SupportHDR10
Supported Aspect Ratios16:9, 21:9, 32:9, 1:1, 4:3
Computer Inputs4x HDMI 2.0, 4x USB 3.2 Gen 1 Type-B, 4x 3.5mm audio
Console Output1x HDMI 2.0, 1x USB 3.2 Gen 1 Type-A, 3x USB HID, 1x 3.5mm audio
Serial InterfaceRJ-11 (DB9 to RJ11), USB-C virtual COM
USB SpeedUp to 5Gbps (USB 3.2 Gen 1)
Switching MethodsFront-panel push buttons, keyboard hotkeys, keypad, serial control
Serial Baud Rates8 selectable (9600–115200 bps, default 19200)
EDID Settings1 Auto + 63 preset settings
Scaling4-stage image scaler; native, customised, or 4K/1080p-limited
Operating SystemsmacOS, Linux, Chrome OS, Windows 8 or later

Source: DSGIO — KSW-4K4H-U30 4-Port HDMI 2.0 KVM Switch with Seamless Switching, Scaler. Verify with manufacturer.
