IPXF-H430-SH550F/SH00KF
IPXF-H430-SH550F/SH00KF
DSGIO

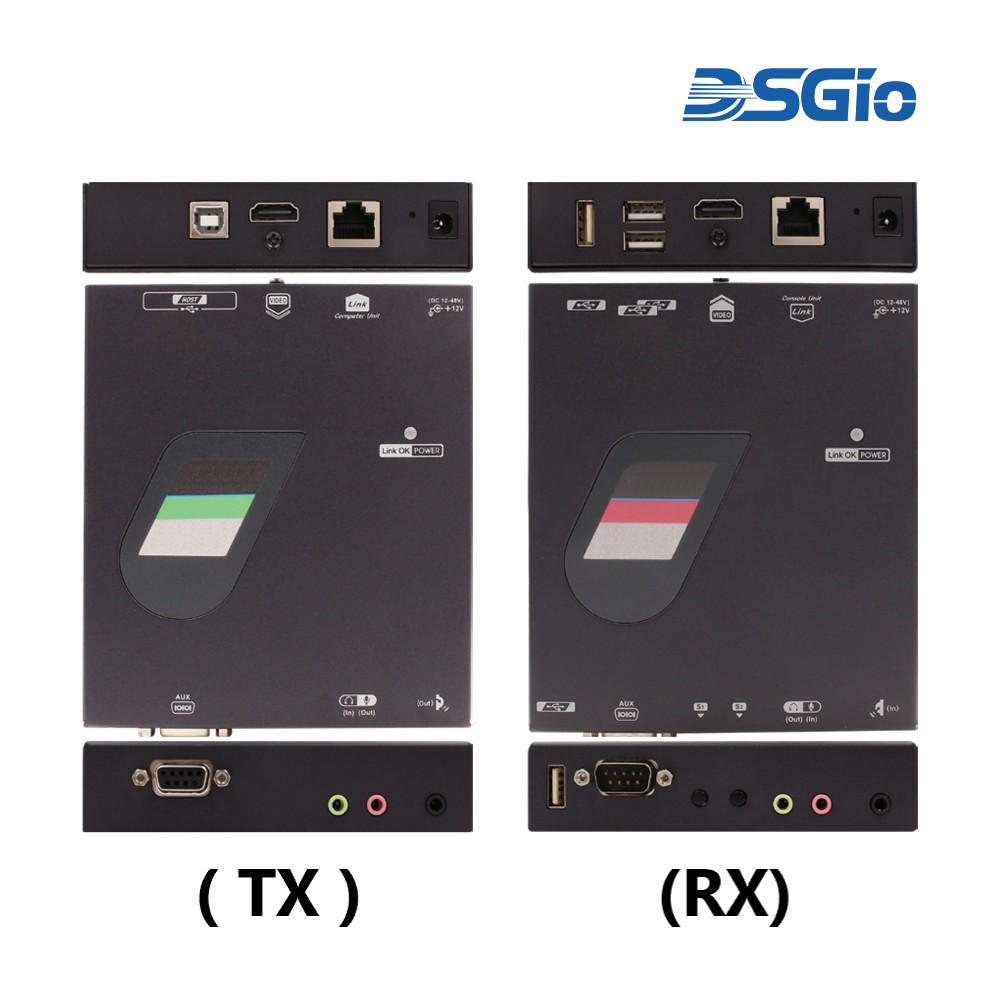

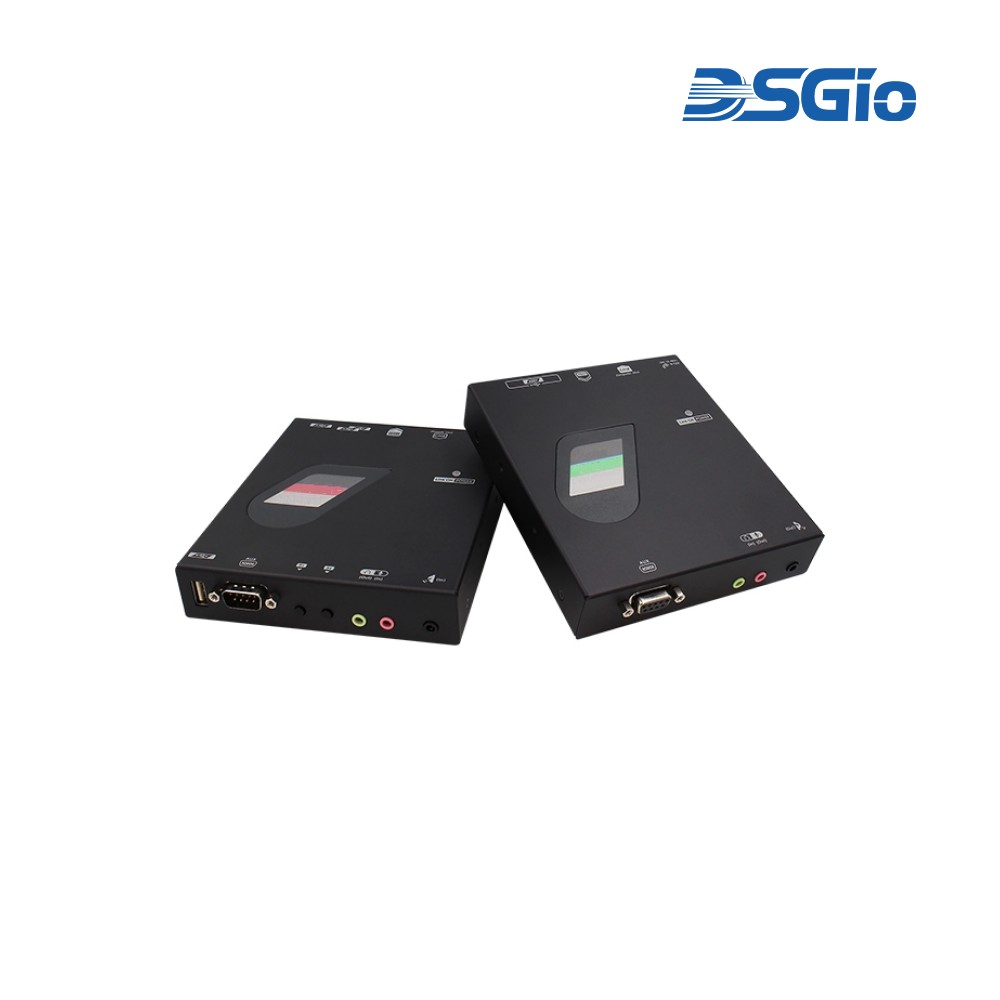

IPXF-H430-SH150 4K30 Single Head HDMI KVM Extender over CATx, 150m

Contact for Price

The 4K HDMI KVM Extender over CATx Cable transmits HDMI video, USB, audio, IR, and serial signals up to 150 meters over a single CAT6/6a/7 cable.

Brand

SKU: IPXF-H430-SH150 Category:
Description

Technical Specifications

Video Resolution4K@30Hz (4:4:4); 2048×2048@60Hz (Aero/Marine)
Video StandardHDMI 1.4
HDCP ComplianceHDCP 1.4
Cable TypeCAT6/6a/7
Maximum Distance150m (490ft)
USBUSB 2.0, 4 ports (front and rear)
AudioBidirectional 2-way; 3.5mm stereo embedding/de-embedding
IR38-56 kHz; up to 3m extension
SerialRS-232, selectable baud rates
Power InputDC 12-48V
Power DeliveryBidirectional PoC
Operating SystemsWindows, macOS, Linux, Chrome OS
InstallationPlug-and-play, no drivers required

Source: DSGIO — IPXF-H430-SH150 4K30 Single Head HDMI KVM Extender over CATx, 150m. Verify with manufacturer.
