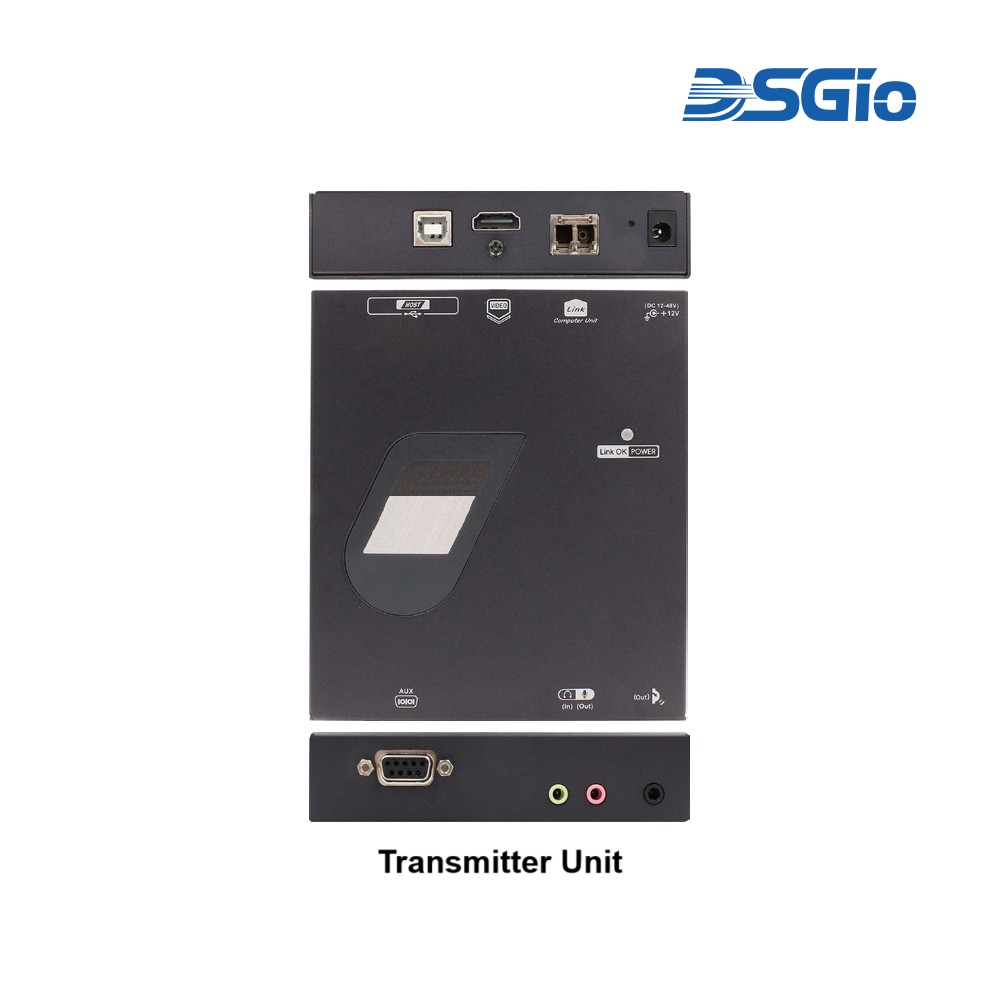

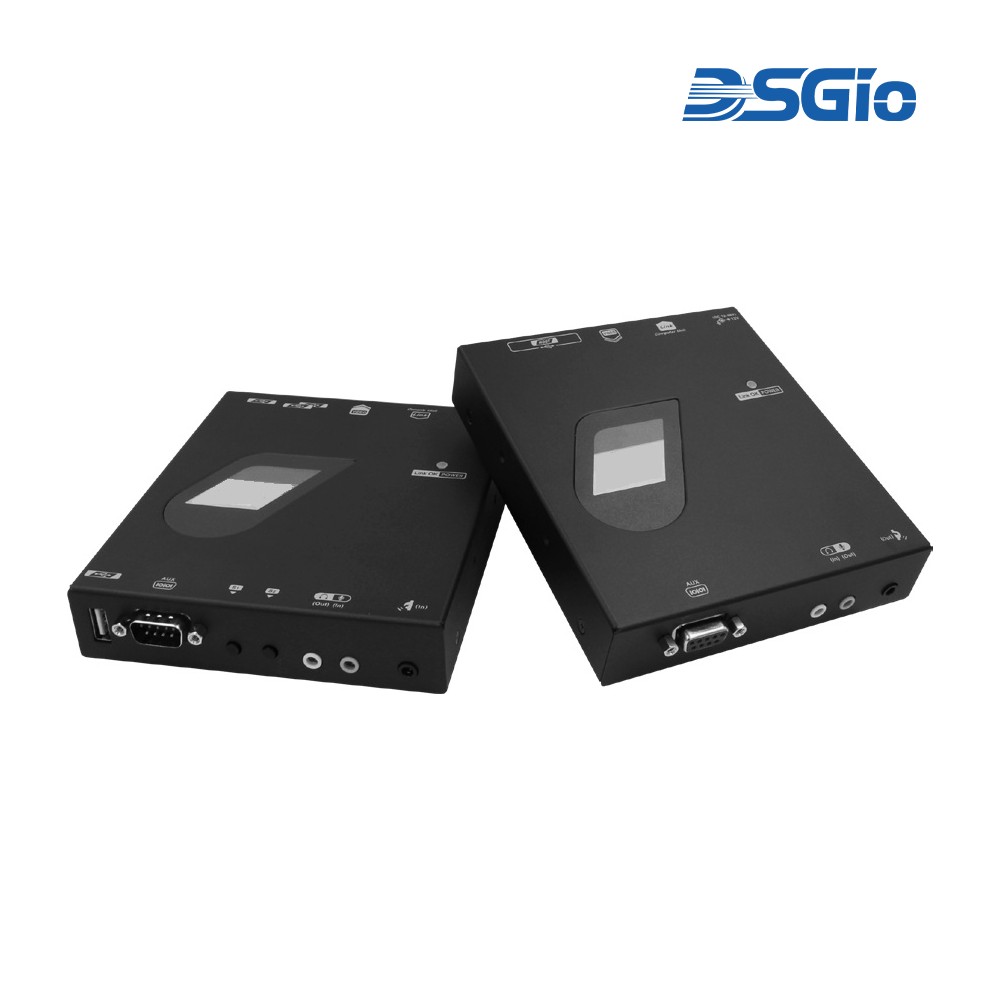

IPXF-H430-SH550F/SH00KF
4K30 Single Head HDMI KVM Extender over Fiber with Audio, USB 2.0, IR, RS-232 Extension, MM or SM, LC SFP, 0 to 80 km.
| Brand | DSGIO |
|---|
Part number: IPXF-H430-SH550F
Technical Specifications
| Video Resolution | 4K@30Hz (4:4:4); 2048×2048@60Hz (Aero/Marine) |
| Video Standard | HDMI 1.4 |
| HDCP Compliance | HDCP 1.4 |
| Fiber | Duplex LC SFP (multimode or single-mode) |
| Maximum Distance | Up to 80km (depending on SFP and fiber type) |

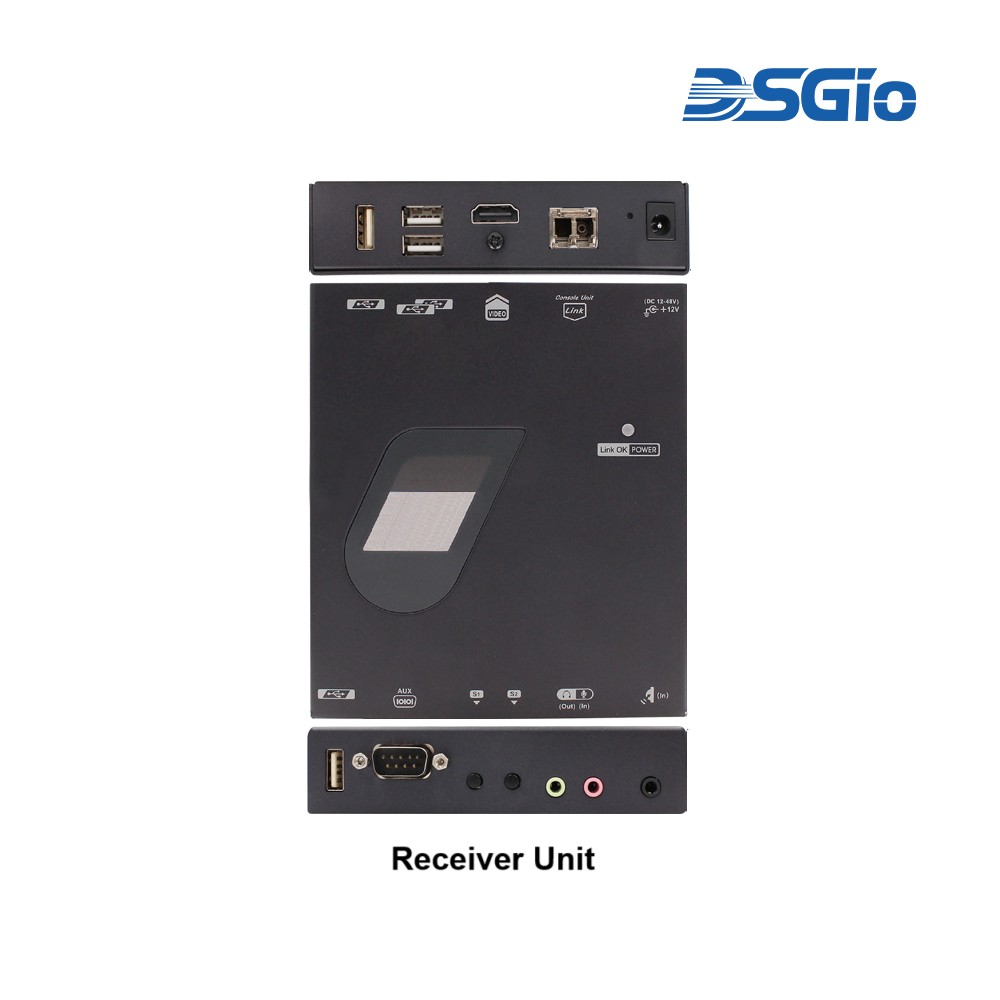

| USB | USB 2.0, 4 ports on receiver |
| Audio | Bidirectional; smart switching from HDMI to 3.5mm analog |
| IR | 38-56 kHz; up to 1.4m cable |
| Serial | RS-232, 8 selectable baud rates (9600-115200 bps) |
| Power Input | DC 12-48V |
| Operating Systems | Windows, macOS, Linux, Chrome OS |
| EMI | Fiber link isolation |
Source: DSGIO — IPXF-H430-SH550F/SH00KF. Verify with manufacturer.
