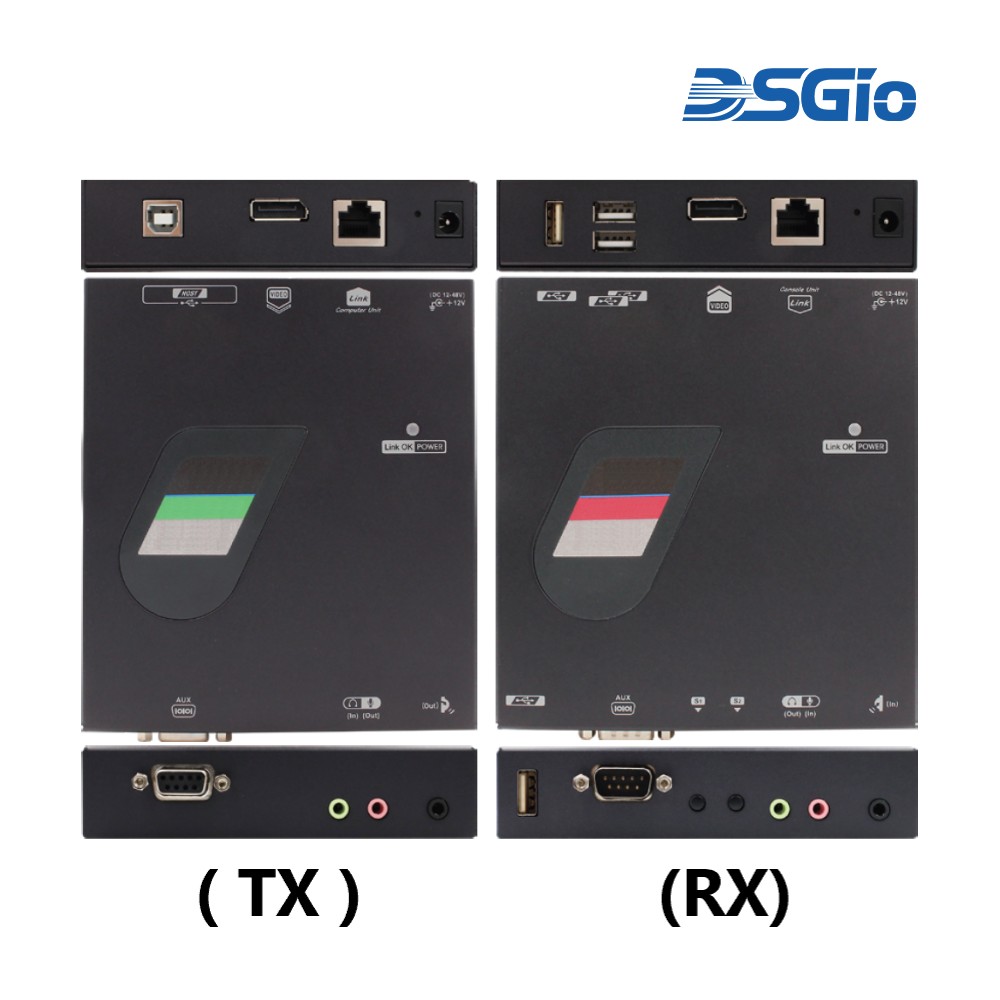

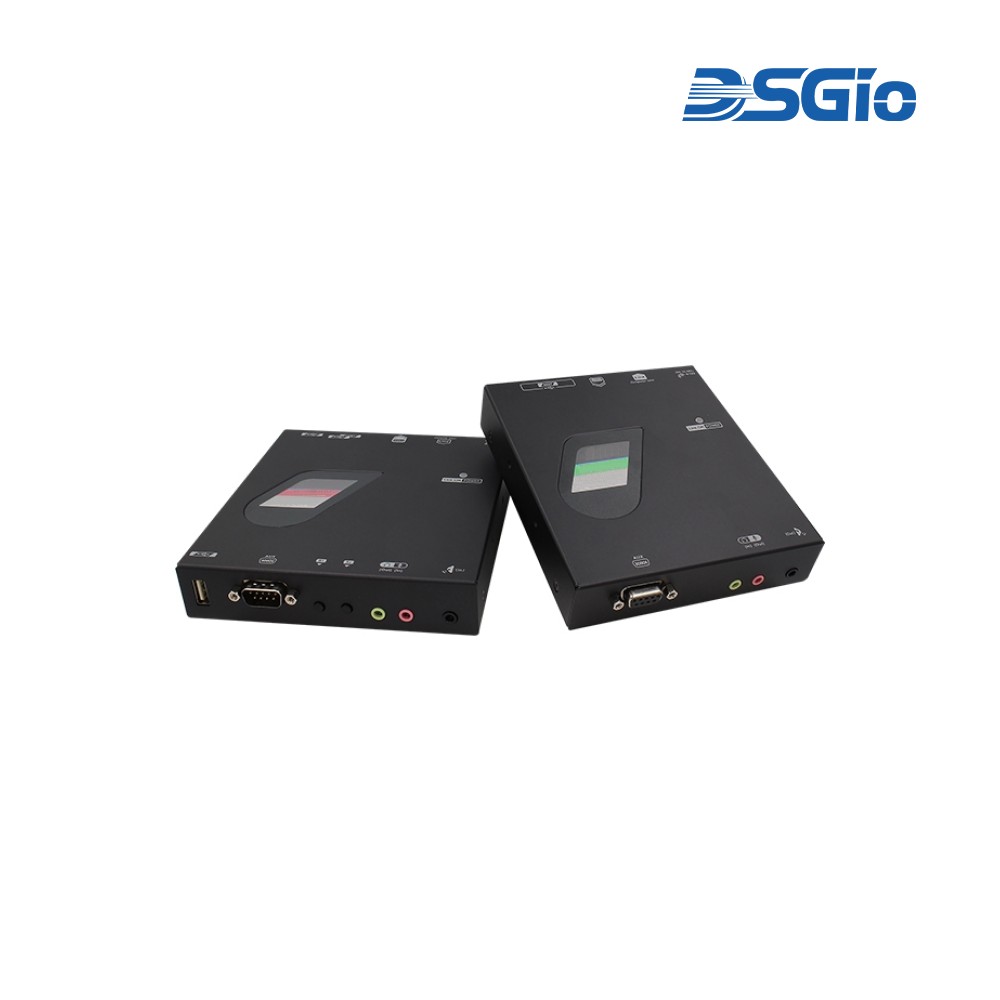

IPXF-D430-SH150 4K30 Single Head DisplayPort KVM Extender over CATx, 150m

Contact for Price

The 4K DisplayPort KVM Extender over CATx Cable transmits DP video, USB, audio, IR, and serial signals up to 150 meters over a single CAT6/6a/7 cable.

Brand

SKU: IPXF-D430-SH150 Category:
Description

Technical Specifications

Video Resolution4K@30Hz (4:4:4); 2048×2048@60Hz (Aero/Marine)
Video StandardDisplayPort
HDCP ComplianceHDCP 1.4
Cable TypeCAT6/6a/7
Maximum Distance150m (490ft)
USBUSB 2.0, 4 ports (front and rear on receiver)
AudioBidirectional 2-way; 3.5mm stereo embedding/de-embedding
IR38-56 kHz; up to 3m extension
SerialRS-232, selectable baud rates
Power InputDC 12-48V
Power DeliveryBidirectional PoC
Operating SystemsWindows, macOS, Linux, Chrome OS
InstallationPlug-and-play, no drivers required

Source: DSGIO — IPXF-D430-SH150 4K30 Single Head DisplayPort KVM Extender over CATx, 150m. Verify with manufacturer.
