Overview
The C6F23U25-LSZH-305XX is engineered for high-performance structured cabling systems in commercial and industrial environments. Built with 23AWG solid bare copper conductors and aluminium/mylar foil shielding with drain wire, it delivers stable data transmission with robust EMI protection. Supporting frequencies up to 250 MHz and compliant with ANSI/TIA-568.2-E and ISO/IEC 11801 standards, it enables Gigabit Ethernet and PoE/PoE+ applications.

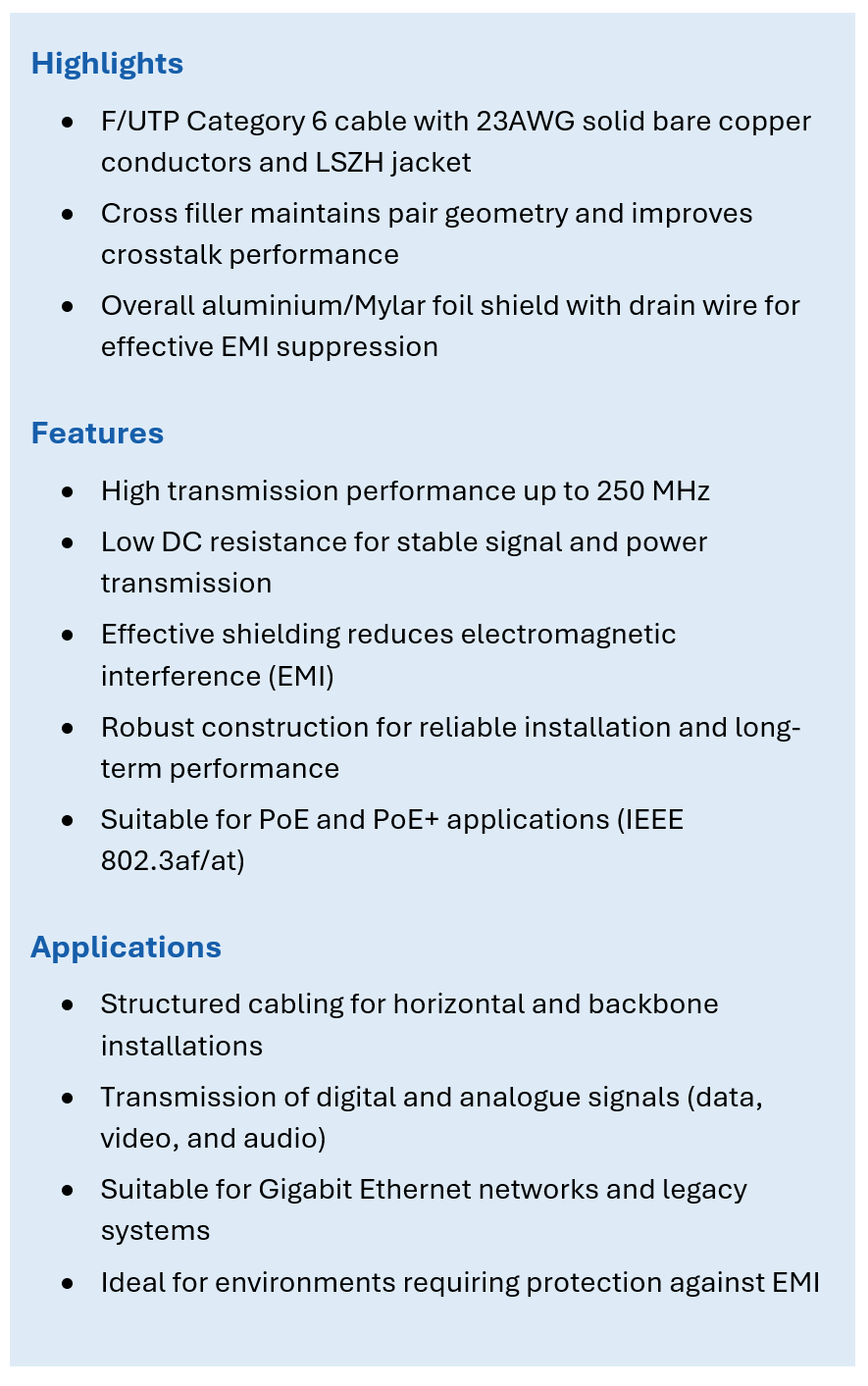

Product Features
- Category 6 performance up to 250 MHz

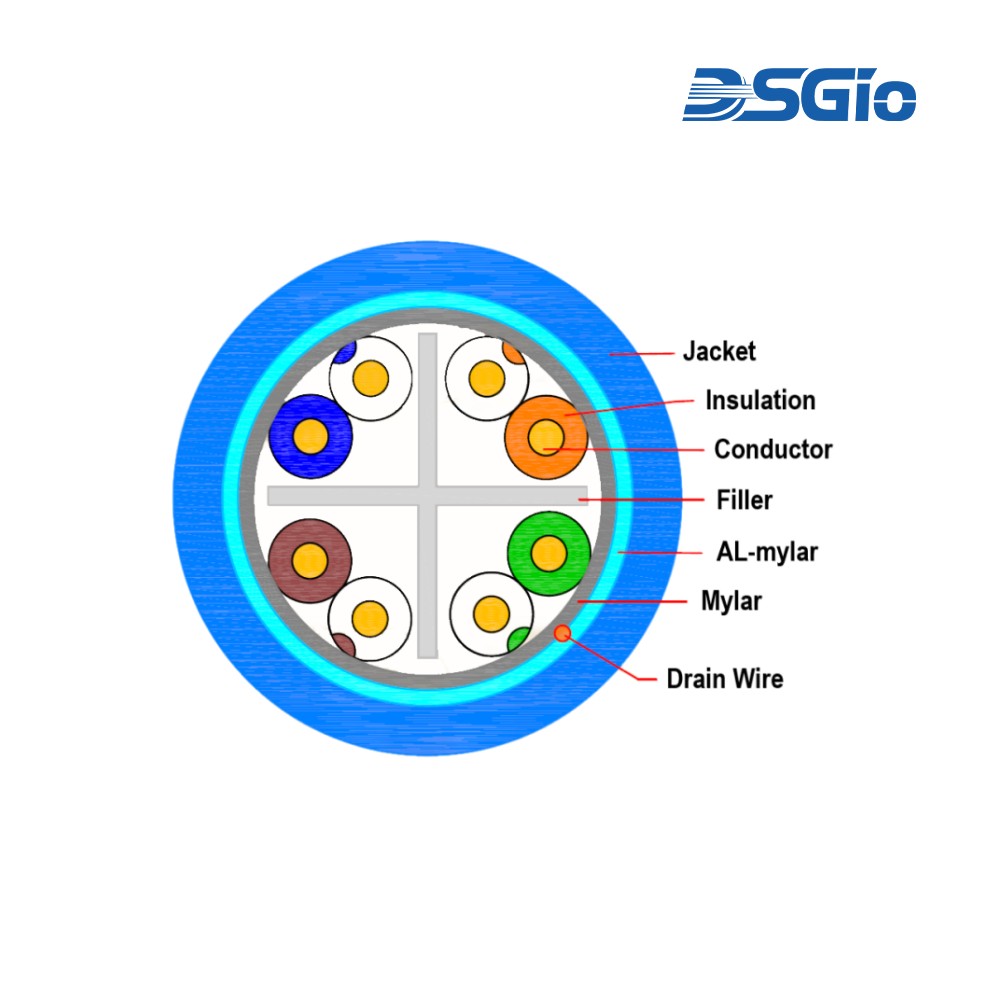

- F/UTP shielded construction with drain wire for EMI protection
- 23AWG solid bare copper for low resistance
- Cross filler minimizes crosstalk and improves signal integrity
- LSZH jacket for fire safety
- IEEE 802.3af/802.3at (PoE/PoE+) compatible

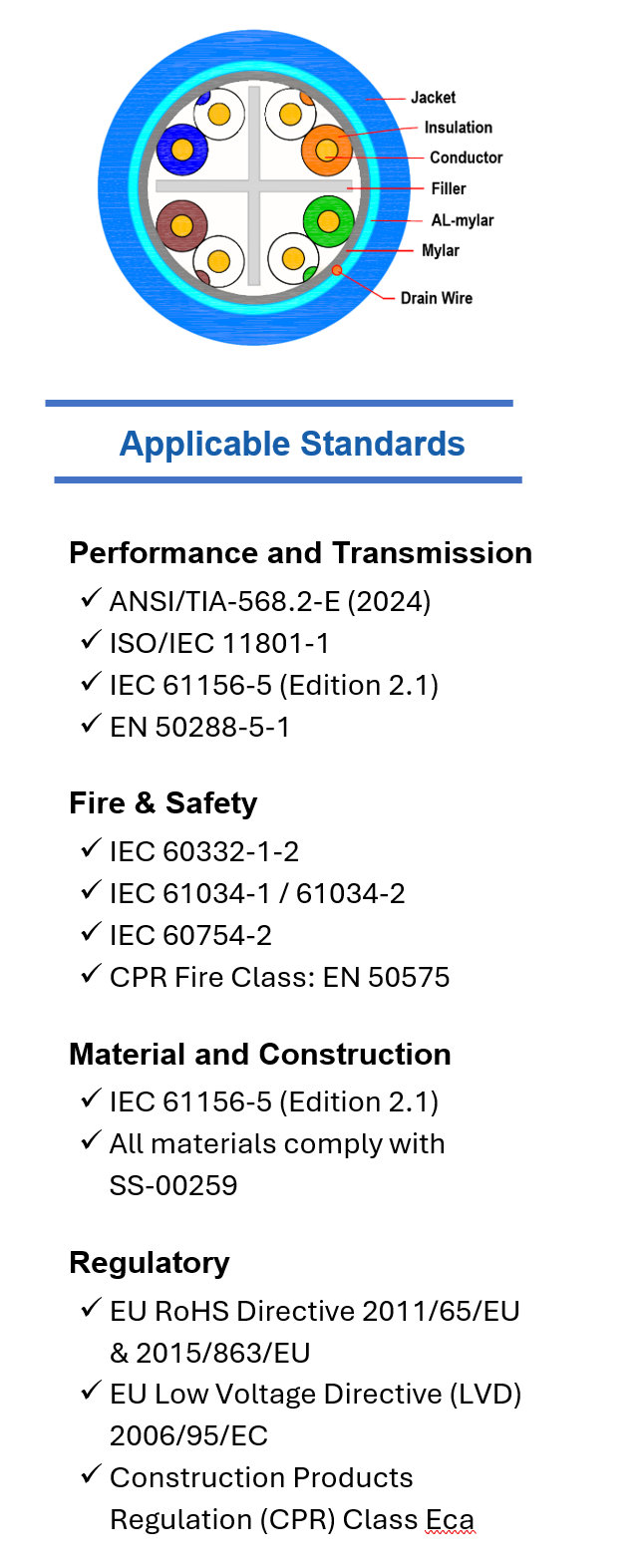

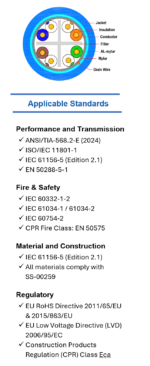

- Meets ANSI/TIA-568.2-E, ISO/IEC 11801, IEC 61156-5, EN 50288
- Operating temperature: -20°C to 60°C

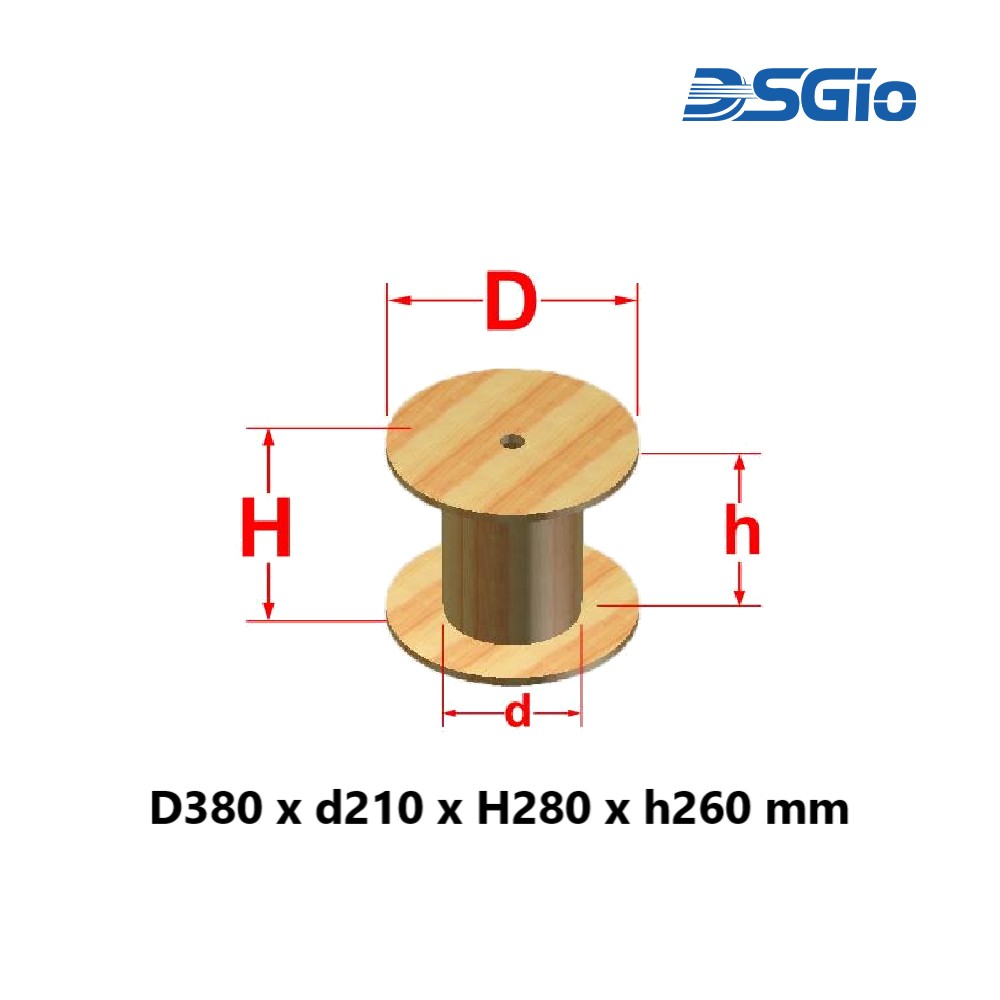

- 305m (1000 ft) length
