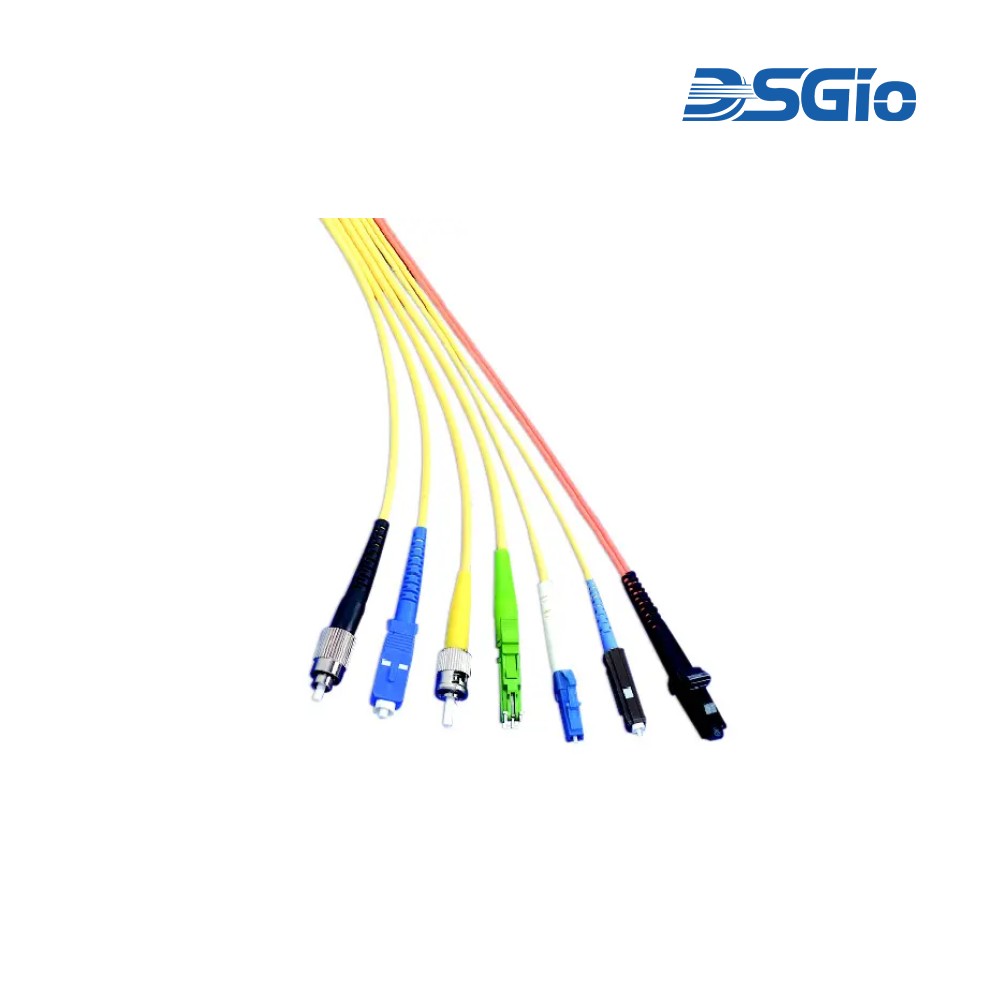

Fiber-Optic-Patch-Cords Fiber Optic Patch Cords

The Fiber Optic Patch Cord series provides optical interconnection for telecommunications, data center, and enterprise network infrastructures, available in single-mode and multi-mode fiber with various connector options.

Brand

SKU: Fiber-Optic-Patch-Cords Category:
Description

Technical Specifications

Fiber TypesSingle-mode and multi-mode (OM1, OM2, OM3, OM4)
Connector OptionsSC, FC, ST, LC, MU, E2000, LX.5, CS, MTRJ
Polishing TypesPC, UPC, APC
Jacket MaterialsPVC, LSZH, OFNR, OFNP
Cable Diameters0.9mm, 1.6mm, 1.8mm, 2.0mm, 3.0mm
ConfigurationsSimplex, Duplex, Round Duplex
Available Lengths2m, 3m, 5m, 10m
Temperature Range-40°C to 70°C
PerformanceLow insertion loss, high return loss
StandardsBellcore GR-326-CORE
Default PolishingUPC

Source: DSGIO — Fiber-Optic-Patch-Cords Fiber Optic Patch Cords. Verify with manufacturer.
