Technical Specifications
| Cable Category | Category 7A (CAT.7A) |
| Shielding | S/FTP (foil and braid shielded) |
| Conductor | 23AWG solid bare copper |
| Frequency | Up to 1000MHz |
| Standards | ISO/IEC 11801 Class FA, IEC 61156-5, HDBaseT 3.0 |
| Jacket Material | FR-PVC (flame-rated) |
| Jacket Rating | UL 1666 CMR |

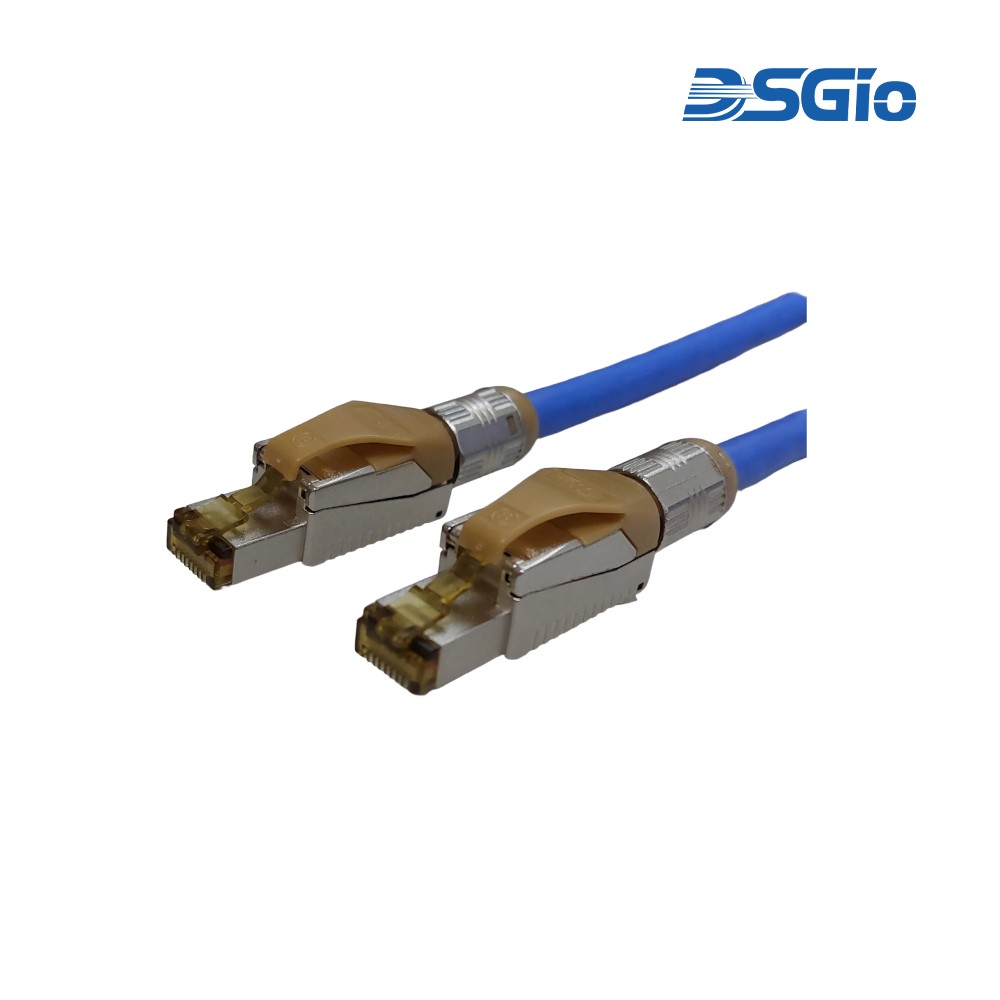

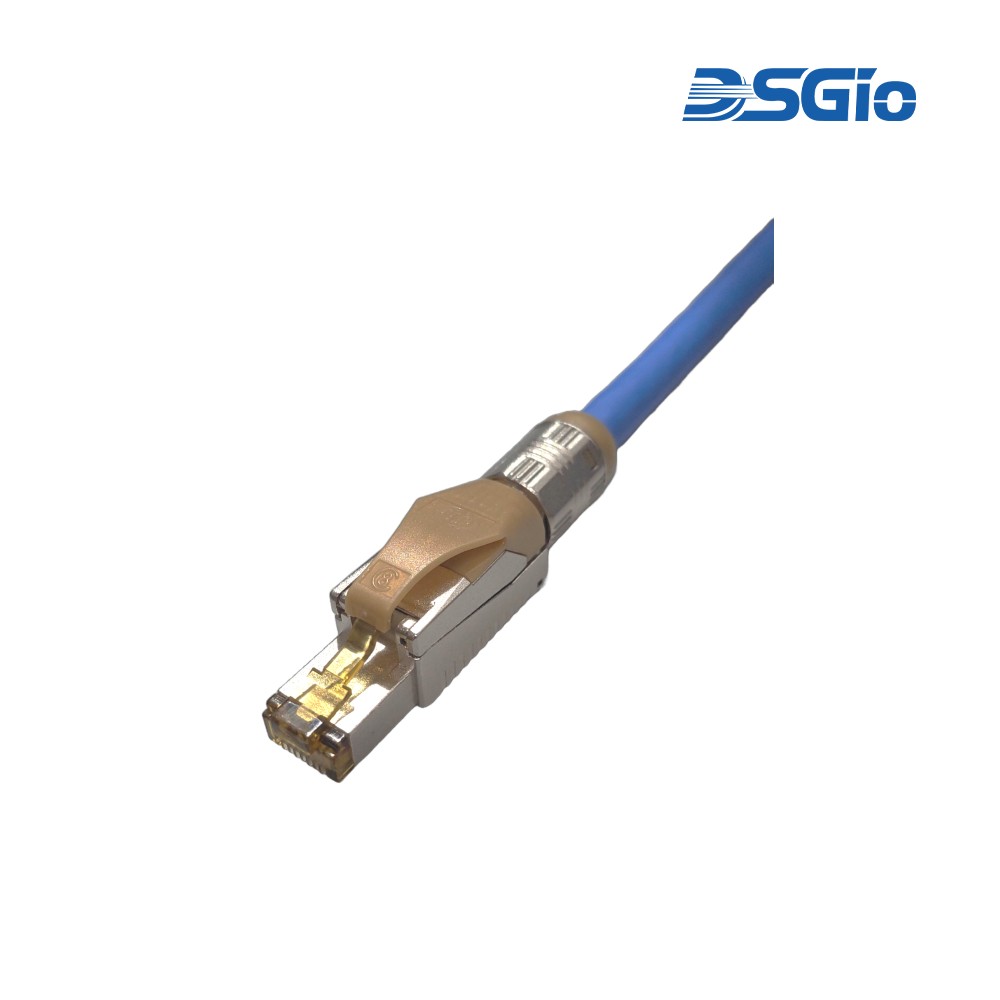

| RJ45 Connector | Fully shielded zinc die-cast; gold-plated (min. 50µin) |
| Braid Coverage | Greater than 40% |
| Applications | 10GBASE-T, HDBaseT 3.0, PoE/PoE+ |
| Mechanical Durability | 750+ RJ45 mating cycles |
| Cable Color | Blue |
| Available Lengths | 40m, 70m, 100m (custom) |
Source: DSGIO — C7A23-FRPVC-XXXBL Cat 7A S/FTP Bulk Cable. Verify with manufacturer.
