Technical Specifications
| Cable Type | DP 2.0 Active Optical Cable |
| SKU | VDC-DF20-XXXM |
| Available Lengths | 10m, 15m, 20m, 25m, 30m, 40m, 50m, 70m, 90m, 100m |
| Maximum Resolution (60Hz) | 8K (7680×4320) |
| Maximum Resolution (High Refresh) | 4K@144Hz |
| Total Bandwidth | 40Gbps |
| Bandwidth per Channel | 10Gbps |
| Standard Compliance | DP2.0 UHBR10 |
| Supported Standards | HBR10, HDCP 1.4/2.2, HDR, HEC |
| Cable Diameter | 4.8mm |

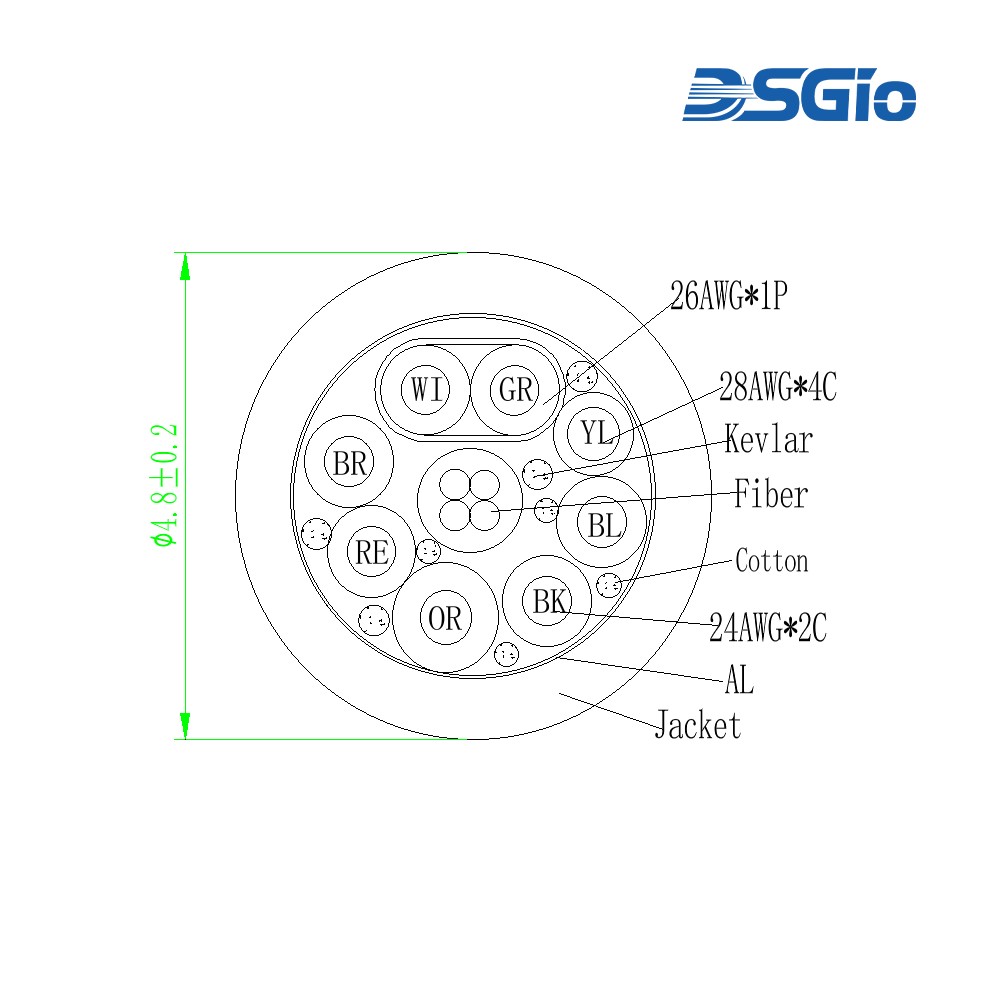

| Construction | 4 fiber + 8 copper wire; OM3 fiber |

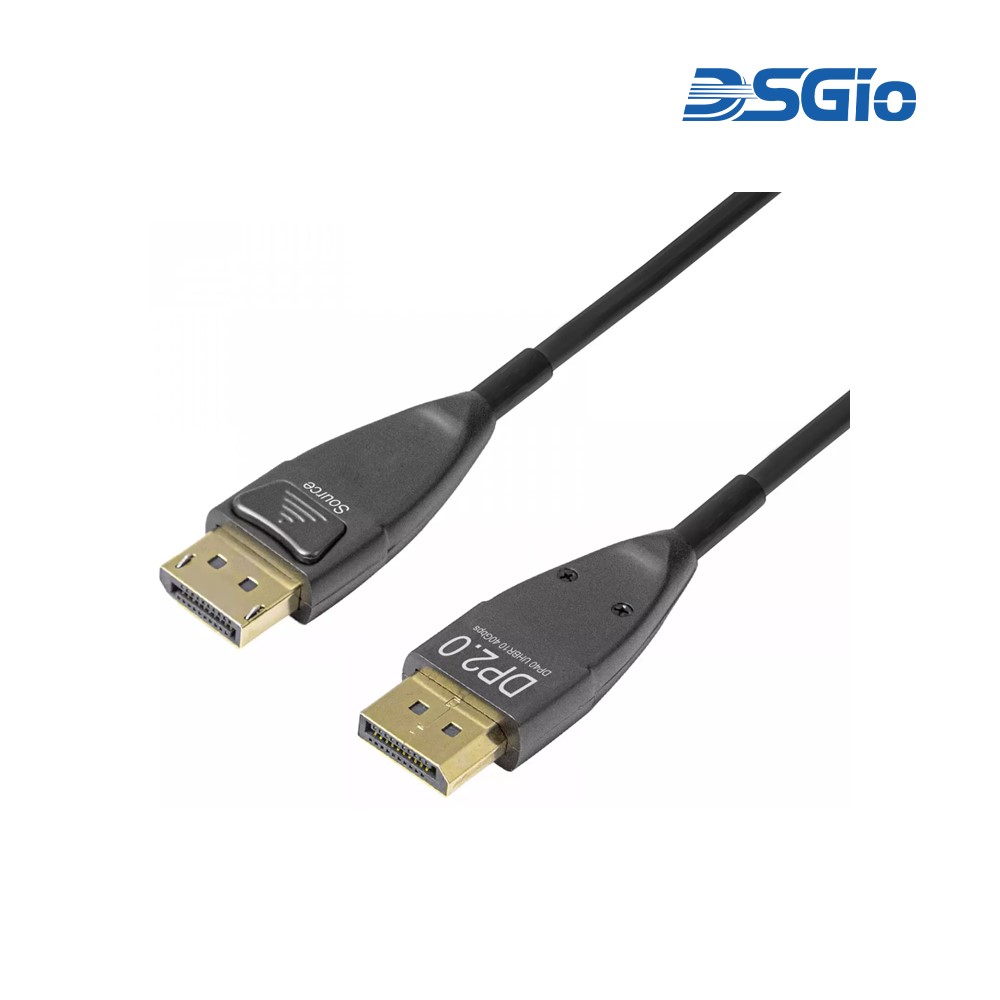

| Connectors | Zinc-alloy DP |
| Shielding | Triple-shielding |
| Temperature Range | -40°C to 70°C |
| Jacket Material | PVC |
| Power | No external power required |
Source: DSGIO — VDC-DF20-XXXM DP 2.0 Active Optical Cable. Verify with manufacturer.
