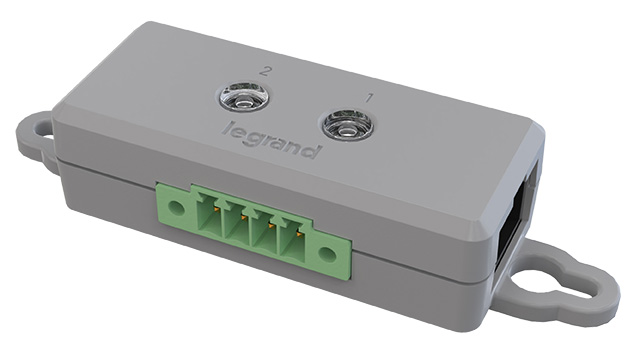

DX2-D2 Dual digital dry contact sensor (60V/0.1A)
Contact for Price
Dual digital dry contact sensor (60V/0.1A)
| Brand | Raritan |
|---|
Part number: DX2-D2
Description
Raritan SmartSensors are plug-and-play environmental monitoring sensors for data centers, server rooms, and IT closures. They connect directly to Xerus-enabled PX Rack PDUs, Inline Meters, Rack Transfer Switches, and PXO Compact PDUs — or to the Smart Rack Controller — via RJ-45 connectors, with no additional cabling required. Dual RJ45 connectors allow daisy-chaining of multiple sensor types on a single bus. Real-time alerts notify administrators of environmental and security events before they cause downtime.
Is an actuator that detects and controls a signal to/from connected third-party dry contacts.
Specifications
| Sensor Type | Dry Contact |
| Contacts | 2 dry contacts |
| Connector | RJ-45 |
| Interface | Raritan SmartSensor bus (Xerus-compatible) |
| Compatible Devices | PX Rack PDUs, Inline Meters, Rack Transfer Switches, PXO Compact PDUs, Smart Rack Controller |
| Mounting | Rack or wall mount |
| Standard | Raritan DX2 SmartSensor Series |
Source: Raritan
