Technical Specifications

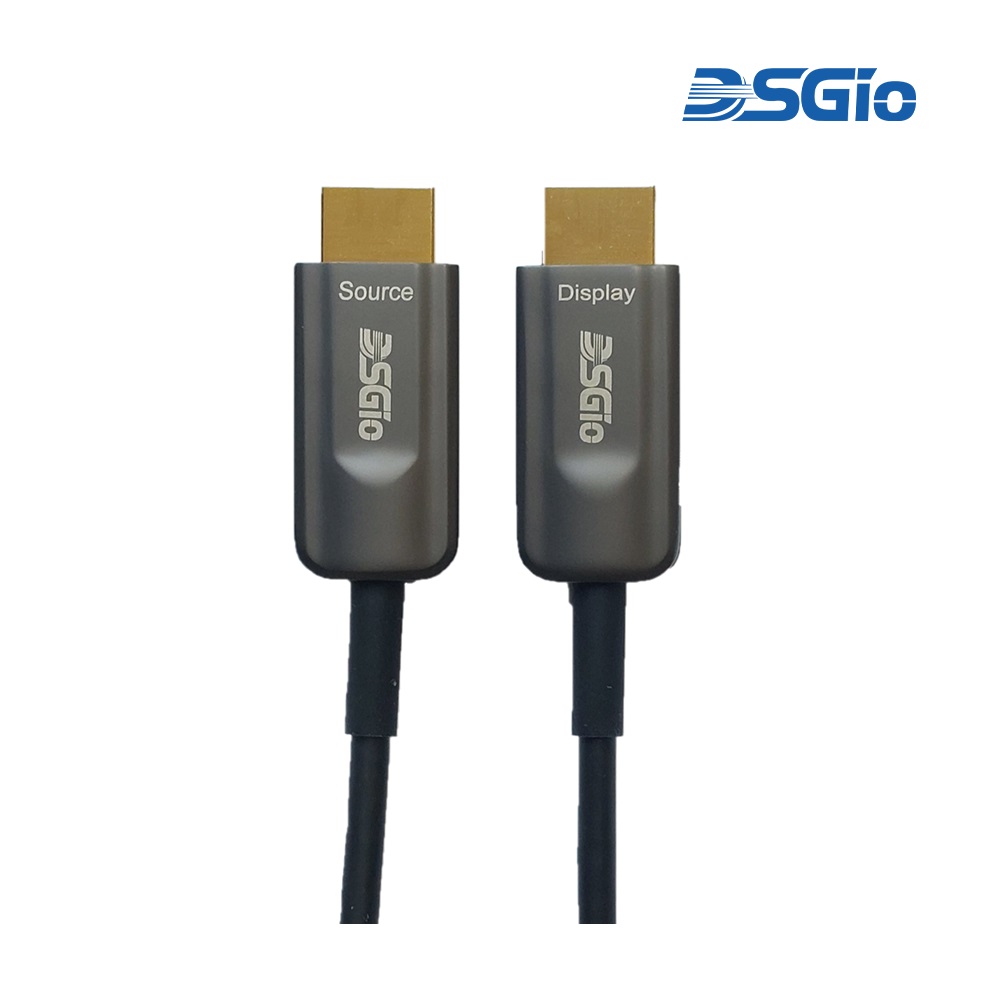

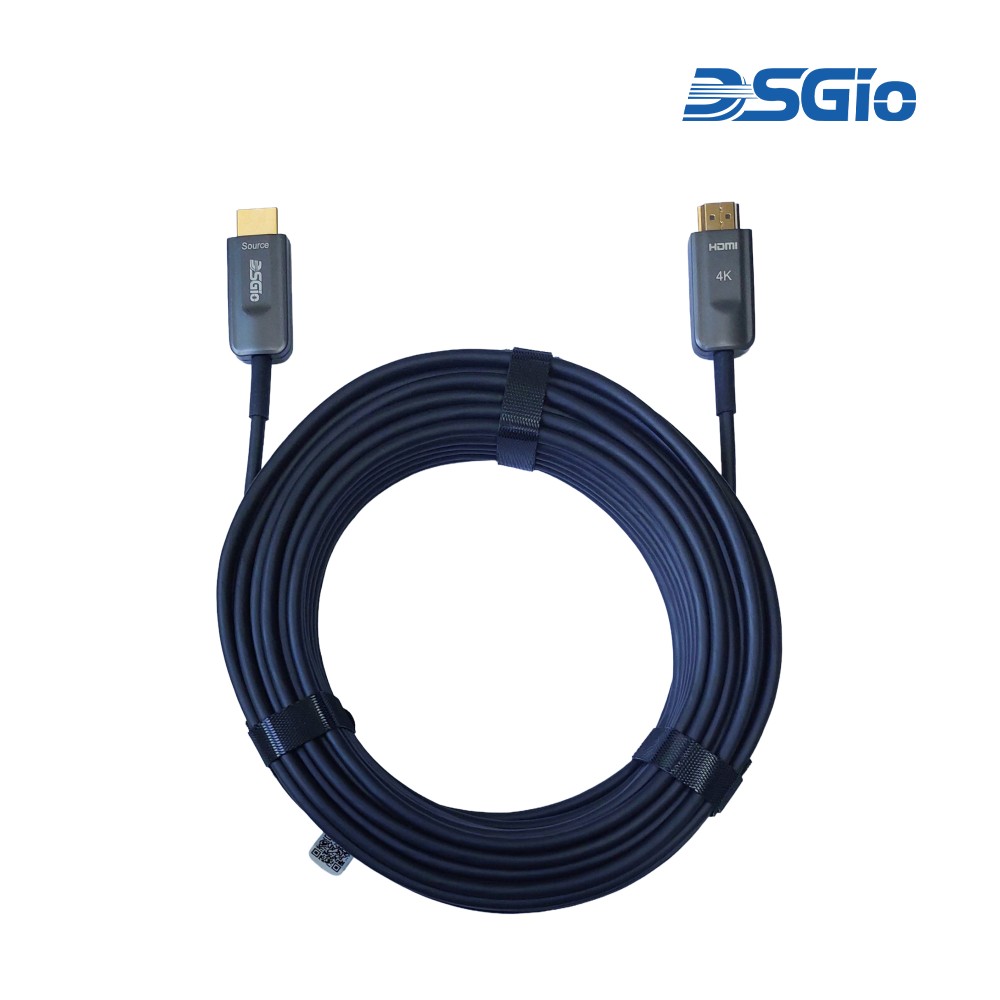

| Cable Type | HDMI 2.0 Type A Male to Type A Male Active Optical Cable |
| Maximum Data Rate | 18Gbps |
| Video Resolution | 4K@60Hz (4:4:4) |
| Available Lengths | 10m, 15m, 20m, 25m, 30m, 40m, 50m, 70m, 90m, 100m |
| Cable Diameter | 4.5mm |
| Bending Radius | 45mm |

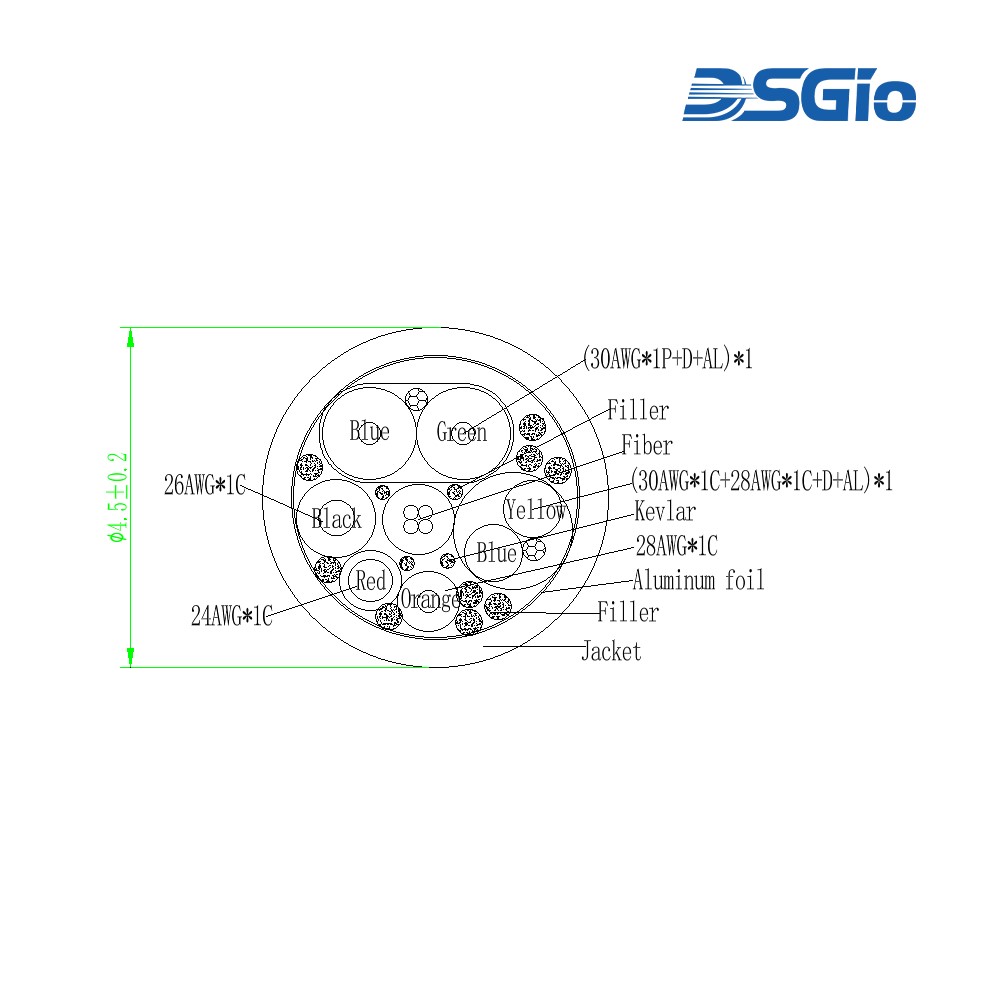

| Construction | 4 optical fibers + 7 copper wires; OM3 fiber |
| Jacket Material | PVC |
| Temperature Range | -40°C to 70°C |
| Audio | Dolby TrueHD, DTS-HD Master Audio; up to 32 channels at 1536kHz |
| Power Consumption | 250mW maximum |
| Compliance | EDID, CEC, HDCP 2.2, HDR, HEC, ARC |
| Power | No external power required |
Source: DSGIO — VDC-HF20-XXXM HDMI 2.0 Active Optical Cable. Verify with manufacturer.
