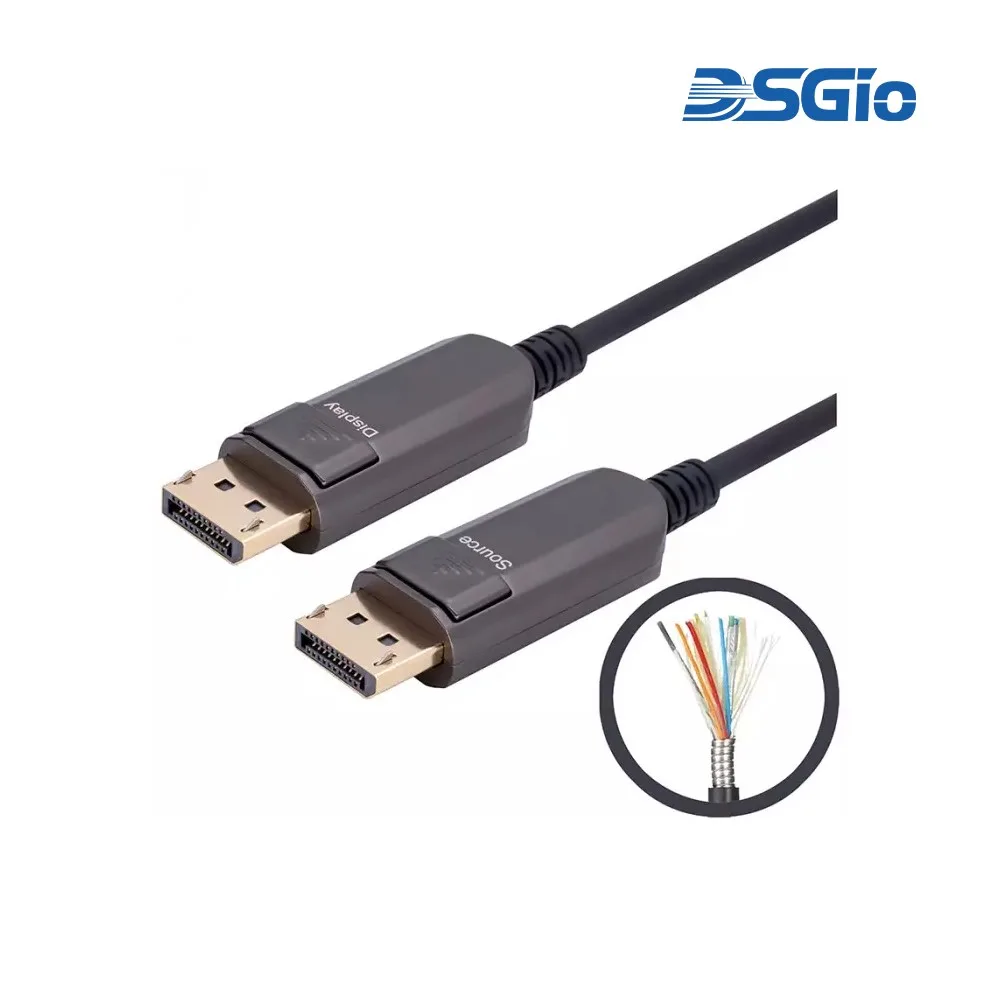

VDC-DAF14-XXXM Armored DP 1.4 Active Optical Cable
Contact for Price
Our Armored DisplayPort 1.4 Active Optical Cable combines rugged construction with cutting-edge display technology, supporting resolutions up to 8K and HDR over distances up to 100 meters.
| Brand | DSGIO |
|---|
Part number: VDC-DAF14-XXXM
Description
Technical Specifications
| Cable Type | Armored DisplayPort 1.4 Active Optical Cable |
| Available Lengths | 10m, 15m, 20m, 25m, 30m, 40m, 50m, 70m, 90m, 100m |
| Maximum Resolution | 8K (7680×4320)@60Hz 4:2:0 |
| Bandwidth | 32.4Gbps total; 8.1Gbps per channel |
| Standards | DP 1.4, EDID, HBR3, HDCP 2.2, HDR |
| Audio | Up to 32 channels at 1536kHz |
| Cable Diameter | 5.8mm |
| Armor | 200CU stainless steel |
| Jacket Material | TPU |
| Crush Resistance (Long-term) | 100kg |
| Crush Resistance (Short-term) | 200kg |
| Shielding | Triple-shielding |
| Fiber | OM3 |
| Temperature Range | -40°C to 70°C |
| Power | No external power required |
Source: DSGIO — VDC-DAF14-XXXM Armored DP 1.4 Active Optical Cable. Verify with manufacturer.
Source: DSGIO — Armored DP 1.4 Active Optical Cable. Verify with manufacturer.
