Technical Specifications

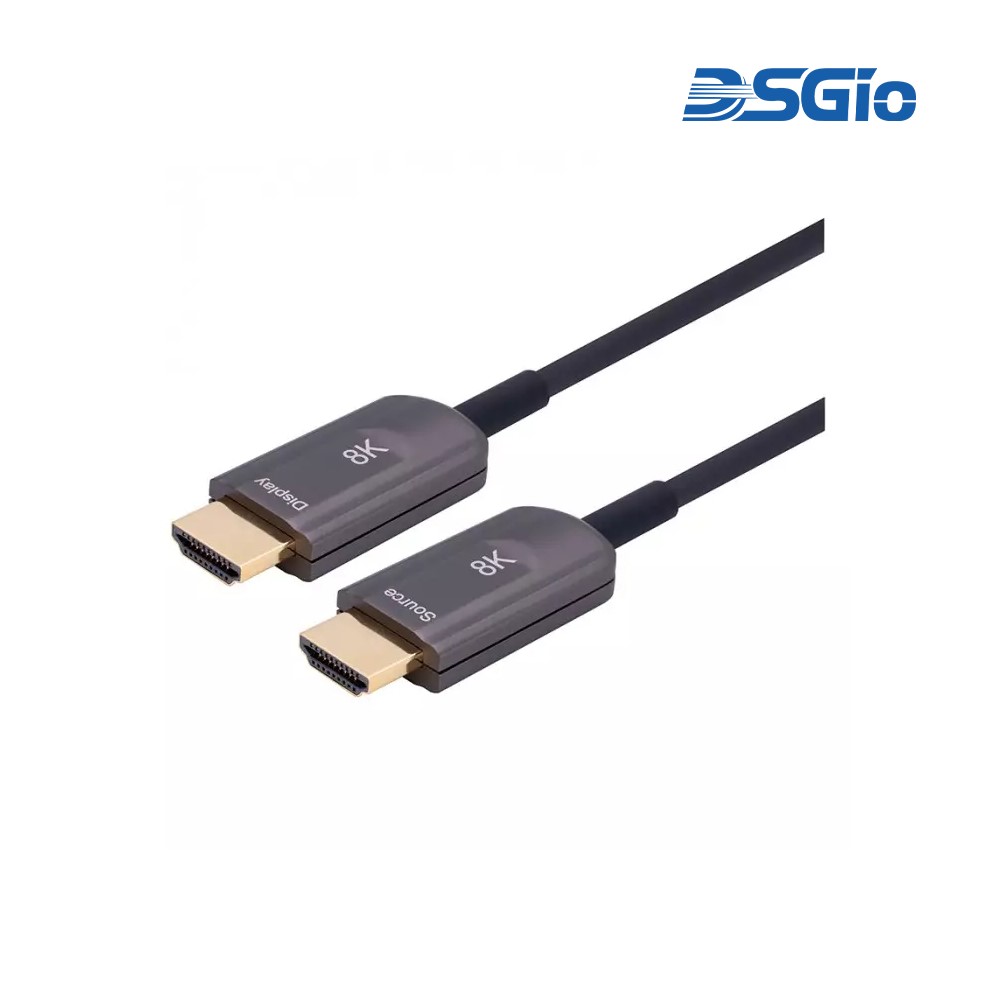

| Cable Type | HDMI 2.1 Type A Male to Type A Male Active Optical Cable |
| Maximum Data Rate | 48Gbps (12Gbps per lane) |
| Maximum Resolution | 8K@60Hz (4:4:4); 4K@120Hz |
| Available Lengths | 10m, 15m, 20m, 25m, 30m, 40m, 50m, 70m, 90m, 100m |
| Cable Diameter | 4.5mm |
| Bending Radius | 45mm minimum |

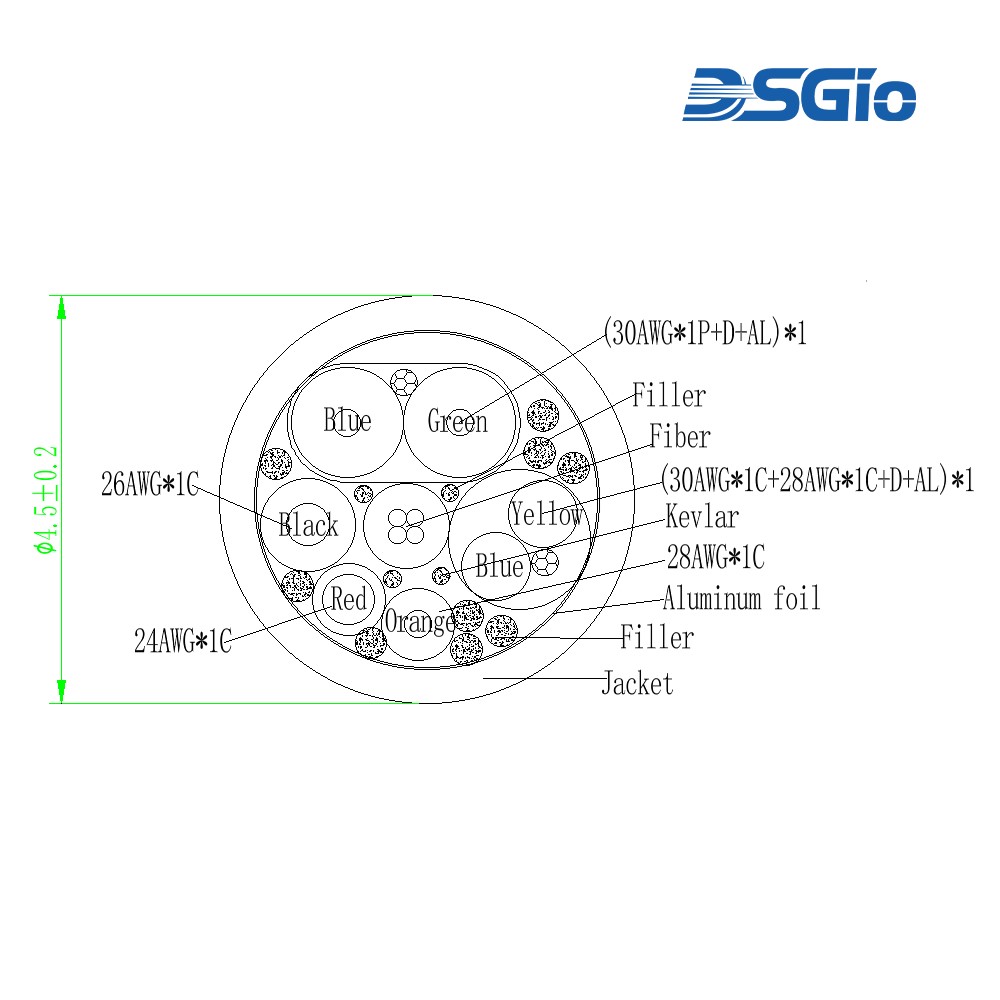

| Construction | 4 optical fibers + 7 copper wires; OM3 fiber |
| Jacket Material | PVC |
| Temperature Range | -40°C to 70°C |
| HDMI 2.1 Features | eARC, VRR, QMS, QFT, ALLM, DSC |
| HDR Formats | Dolby Vision, HDR10+ |
| HDCP | HDCP 2.3 |
| Power | None (plug-and-play) |
| ATC Certified Lengths | 1m, 2m, 3m, 5m, 7.5m, 10m, 12m, 15m, 20m |
Source: DSGIO — VDC-HF21-XXXM HDMI 2.1 Active Optical Cable. Verify with manufacturer.
