PX3-5193R

⚠ End-of-life product. This product has been discontinued. Contact us for a replacement recommendation.
Contact for Price

Monitored & switched rack PDU (1U, 3.7kVA, 8 outlets). 230v, 32A – IEC 32A plug; 6x C13, 2x C19; 16A CB; FEATURES: Xerus

Brand

Part number: PX3-5193R

SKU: PX3-5193R Category:
Description

Monitored & switched rack PDU (1U, 3.7kVA, 8 outlets). 230v, 32A – IEC 32A plug; 6x C13, 2x C19; 16A CB; FEATURES: Xerus

Technical Specifications

Product CategoryIntelligent Rack PDU
PX3 ProcessorARM9 400 MHz (Atmel SAM9G20)
PX3 Flash Memory16MB NOR Flash
PX3 RAM64MB SDRAM
PX3 DisplayHigh-Resolution Colour TFT (220 x 176)
PX2 Display7-Segment LED Display
CascadingUSB cascading, up to 16 devices
Hot Swap ControllerYes (PX3); No (PX2)
Input Voltage Range100V single phase to 480V three phase
Input Current Range12A up to 100A per line
Max Input CapacityUp to 67 kVA
Max Outlet DensityUp to 60 outlets per chassis
Input Cord LengthStandard 3 m (10 ft); optional custom up to 10 m
Metering Accuracy±1% (ISO/IEC 62053-21 / EU2014/32 MID compliant)
Metered ParameterskWh, Voltage (V), Current (A), Active Power (kW), Apparent Power (kVA), Energy (kWh), Power Factor
Remote Outlet SwitchingYes — configurable power sequencing, load shedding, last-known-state power-on
Networking10/100 BaseT Ethernet; optional Gigabit Ethernet; WiFi 802.11a/b/g/n
Management ProtocolsHTTP(S), SSH CLI, Telnet, RS-232, SNMP v2/v3, SMTP, IPv6/IPv4, Modbus/TCP
AuthenticationLDAP, Active Directory, RADIUS, local credential database
Environmental Sensor CapacityUp to 32 plug-and-play sensors per PDU
Sensor TypesTemperature, humidity, airflow, differential pressure, water leak, contact closure
Operating TemperatureUp to 60°C (140°F) maximum ambient
Operating HumidityUp to 85% relative humidity
Form Factors0U vertical, 1U horizontal, 2U horizontal
WarrantyStandard 2 years; optional up to 5 years
CertificationsUL, Canada ICES-003, FCC Part 15 Class A, RoHS, CE, SAA, EAC

Source: Raritan — Intelligent Rack PDUs. Verify specifications with manufacturer before purchase.

Shipping & Delivery

Related products

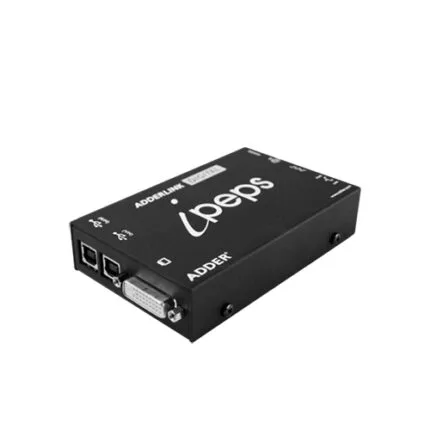

Adder Adder AdderLink Digital IPEPS Extender (ALD-IPEPS) (ALD-IPEPS) — The ADDERLink® Digital ipeps enables you to remotely access and control your critical computing…
