PX4-1630I2R-C8E8 3PH WYE, 400/415V, 30/32A, 24 outlets: 18x C13, 6x Cx, 2U horizontal, Input Metered
Contact for Price
3PH WYE, 400/415V, 30/32A, 24 outlets: 18x C13, 6x Cx, 2U horizontal, Input Metered
| Brand | Raritan |
|---|
Part number: PX4-1630I2R-C8E8
Description
The Raritan PX4 Intelligent Rack PDU combines 30+ years of battle-tested intelligence with industry-proven outlet technology for unparalleled visibility, flexibility, and security. Built on the Xerus™ Technology Platform, the PX4 delivers advanced power quality monitoring, HDOT® and HDOT Cx® high-density outlet technology, RamLock mechanical cord-locking, a hot-swappable iX Controller, circuit breaker trip forensics with waveform capture, and enterprise-grade security. It supports metering at the inlet, outlet, and circuit breaker level with ±0.5% accuracy, and integrates natively with Raritan’s Power IQ DCIM software and CommandCenter Secure Gateway.
Specifications
| Phase | Three Phase WYE (3PH WYE) |
| Input Voltage | 400 / 415V |
| Input Current | 30 / 32A max |
| Total Outlets | 24 |
| Outlet Types | 18x C13 |
| Outlet Metering | Yes — per-outlet power monitoring |
| Product Series | PX4 Intelligent Rack PDU |
| Technology Platform | Xerus™ Technology Platform |
| Controller | iX Controller (hot-swappable, no power interruption) |

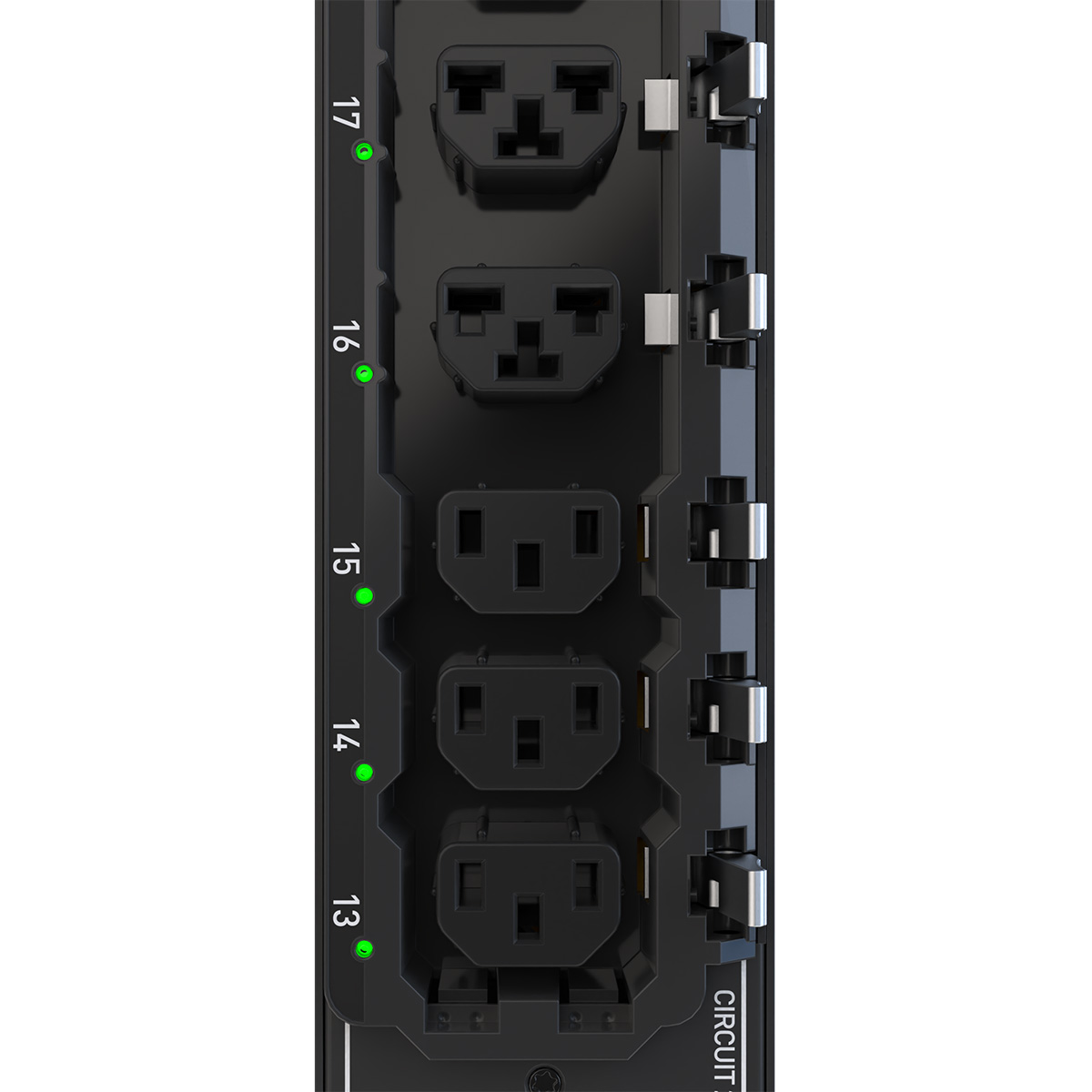

| Outlet Technology | HDOT® / HDOT Cx® High Density Outlet Technology; RamLock mechanical cord-locking |
| Metering | Inlet, outlet, and circuit breaker level; ±0.5% accuracy |
| Power Quality Monitoring | Total Harmonic Distortion, reactive power, phase angle, power factor, apparent energy, inrush current |
| Circuit Breaker Trip Forensics | Waveform capture; Trip Cause Outlet Handling to isolate defective equipment |
| Security | Enhanced Security Suite; TLS/SSL encryption; role-based access |
| Environmental Monitoring | Supports DX2 SmartSensors (temperature, humidity, airflow, water, security) |
| DCIM Integration | Raritan Power IQ DCIM software; CommandCenter Secure Gateway |
| Protocol Support | SNMP v1/v2c/v3, Modbus TCP, REST API, IPMI, EnergyWise |
| Form Factor Options | 0U vertical, 1U, 2U, 3U horizontal |
| Infeed | 45° angled infeed with Universal Input (UPDU) option for single and three-phase |
Source: Raritan
