UDC-CCF10G-XXXM (Data Only)
Contact for Price

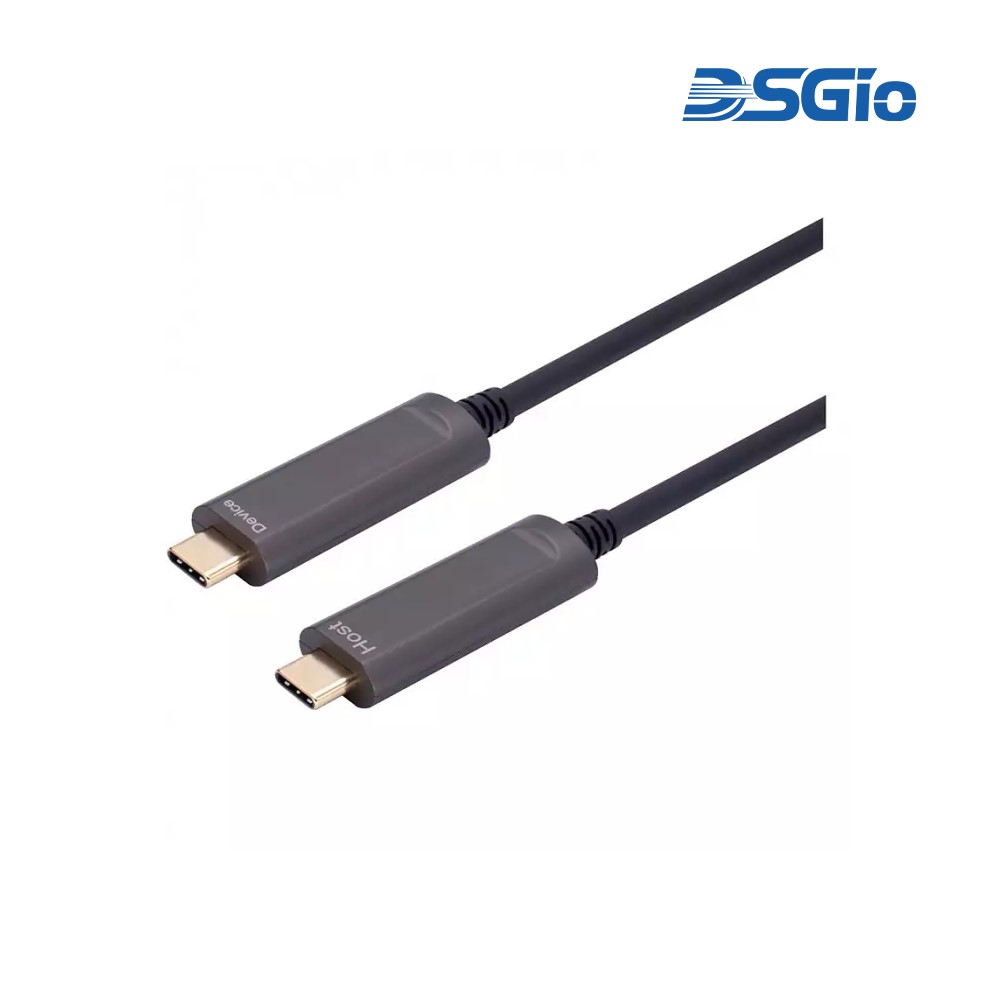

USB 3.2 Gen2x1 Type-C Active Optical Cable combining optical fiber technology with high-speed data transmission, offering lengths up to 15m and supporting 10Gbps data rates.
| Brand | DSGIO |
|---|
Part number: UDC-CCF10G-XXXM
Description
Technical Specifications
| Cable Type | USB-C Active Optical Cable (Data Only) |
| Connector | USB Type-C Male (both ends); Zinc Alloy, gold-plated |
| Data Transfer Rate | 10Gbps |
| USB Standard | USB 3.2 Gen 2×1 (USB 3.1) |
| Backward Compatibility | USB 2.0/1.1 |
| Available Lengths | 5m, 8m, 10m, 12m, 15m |
| Cable Diameter | 4.5mm |

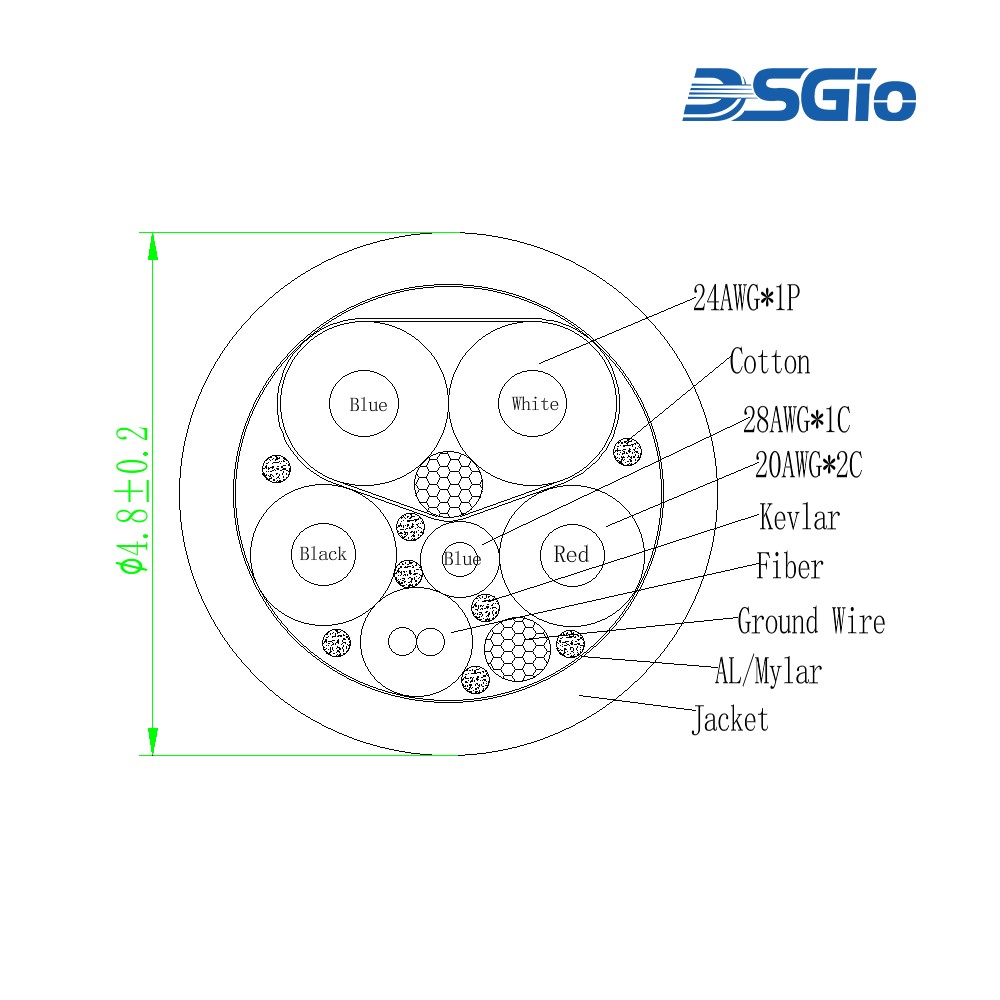

| Construction | 4 fiber + 5 copper wires; OM3 fiber |
| Jacket Options | PVC (standard), CMP, LSZH (optional) |
| Power Delivery | Up to 5V/1.5A |
| External Power | Not required |
| Hot Plug | Yes |
| Installation | Plug-and-play |
Source: DSGIO — UDC-CCF10G-XXXM (Data Only). Verify with manufacturer.
Source: DSGIO — UDC-CCF10G-XXXM (Data Only). Verify with manufacturer.
