Overview

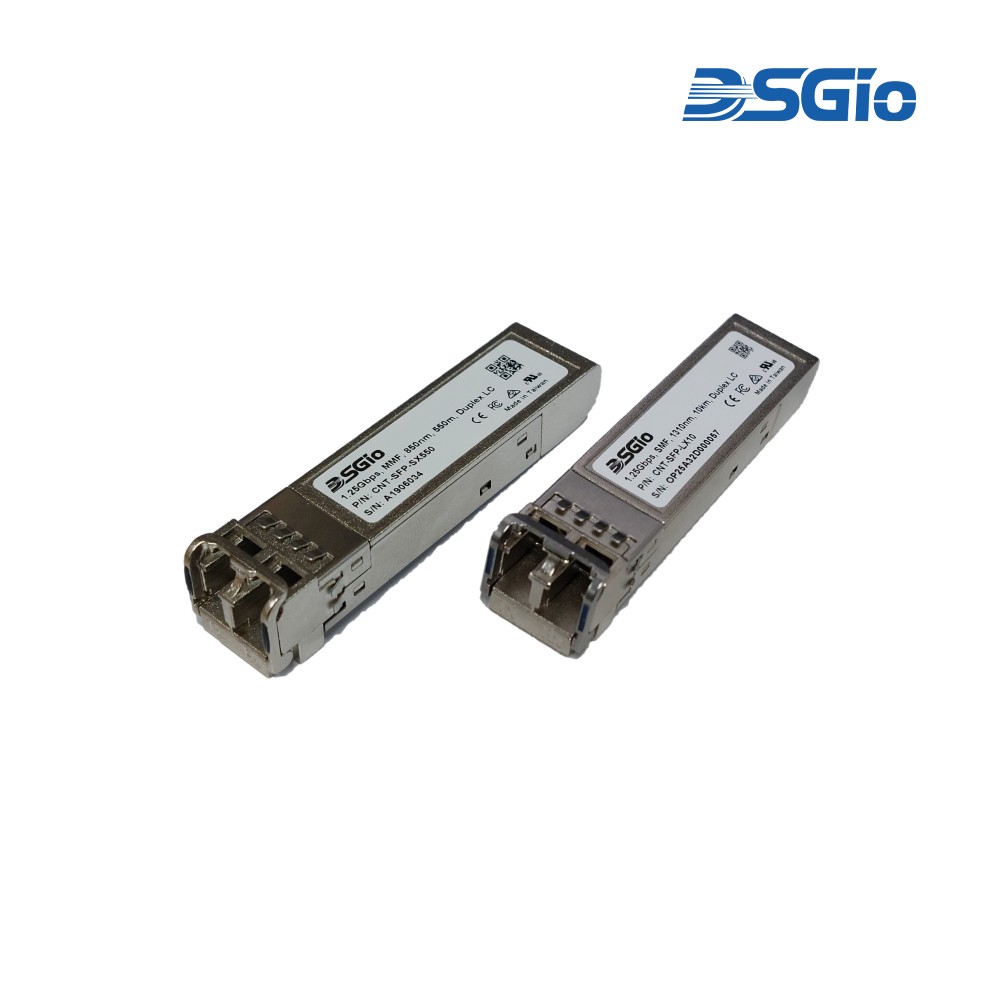

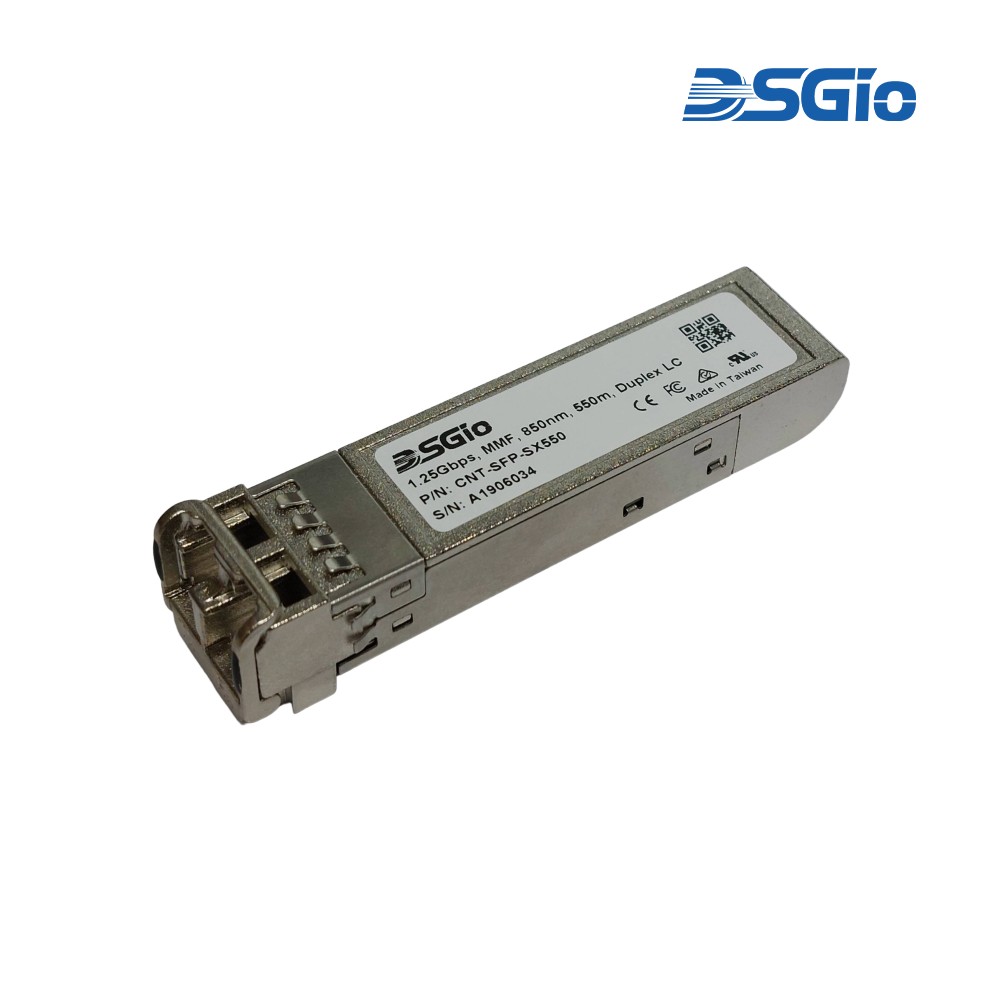

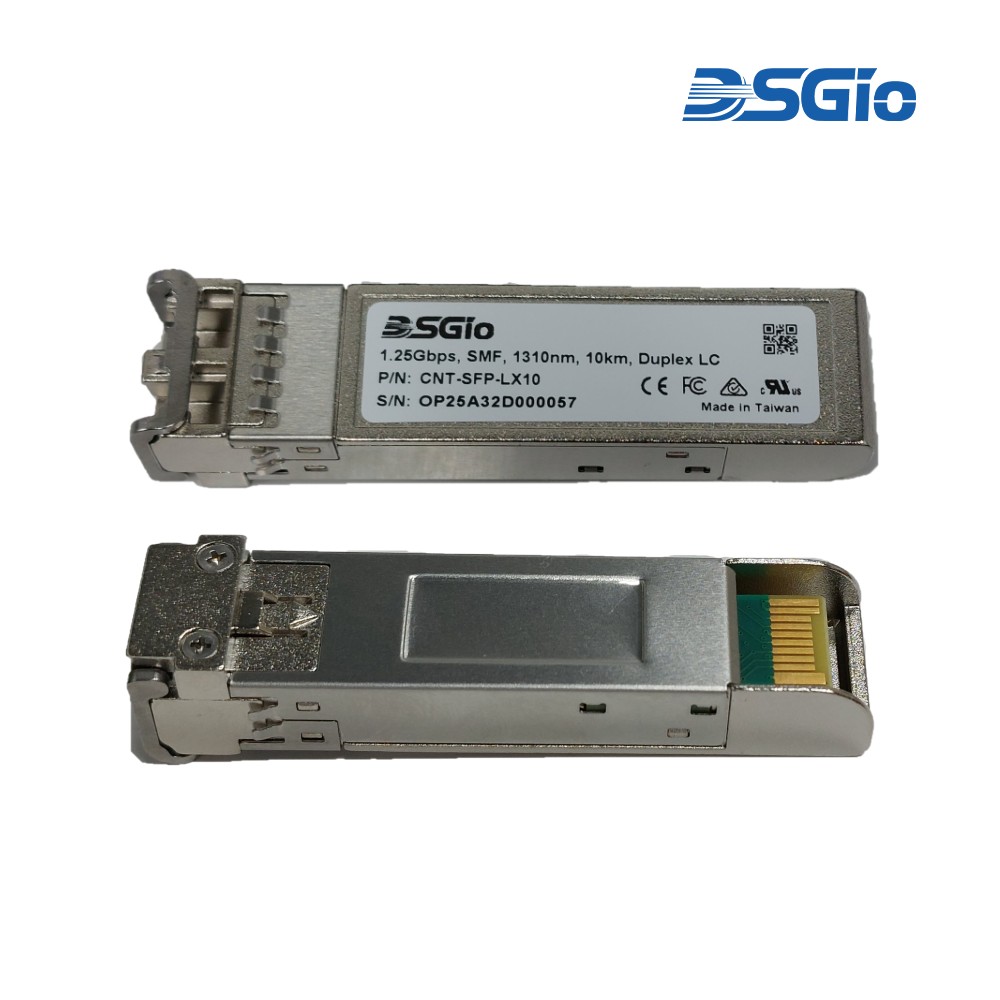

These modules operate at 1.25Gbps data rates with SFP MSA and SFF-8472 standard compliance, duplex LC receptacles, and digital diagnostic monitoring capabilities. Four variants address different networking needs: SX550 (850nm multimode, 550m), LX10 (1310nm single-mode, 10km), EX40 (1550nm single-mode, 40km), and ZX70 (1550nm single-mode, 70km).
Product Features
- 1.25Gbps data rates; SFP MSA and SFF-8472 standard compliance
- Duplex LC receptacles; digital diagnostic monitoring
- Single +3.3V power supply operation
- RoHS compliance
- Commercial (0°C-70°C) and industrial (-40°C-85°C) temperature options
- Applications include Fiber Channel, SONET/SDH, and data communications
