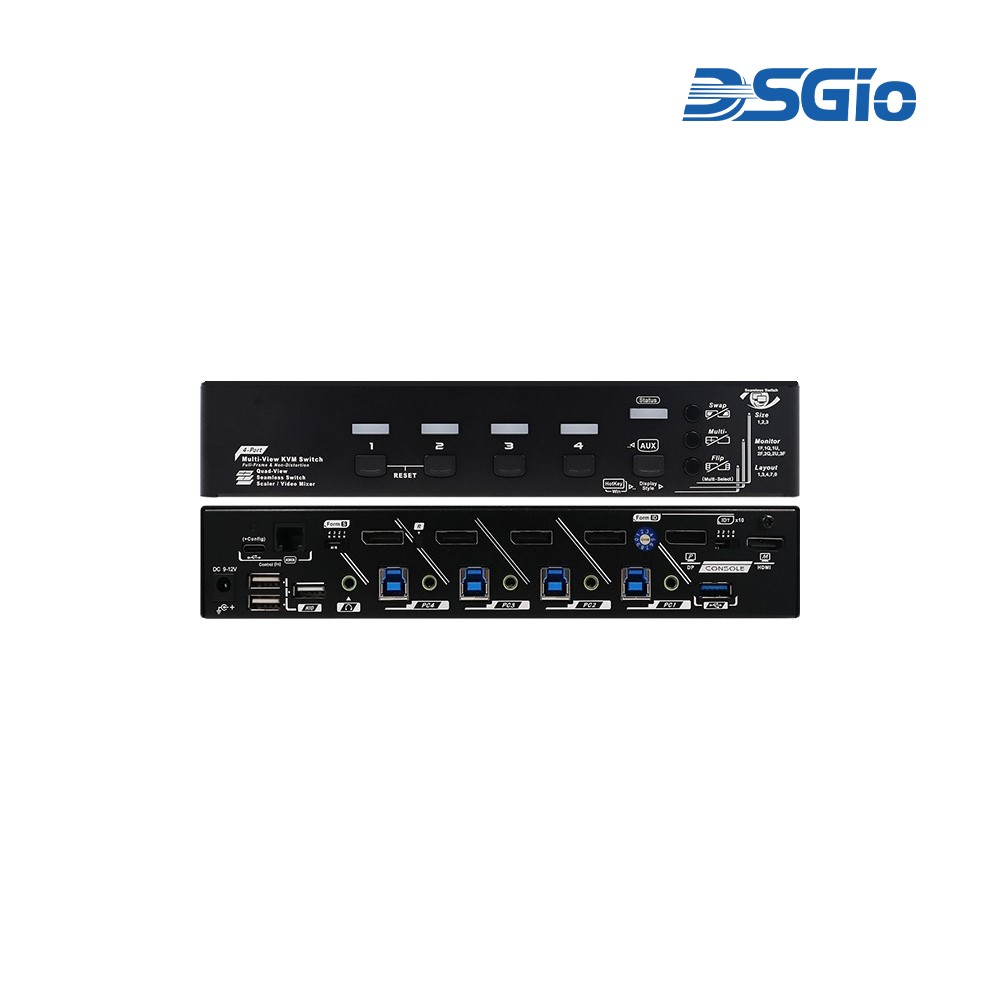

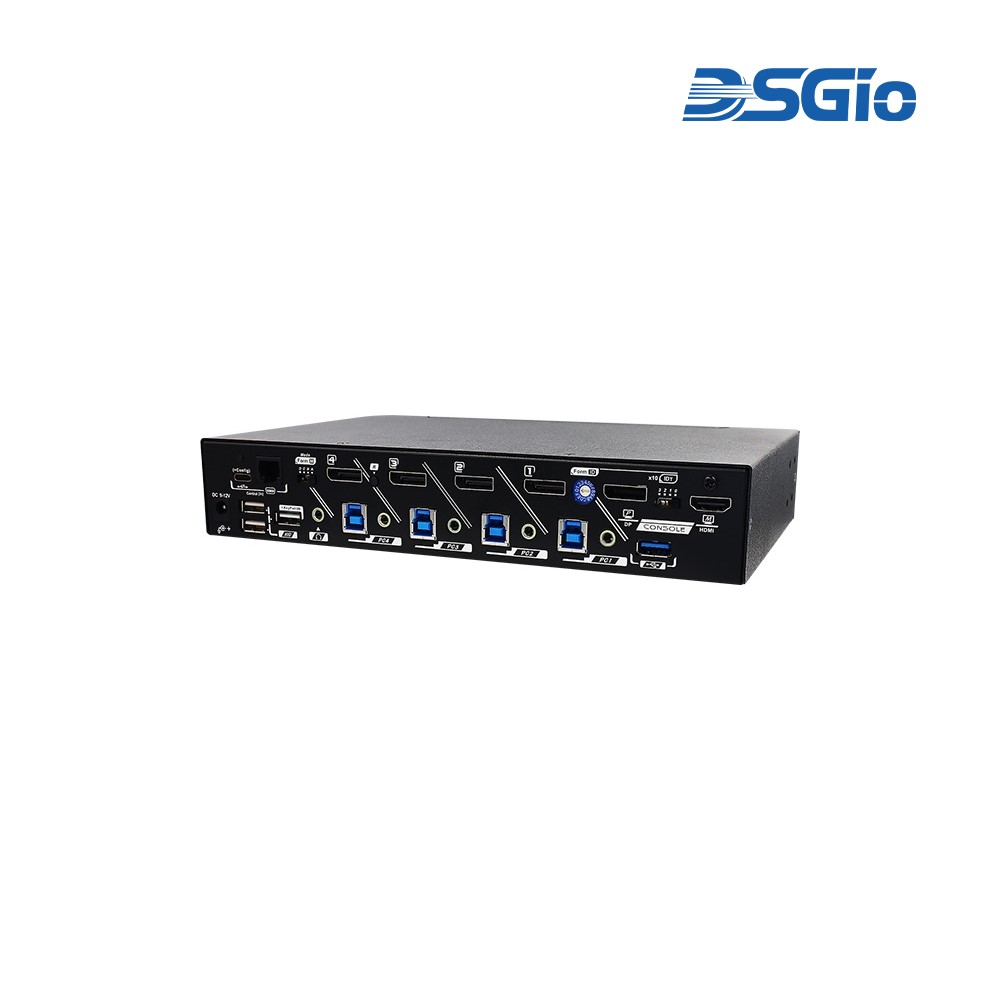

KMV-4KD41-U30R 4-Port 4K60 DisplayPort KVM Multiview Switch, Quad/PIP/PBP

4 Ports 4K60 DisplayPort KVM Multiview Switch with Seamless Switching, Scaler, Quad View, PIP, PBP, Mouse Roaming, Button/Hotkey/Serial/Keypad IN Control.

Brand

SKU: KMV-4KD41-U30R Category:
Description

Technical Specifications

Maximum Resolution4K@60Hz (4:4:4)
Video StandardDisplayPort input; DisplayPort and HDMI outputs
HDCP ComplianceHDCP 2.2 and 1.4
Supported Aspect Ratios16:9, 21:9, 32:9
Computer Inputs4 ports

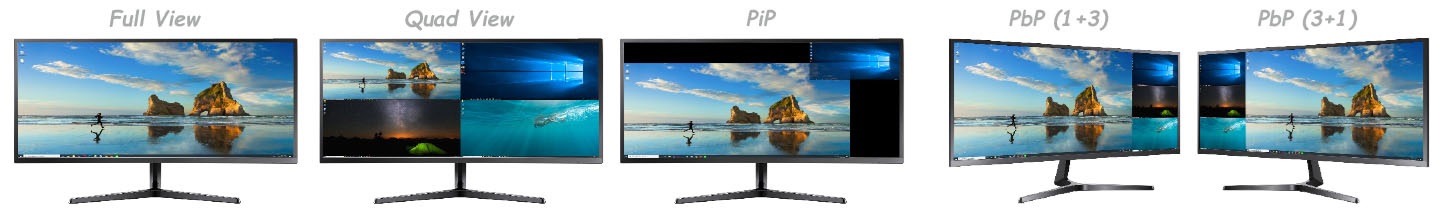

Display ModesSingle, Quad, PiP, 1+3 PbP, 3+1 PbP
USB Speed5Gbps (USB 3.2 Gen 1)
Serial InterfaceRJ-11 (RS-232 to RJ11), USB-C virtual COM

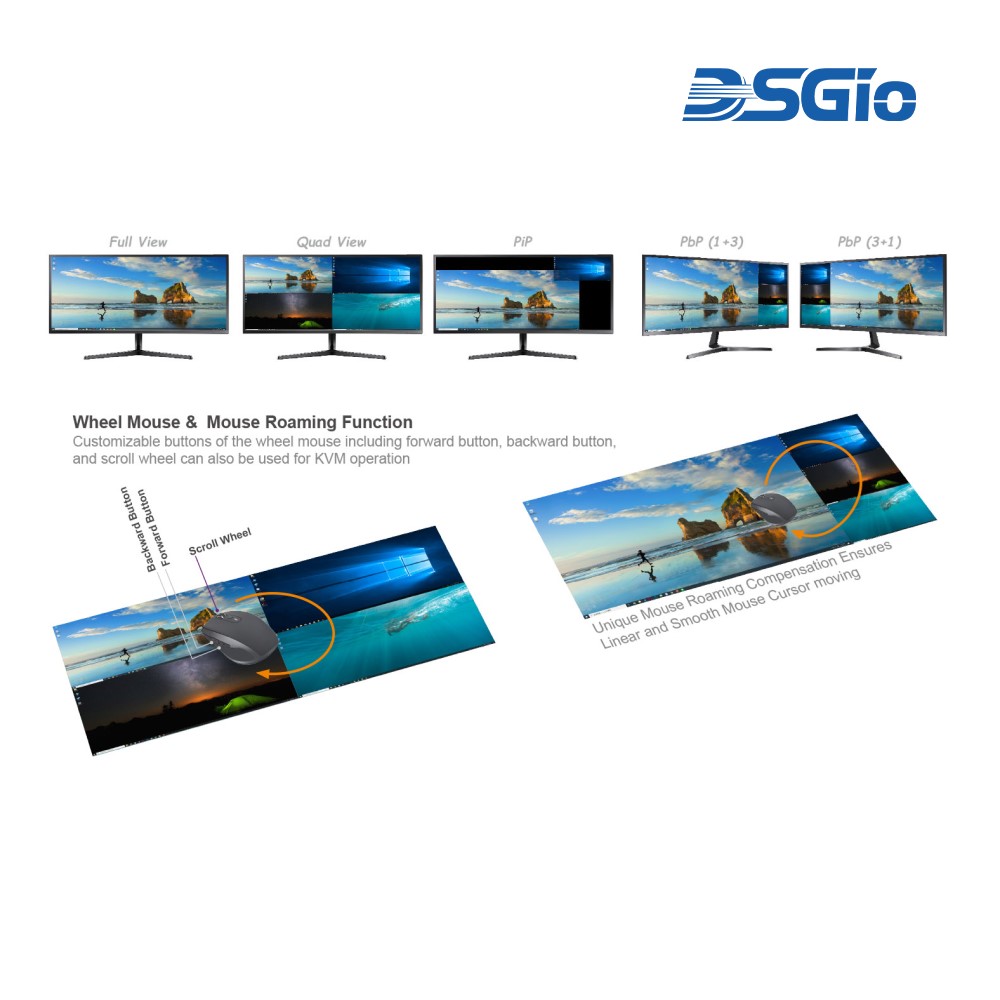

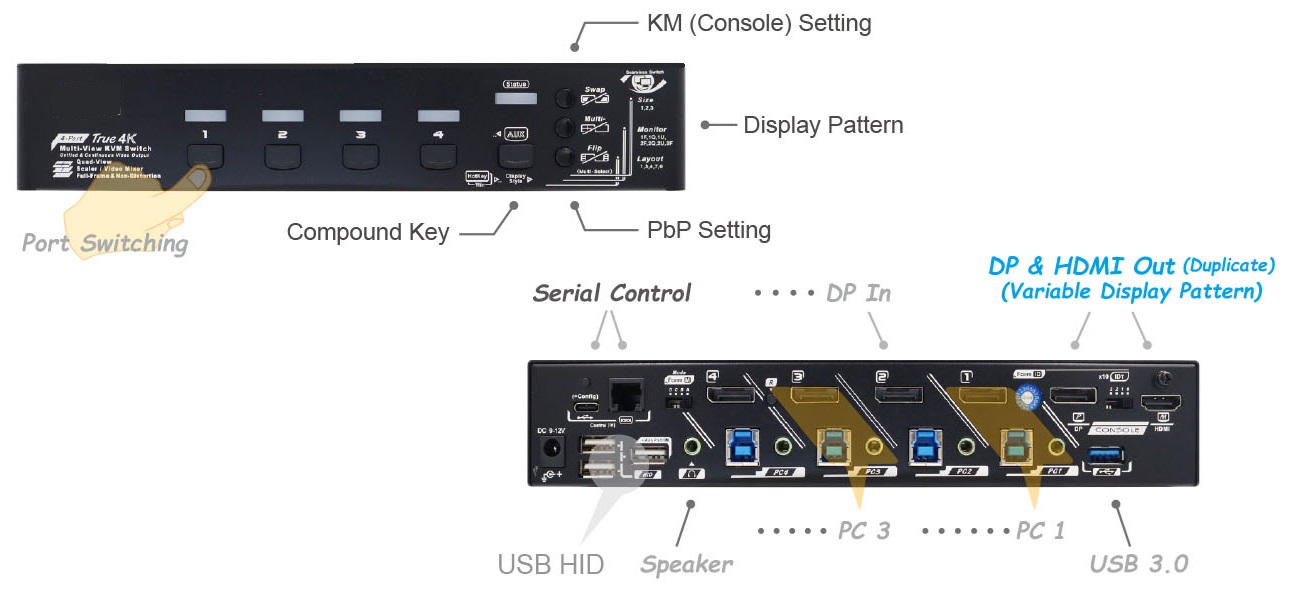

Switching MethodsPush button, mouse roaming, hotkey, mouse control, serial, keypad
Serial Baud Rate8 selectable options
Operating SystemsMac, Linux, Chrome, Windows 8 or later
InstallationPlug-and-play, no driver required

Source: DSGIO — KMV-4KD41-U30R 4-Port 4K60 DisplayPort KVM Multiview Switch, Quad/PIP/PBP. Verify with manufacturer.
