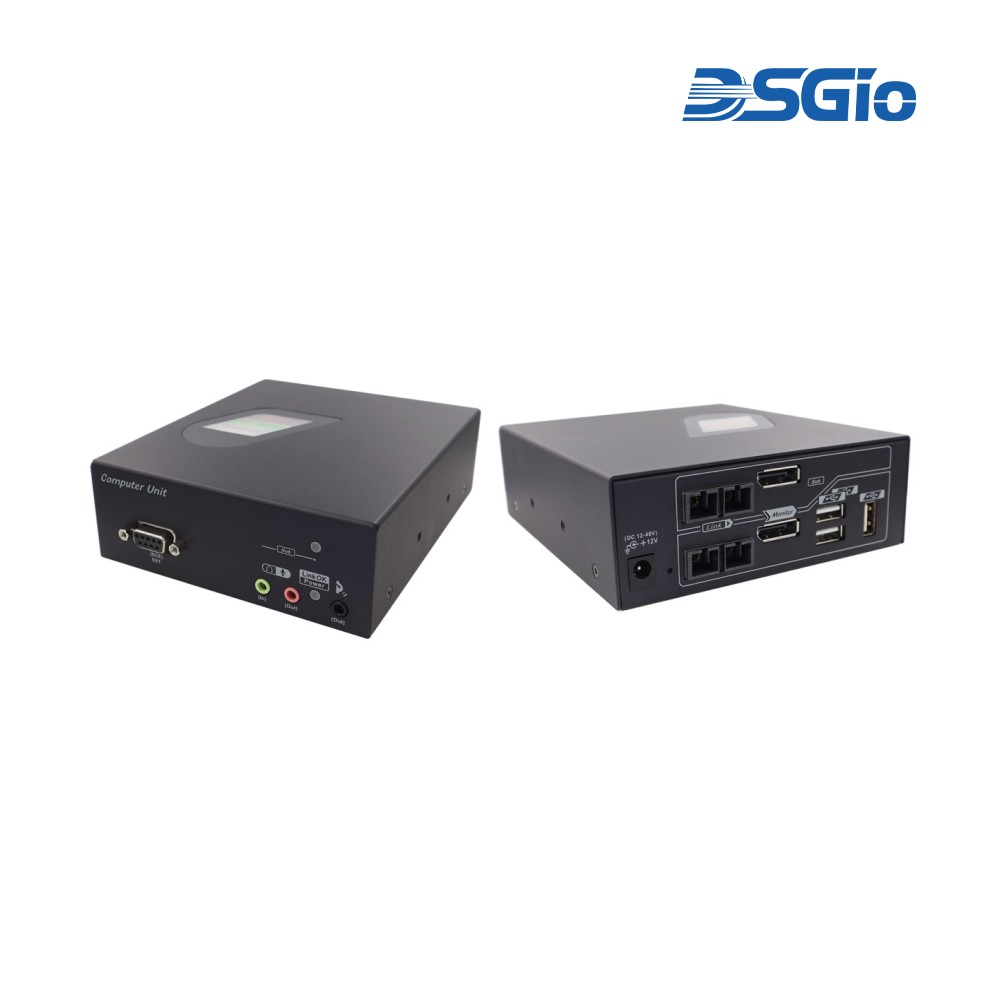

IPXF-DD430-DSC1K 4K30 Dual Head DP KVM Extender, Dual Duplex SC, MMF, 1Km

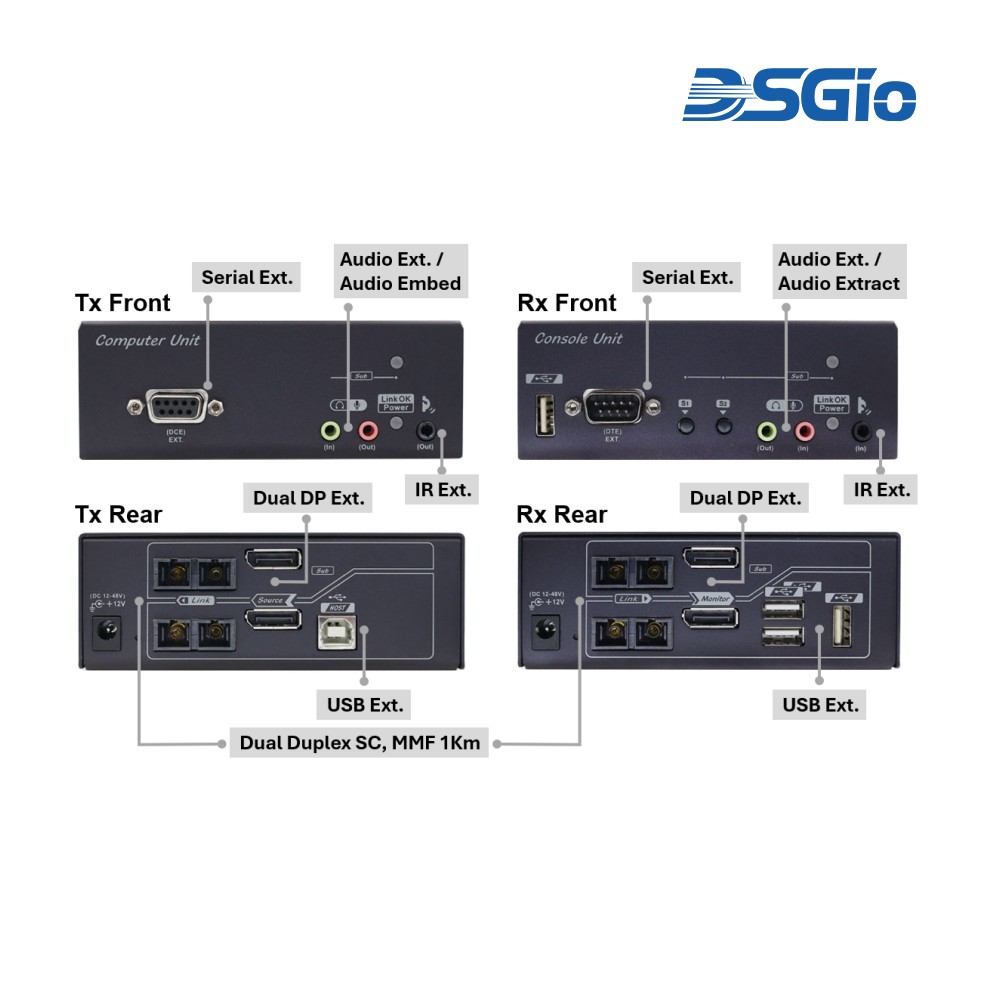

The Dual Display DP KVM Extender over Fiber enables remote extension of dual DisplayPort video, USB 2.0, two-way analog audio, IR, and full-duplex RS-232 serial signals up to 1000 meters using two duplex SC multi-mode fiber cables.

Brand

SKU: IPXF-DD430-DSC1K Category:
Description

Technical Specifications

Video Resolution4K@30Hz (4:4:4)
Video StandardDual DisplayPort
Maximum Distance1000m
Fiber TypeMultimode
Fiber ConnectorsDual Duplex SC
HDCP ComplianceHDCP 1.4
USBUSB 2.0, 4 ports on receiver
Audio2-way analog, 3.5mm stereo; embedding and de-embedding
SerialRS-232 full-duplex, selectable baud rate
IR38-56 kHz; up to 3m extension cable
Power InputDC 12-48V
Operating SystemsWindows, macOS, Linux, Chrome OS
InstallationPlug-and-play, no drivers required
EMIElectrical isolation via fiber link

Source: DSGIO — IPXF-DD430-DSC1K 4K30 Dual Head DP KVM Extender, Dual Duplex SC, MMF, 1Km. Verify with manufacturer.
