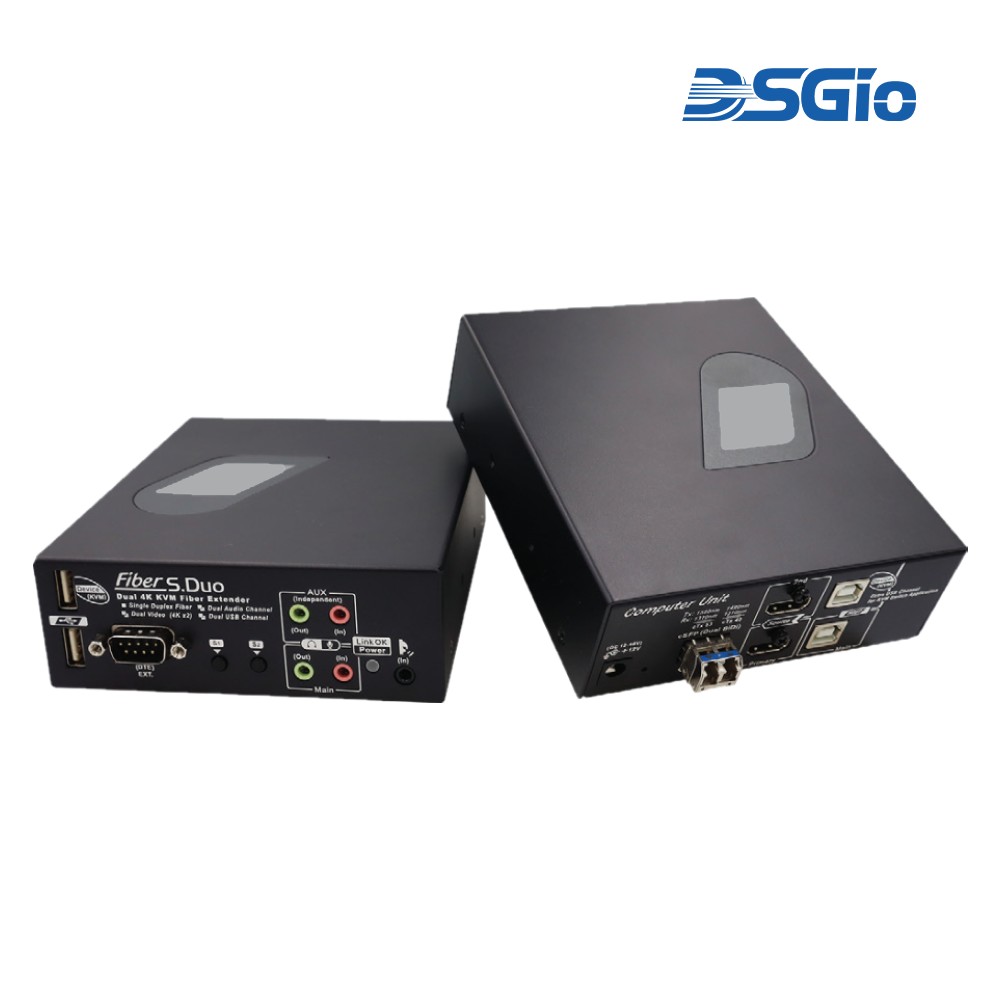

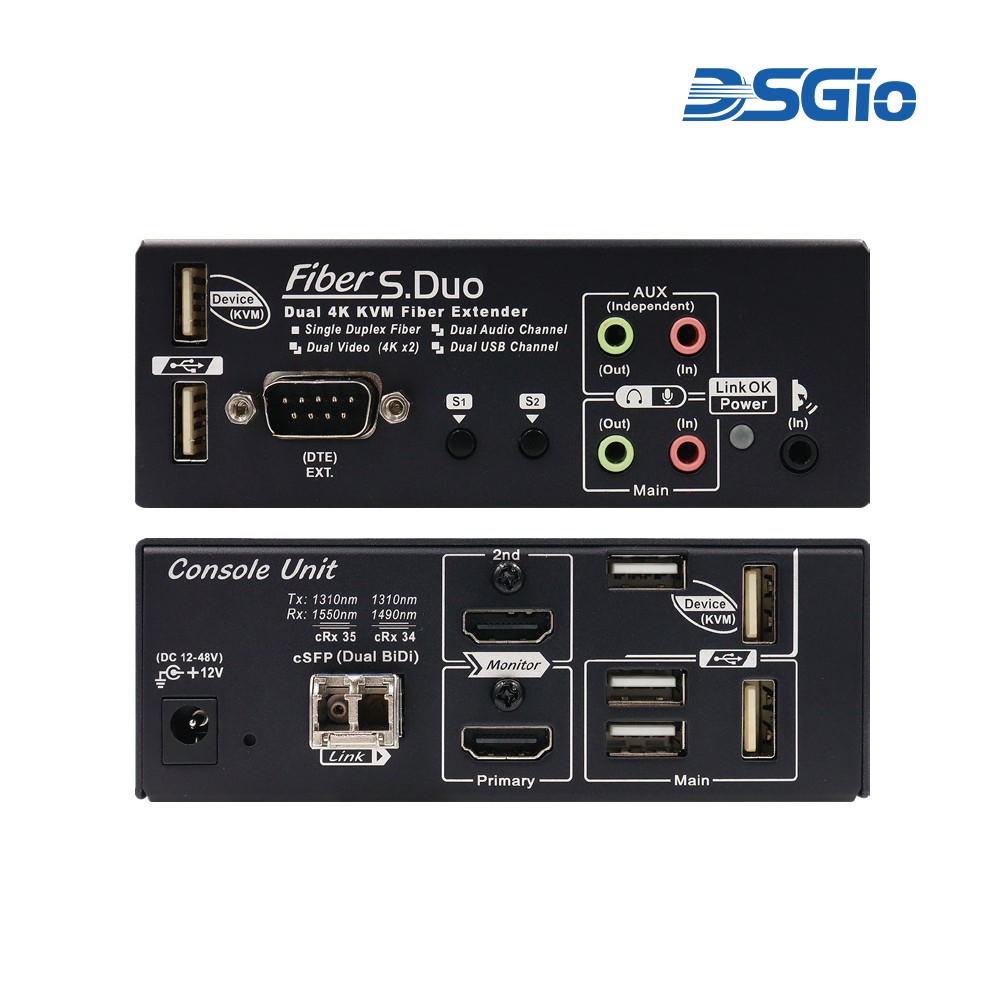

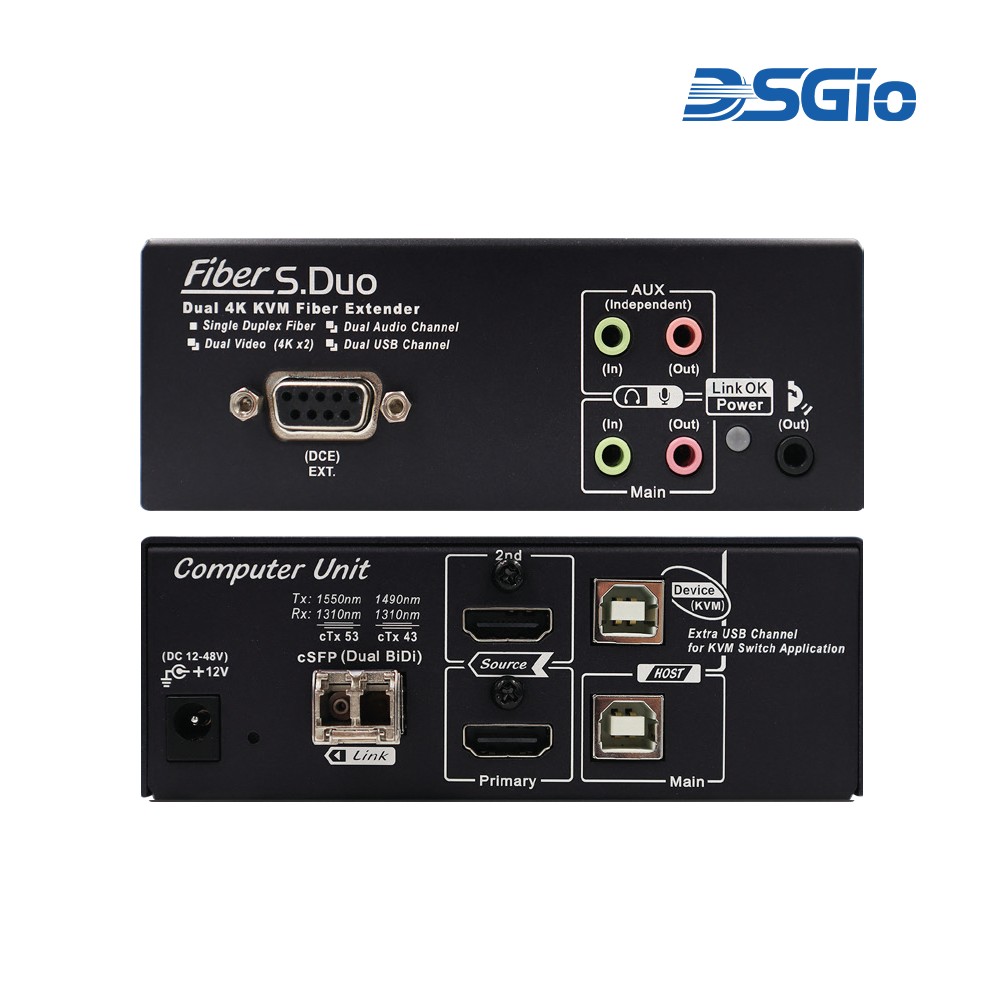

IPXF-H430-DH20KF 4K30 Dual Head HDMI KVM Extender, Single SM Fiber, 20Km

Contact for Price

The Dual Head HDMI KVM Extender extends dual HDMI, USB 2.0, bi-directional audio, IR, and RS-232 signals up to 20 km over duplex single-mode fiber.

Brand

SKU: IPXF-H430-DH20KF Category:
Description

Technical Specifications

Video Resolution4K@30Hz (4:4:4)
Video StandardDual HDMI
Fiber TypeSingle-mode
Fiber ConnectorDual BiDi LC (cSFP)
Maximum DistanceUp to 20km
HDCP ComplianceHDCP 1.4
USB3+1/2+1 USB 2.0 ports on receiver; two USB channels
AudioBidirectional; embedding/de-embedding; 3.5mm stereo
Display ModesDuplicate and Extend
IR38-56 kHz
SerialRS-232, selectable baud rate
Operating SystemsWindows, macOS, Linux, Chrome OS
InstallationPlug-and-play, no drivers required

Source: DSGIO — IPXF-H430-DH20KF 4K30 Dual Head HDMI KVM Extender, Single SM Fiber, 20Km. Verify with manufacturer.
