Technical Specifications

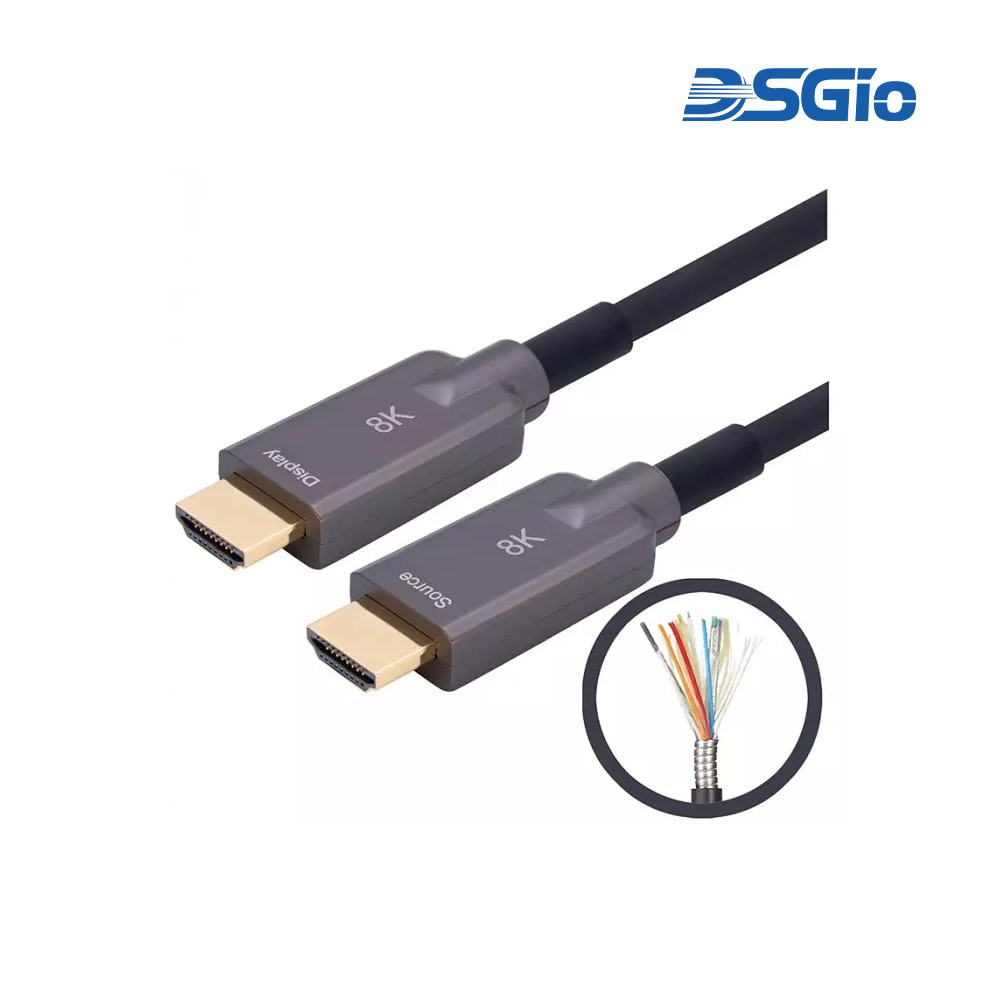

| Cable Type | Armored HDMI 2.1 Type A Male to Type A Male Active Optical Cable |
| Maximum Data Rate | 48Gbps (12Gbps per channel) |
| Maximum Resolution | 8K@60Hz 4:4:4; 4K@144Hz |
| HDMI Standard | HDMI 2.1 |
| HDCP | HDCP 2.3 |
| Available Lengths | 10m, 15m, 20m, 25m, 30m, 40m, 50m, 70m, 90m, 100m |
| Cable Diameter | 5.8mm |
| Bending Radius | 45mm minimum |

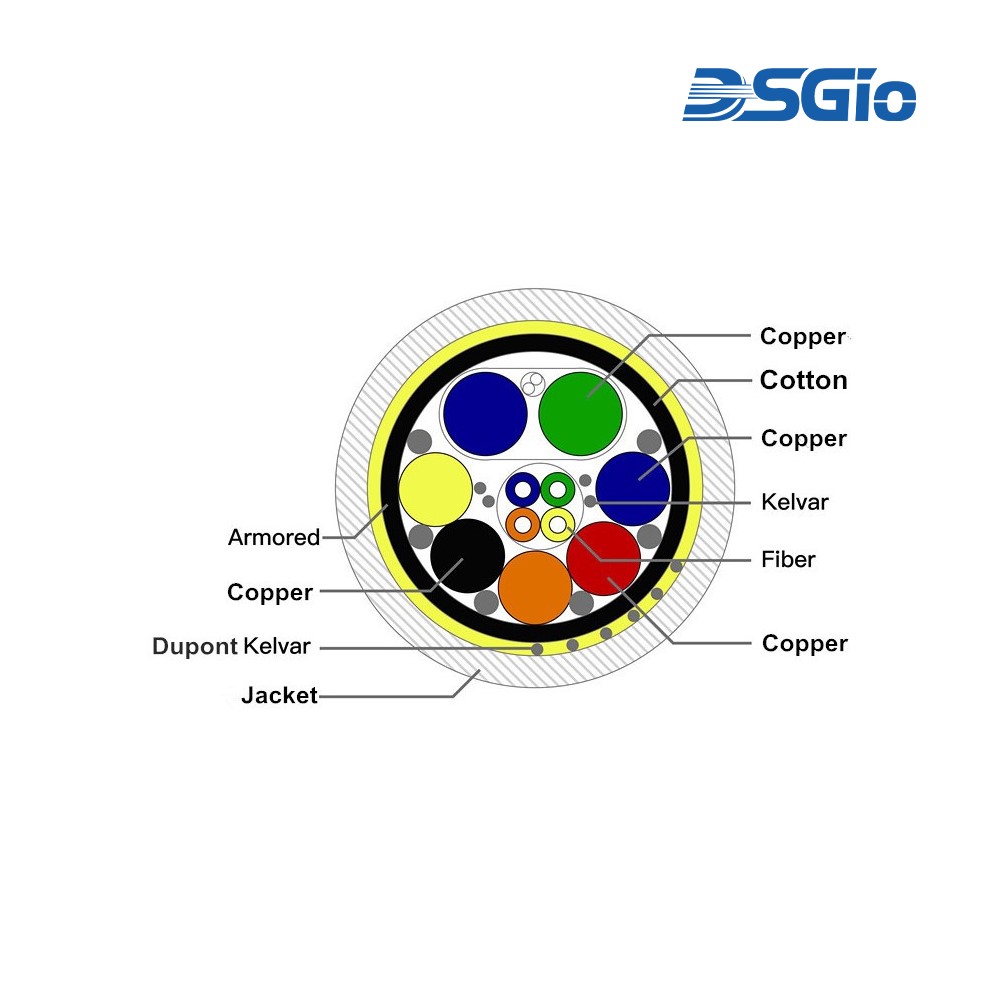

| Armor | 200CU stainless steel with TPU jacket |
| Fiber | 4 fibers + 7 copper wires; OM3 |
| Crush Resistance (Long-term) | 100kg |
| Crush Resistance (Short-term) | 200kg |
| Power Consumption | 250mW maximum |
| Temperature Range | -40°C to 70°C |
| Features | eARC, HDR, VRR, DSC, QMS, QFT, ALLM, CEC, HEC |
| Power | None (plug-and-play) |
| ATC Certified Lengths | 1m, 2m, 3m, 5m, 7.5m, 10m, 12m, 15m, 20m |
Source: DSGIO — VDC-HAF21-XXXM Armored HDMI 2.1 Active Optical Cable. Verify with manufacturer.
