CC-MON-100 or CC-MON-500 — CC-MON-XXX
Contact for Price
Monitoring System Server
| Brand | DSGIO |
|---|
Part number: CC-MON-100 or CC-MON-500
Description
The IP KVM Matrix adopts IP network distributed technology, based on distributed interconnection and interoperability, to build a comprehensive interaction management solution that integrates audio and video management, signal switching, splicing and fusion, environmental control, KVM agent collaboration, and big data applications
Overview
The IP KVM Matrix distributed visualization control platform integrates advanced technologies such as network communication, audio and video encoding and decoding, intelligent control, and voice control, achieving unified control and management of signals or devices such as audio, video, large screens, and environment. The system adopts a visual touch interaction method and a layout that highlights the main functions of industry applications, simplifying user operations to the greatest extent and providing convenience for their actual business applications.
By controlling the overall equipment, functions such as large screen splicing, matrix switching, seat control, audio adjustment, environmental control, remote control, dynamic display, and operation and maintenance management can be achieved.
Product Features
The maximum number of supported nodes is 100
Configuration: CPU: E5-2660 V3;
Main board: Z10PA-U8;
Memory: DDR4 16G RECC server professional memory;
Hard disk: 1TB enterprise level hard disk;

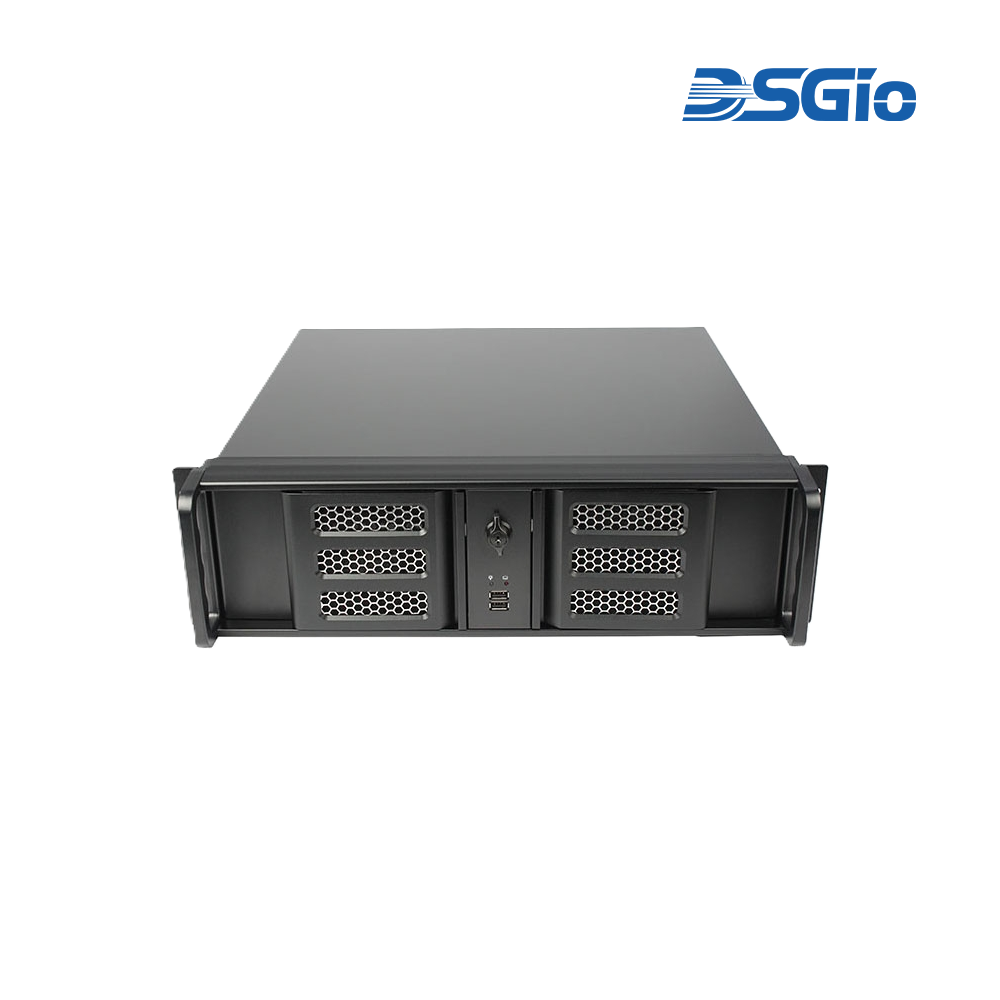

Chassis: 3U industrial control server chassis;
Power supply: 3U Great Wall 500W power supply;
Network card: 10G network card dual port Intel X520-SR2 E10G42BTDA server network card
Source: DSGIO — CC-MON-XXX. Verify with manufacturer.
