USB Extenders — DSG-USB-EU300
Contact for Price
USB 3.2 Gen 1, 5Gbps, USB Type-B Host Port, 4 USB Type-A Device Ports, RS-232, FSYNC, PoC, 100m
| Brand | DSGIO |
|---|
Part number: USB Extenders
Description

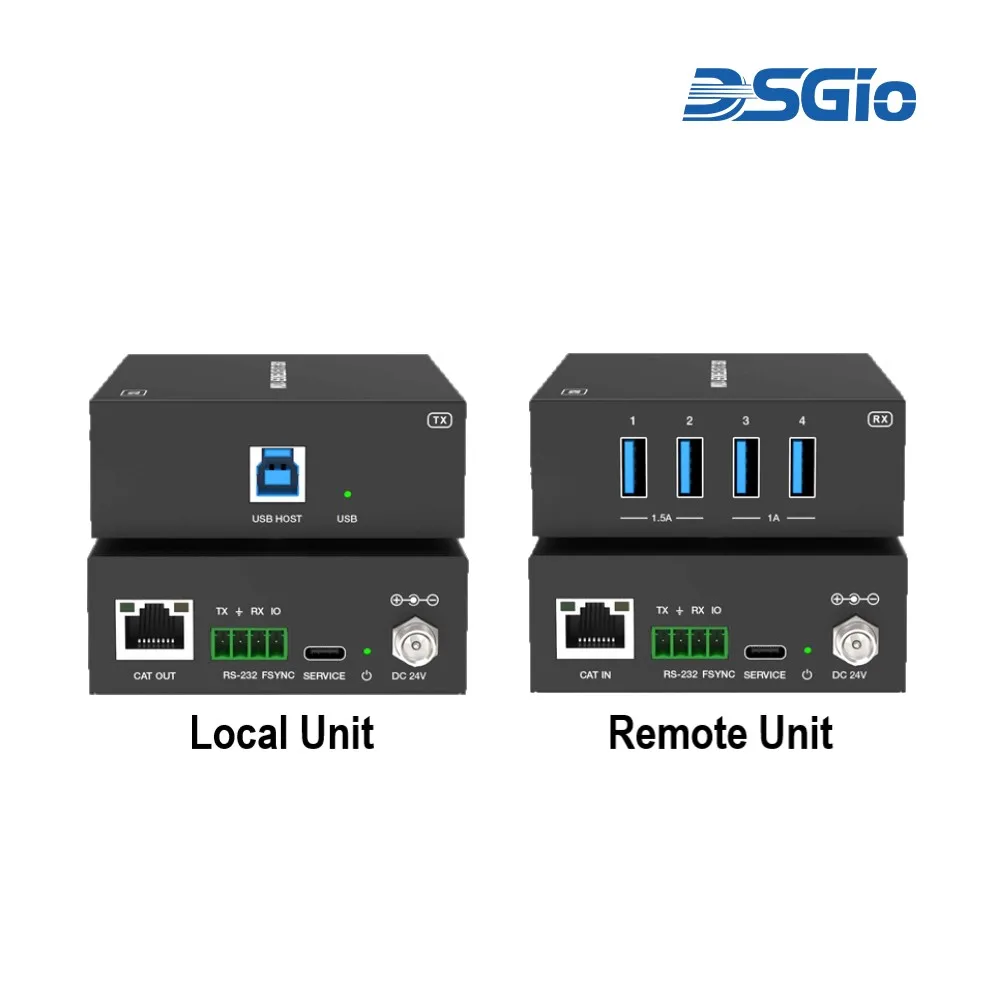

The USB 3.0 Extender,DSG-USB-EU300, can extend USB signals up to a distance of 100m (328ft) via a single CAT6a cable. The Transmitter features one USB 3.0 Type-B input, one FSYNC GPIO input and one RS-232 pass-through. The Receiver features four USB 3.0 Type-A outputs, one FSYNC GPIO output and one RS-232 pass-through.
Overview
The USB 3.0 Extender, DSG-USB-EU300, extends USB signals up to 100m (328ft) over a single CAT6a cable with data transfer rates up to 5Gbps. It is backward compatible with USB 2.0 and 1.1 and supports hardware acceleration for isochronous and bulk transfers. The Transmitter features one USB 3.0 Type B input, one FSYNC GPIO input, and RS-232 pass-through. The Receiver provides four USB 3.0 Type A outputs—Ports 1 and 2 support 5V/1.5A, while Ports 3 and 4 support 5V/1A—along with FSYNC GPIO output and RS-232 pass-through. Bi-directional 24V PoC is supported, and the system is plug-and-play with no driver or configuration required, making it ideal for long-distance connections between a PC and USB devices, including industrial cameras.
Application Example
 |
Product Features
· Extension of USB 3.0 up to 100m/328ft over CAT6a cable
· USB 3.0 connectivity with a data transfer rate up to 5Gbps
· Backward compatible with USB 2.0 and 1.1
· Hardware acceleration for isochronous and bulk transfers
· USB-A Port 1 and 2 support 5V/1.5A, Port 3 and 4 support 5V/1A on the Receiver
· Supports RS-232 pass-through and FSYNC GPIO pass-through (for industrial camera use)
· Supports bi-directional 24V PoC
· Simple plug and play, no driver and configuration required
Connection Diagram
Connection Diagram
 |
Source: DSGIO — DSG-USB-EU300. Verify with manufacturer.
