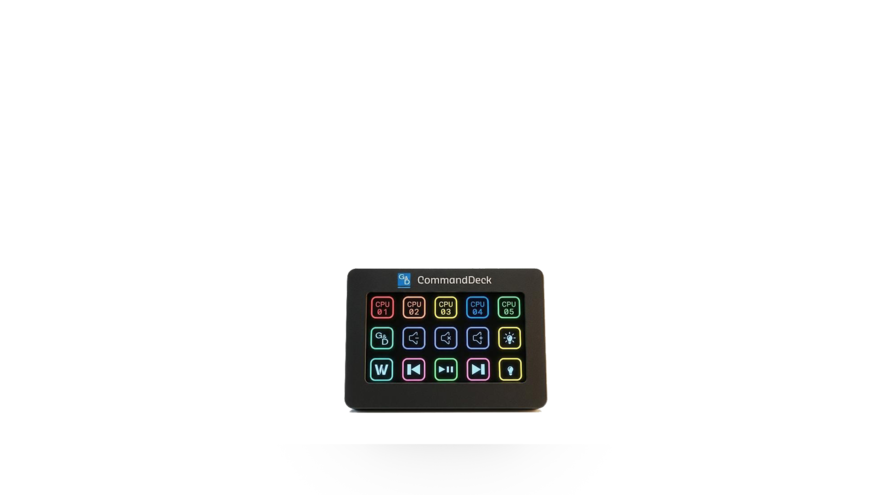

CommandDeck (A3200121)

Contact for Price

LCD keypad to program and control keyboard macros

Brand

Part number: CommandDeck

SKU: CommandDeck Categories: , , Tags: , , , ,
Description

Product Details

Device

  • Flexible control element for KVM solutions
  • Communicates via a standard HID interface
  • Configuration and programming is carried out once using dedicated software
  • No additional drivers, services, or client software required for ongoing operation
  • The configurations created are stored directly on the device

Features

Operation

  • Features multiple freely definable keypad layouts
  • The icons and images of the virtual buttons can be freely selected
  • Offers an integrated display with up to 15 virtual soft buttons
  • Each button can be assigned a shortcut (e.g., hotkeys, key combinations, etc.)
  • The buttons can also lead to sub-layers with another 15 buttons
  • Supports up to 15 buttons, each with up to 14 different functions (1 button for switching between layers)

Technical Specifications

General
BrandG&D
Product groupKVM add-ons
Product FamilyCommandDeck
Country of originTaiwan
Housing
MaterialPlastic
Active cooling (fan)no
Width ca.118.6 mm
Height ca.27.3 mm
Depth ca.89.4 mm

Source: G&D — CommandDeck (A3200121). Verify with manufacturer.
