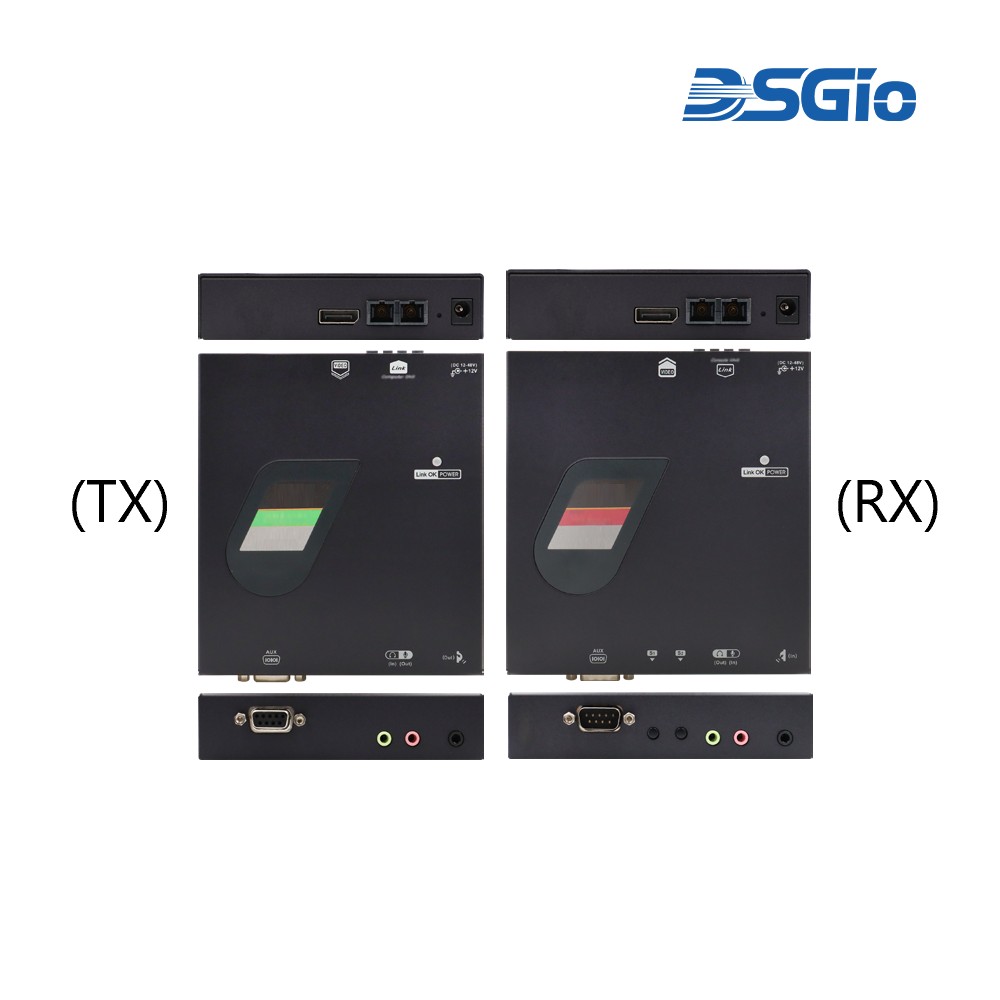

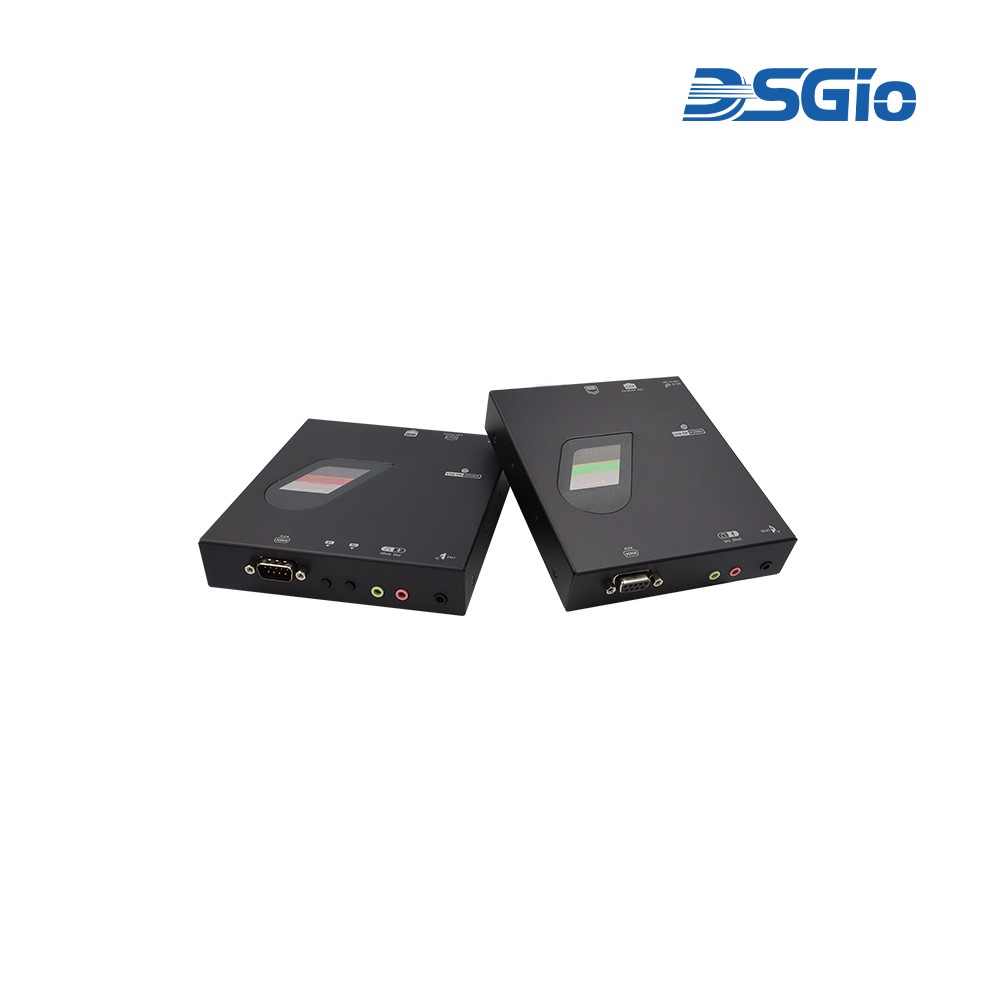

VEX-D14F-10KSM DisplayPort 1.4, 4K30, Audio, 1-Way IR, RS-232, SC SM Fiber

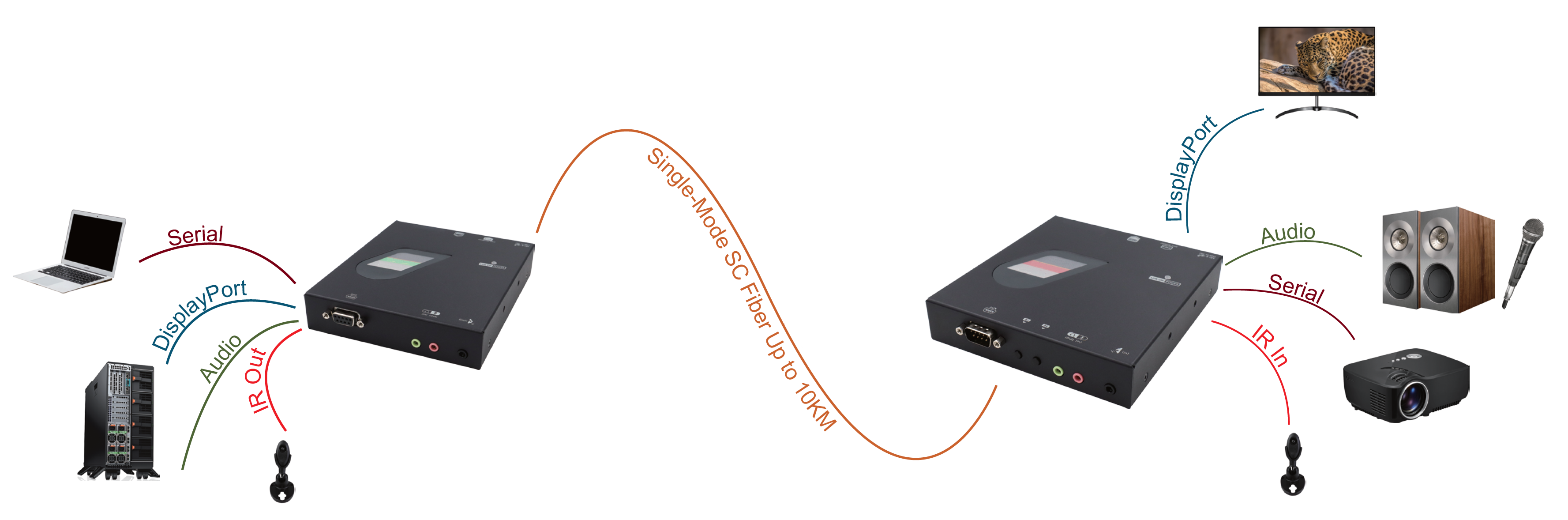

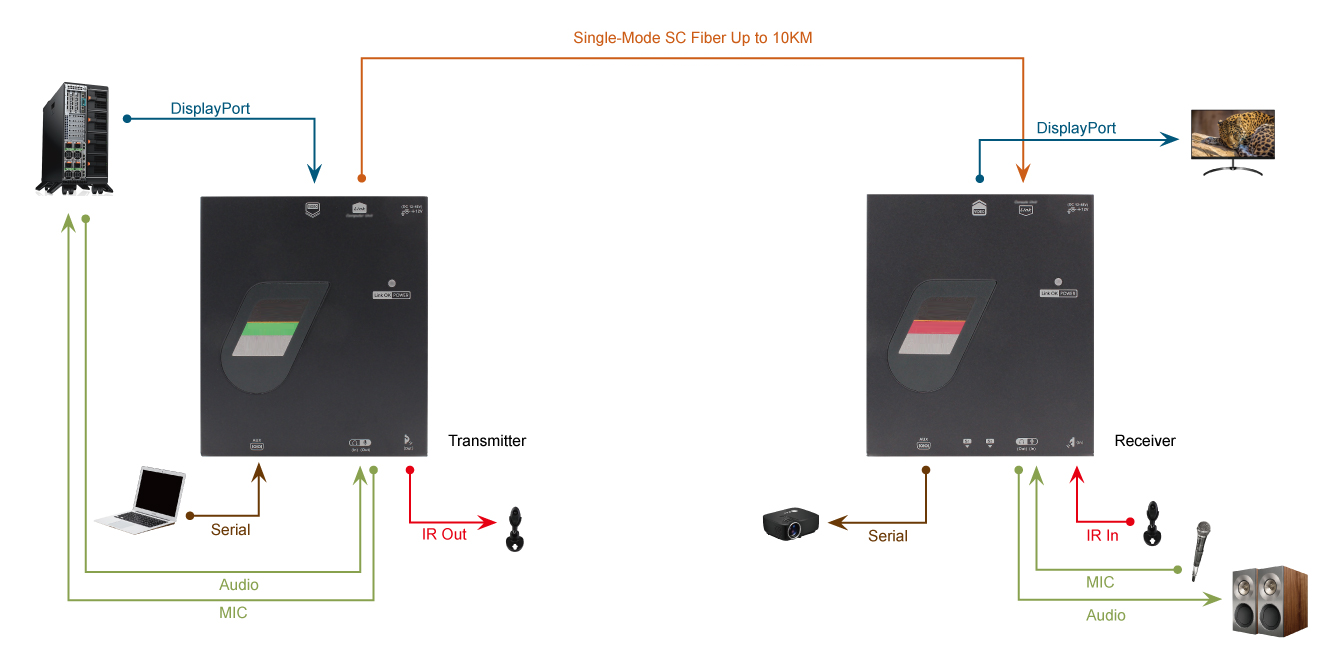

The 4K30 DisplayPort Video Extender over Fiber provides reliable video transmission up to 10 km (32,800 feet) via fiber cable, using an SC connector type SFP transceiver.

Brand

SKU: VEX-D14F-10KSM Categories: ,
Description

Technical Specifications

Maximum Resolution4K@30Hz (4:4:4); 2048×2048@60Hz (radar/ATC)
Video StandardDisplayPort
HDCP ComplianceHDCP 1.4
Fiber Distance (Single-Mode OS1/OS2)Up to 10km (32,800ft)
Fiber Distance (OM3/OM4)1km
Fiber Distance (OM2)250m
Fiber ConnectorSC duplex
Audio2-way with embedding/de-embedding; 3.5mm stereo
IR Control1-way from Receiver to Transmitter
SerialRS-232 with selectable baud rates (1200-115200 bps)
Power InputDC 12-48V
Operating SystemsWindows, Mac, Linux, Chrome OS
InstallationPlug-and-play, no driver required

Source: DSGIO — VEX-D14F-10KSM DisplayPort 1.4, 4K30, Audio, 1-Way IR, RS-232, SC SM Fiber. Verify with manufacturer.
