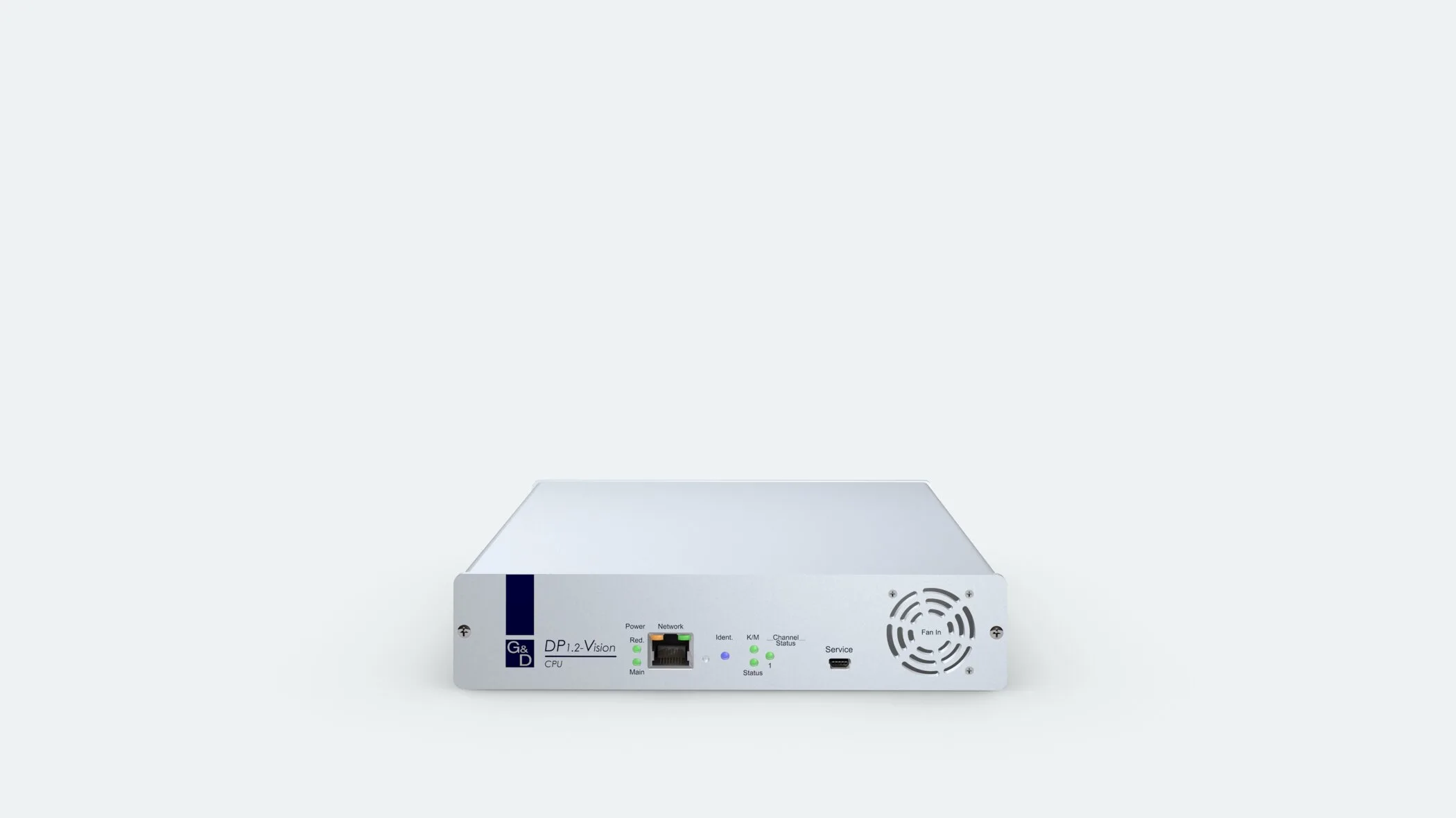

G&D DP1.2-Vision-Fiber(M)-ARU-CPU-UC (A1110215)
Contact for Price
Splitter computer module for transmission of DisplayPort1.2 signals to 2 different counterpart stations (extenders or matrix switches) via fiber multimode
| Brand | Guntermann & Drunck |
|---|
Part number: DP1.2-VISION-FIBER(M)-ARU-CPU-UC
Description
Extenders of the DP1.2-Vision series
extend high-resolution 4K video signals at 60 Hz compressed and pixel-perfect over every video channel.
With their network port, web interface and monitoring functions, the extenders offer important features for mission-critical applications.
An extender system consists of a computer module (CPU) and a console module (CON) and lets you operate a computer from a great distance.
Video
- bluedec™ – advanced developed compression algorhythm of the latest generation for best video quality and latency-free transmission
- E-DDC support
- Resolution up to
4096 × 2160 @ 60 Hz (4K2K/60Hz),
2560 × 1440 @ 144 Hz,
1920 × 1080 @ 240 Hz (Full HD/240Hz)
Signals
- Full keyboard/mouse emulation
- Embedded stereo audio (DisplayPort Digital, 2 channel LPCM)
- Transparent audio signals (stereo, analog)
- Transparent RS232 (max. 115,200 bps)
- Embedded USB 2.0 with Full Speed, transparent, all USB classes
Transmission
- Via fiber multimode
- Distances up to 400 m
Device
- Ident LED for quick location of the device in complex installations
Operation
- Connect the computer interfaces for the different signals to the computer module using the standard cables that are protected against confusion
- Further steps for commissioning see manual
System update
- Updating via Config Panel 21 (HTML5, Java-free, optimized operation)
