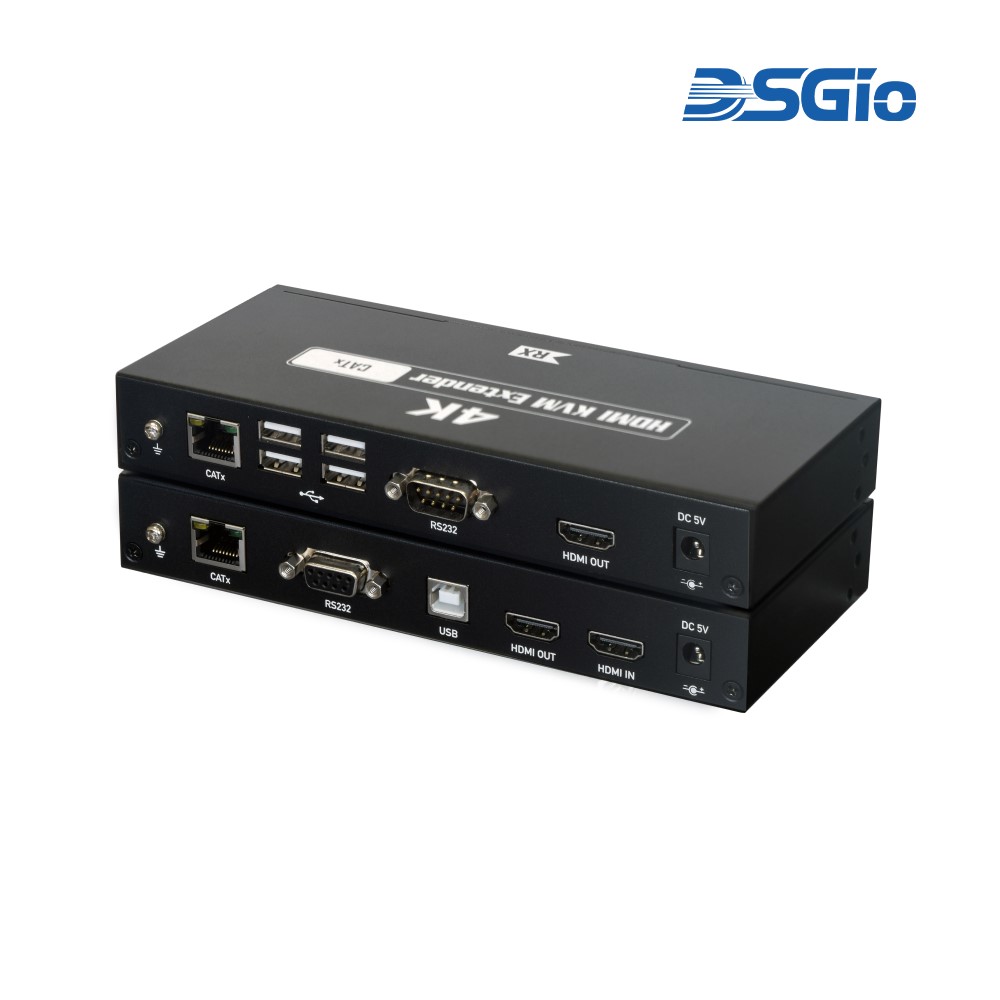

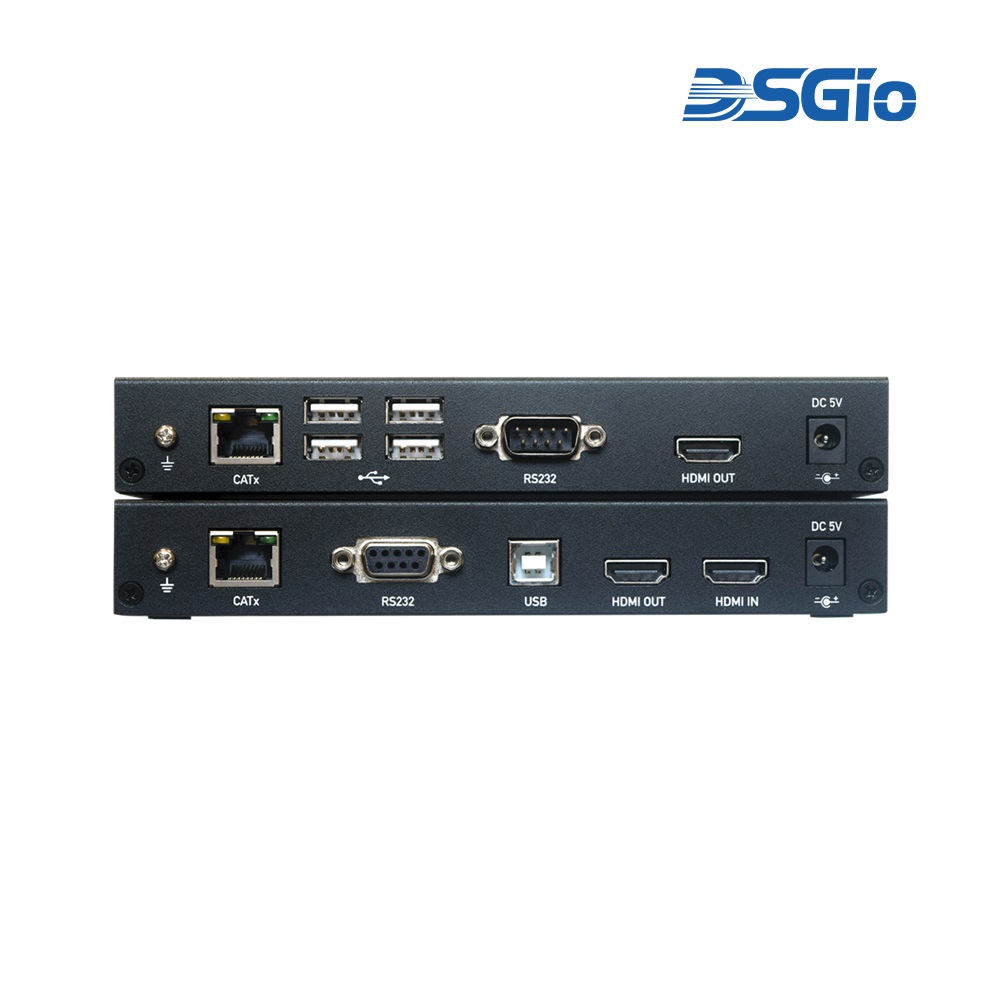

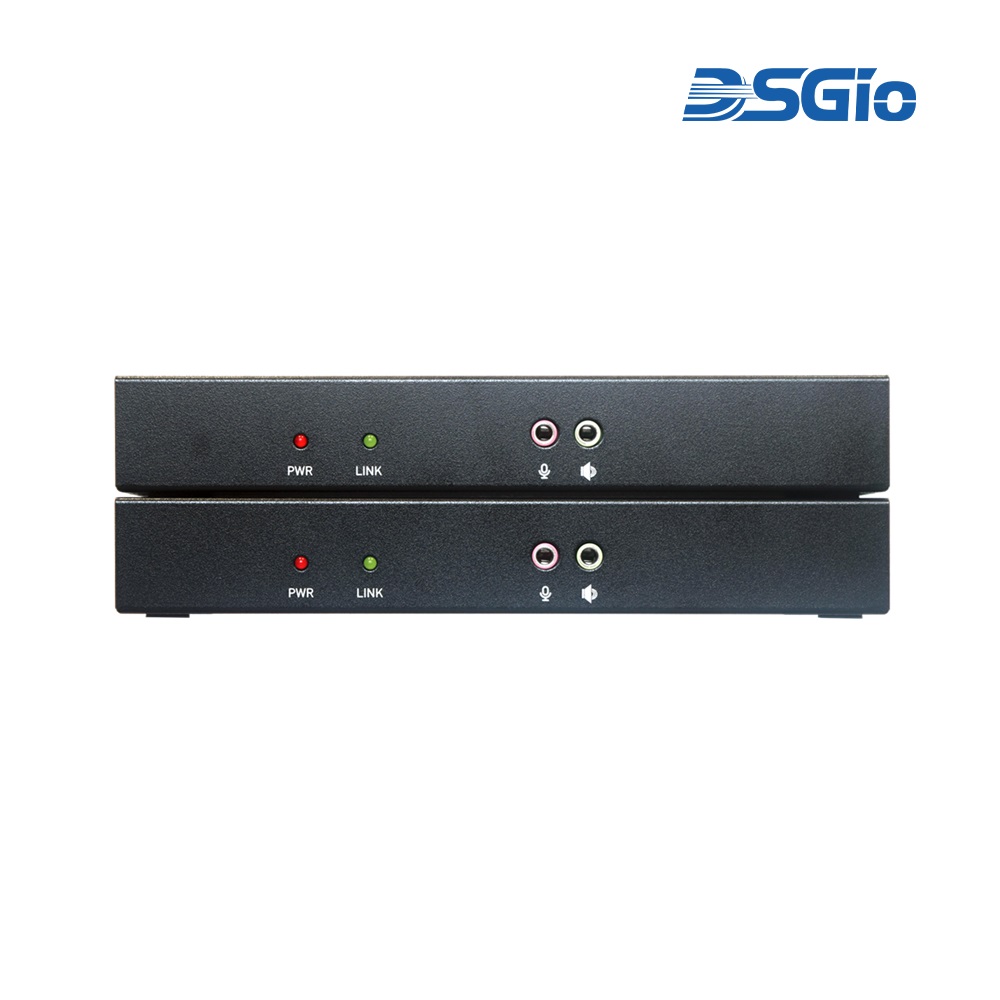

IPKX-A430-SH100 4K30 Single Head HDMI IP KVM Extender over CATx With Local Out

Contact for Price

The IP KVM extender provides high-definition 4K HDMI video quality with resolutions up to 3840×2160 at 30Hz and Chroma Subsampling 4:4:4, ensuring sharp, vibrant displays.

Brand

Part number: IPKX-A430-SH100

SKU: IPKX-A430-SH100 Categories: , ,
Description

Technical Specifications

Video ResolutionUp to 3840×2160@30Hz; 1920×1200@60Hz
Video StandardHDMI 1.4
Chroma Subsampling4:4:4
Cable TypeCAT5e/6/6a
Maximum Distance100m (330ft)
USBUSB 2.0/1.1, 4 ports
USB SpeedMaximum 12Mbps
Audio2-way analog (line-in/line-out)
SerialBidirectional RS-232 at fixed 115,200 bps
Local OutputHDMI loopback on transmitter
EDIDPass-through from remote display
InstallationPlug-and-play, no software or driver required

Source: DSGIO — IPKX-A430-SH100 4K30 Single Head HDMI IP KVM Extender over CATx With Local Out. Verify with manufacturer.

Source: DSGIO — IPKX-A430-SH100. Verify with manufacturer.
