Overview

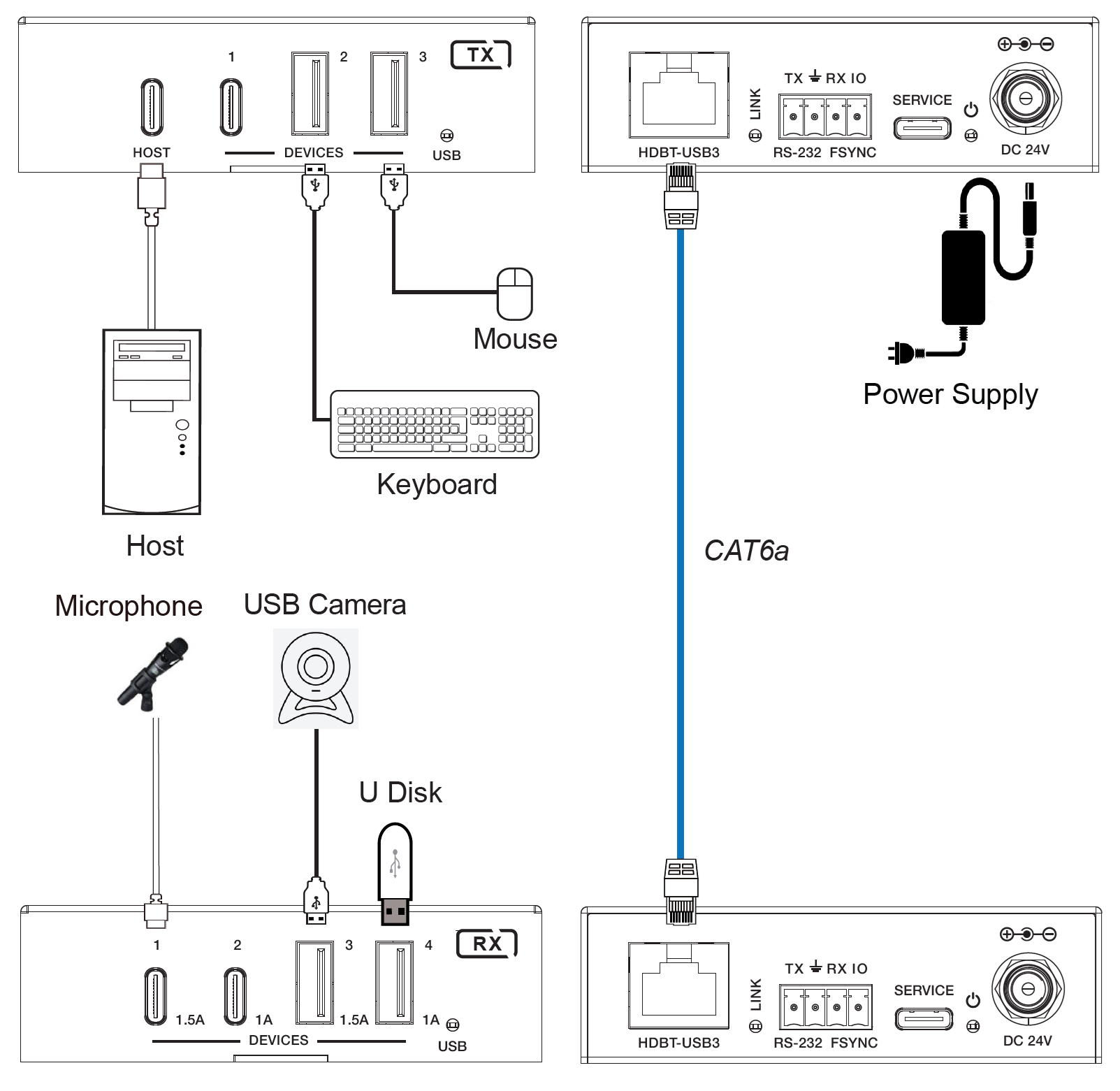

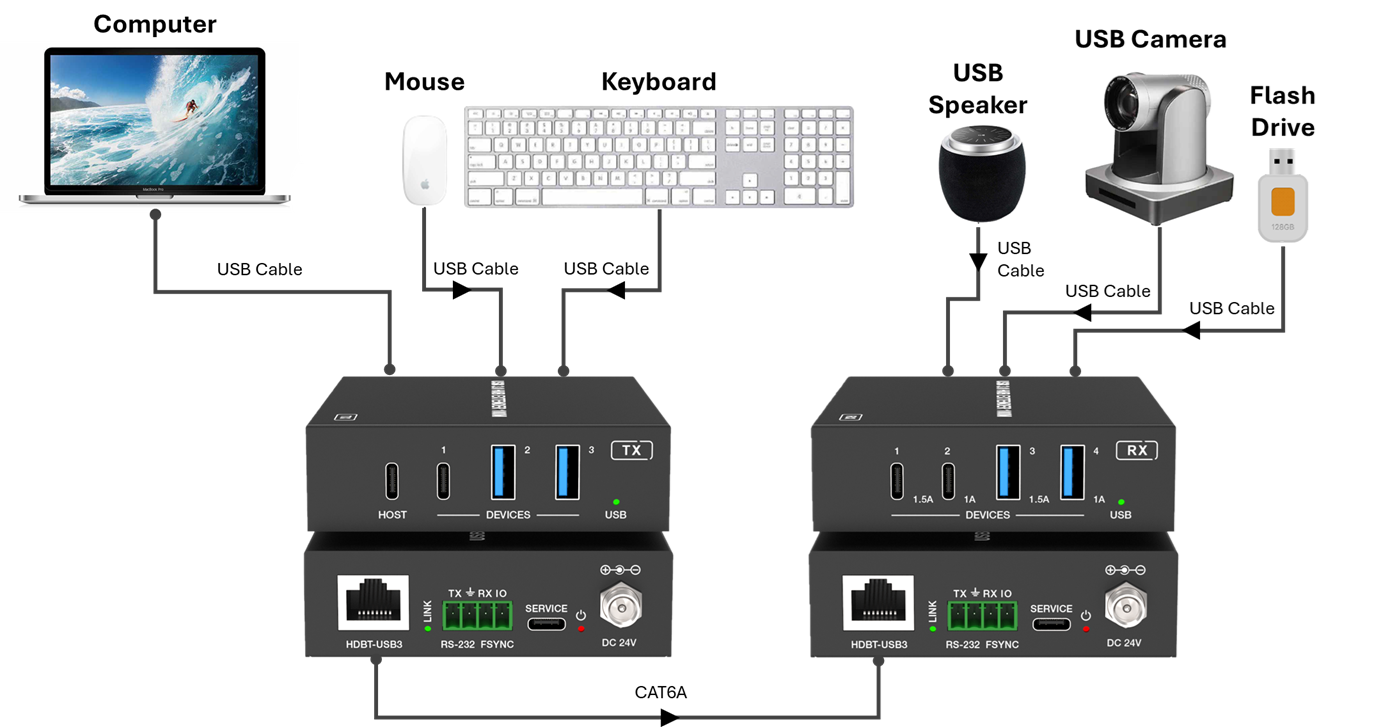

The USB 3.2 Gen 1 Extender enables high-speed USB signal extension up to 100 meters (328 feet) over a single CAT6a cable. The Transmitter features one USB-C host port, one USB-C device port, and two USB-A device ports. The Receiver provides two USB-C and two USB-A device ports. Bi-directional 24V PoC allows power to be supplied from either the Transmitter or Receiver. Ideal for extending connections to USB devices such as webcams, PTZ cameras, keyboards, mice, USB microphones, flash drives, printers, scanners, and touch displays.
Product Features
- Extends USB 3.2 Gen 1 signals up to 100m over CAT6a cable
- USB 3.2 Gen 1 data rate up to 5Gbps
- Backward compatible with USB 2.0 and 1.1
- Supports isochronous and bulk transfers hardware acceleration

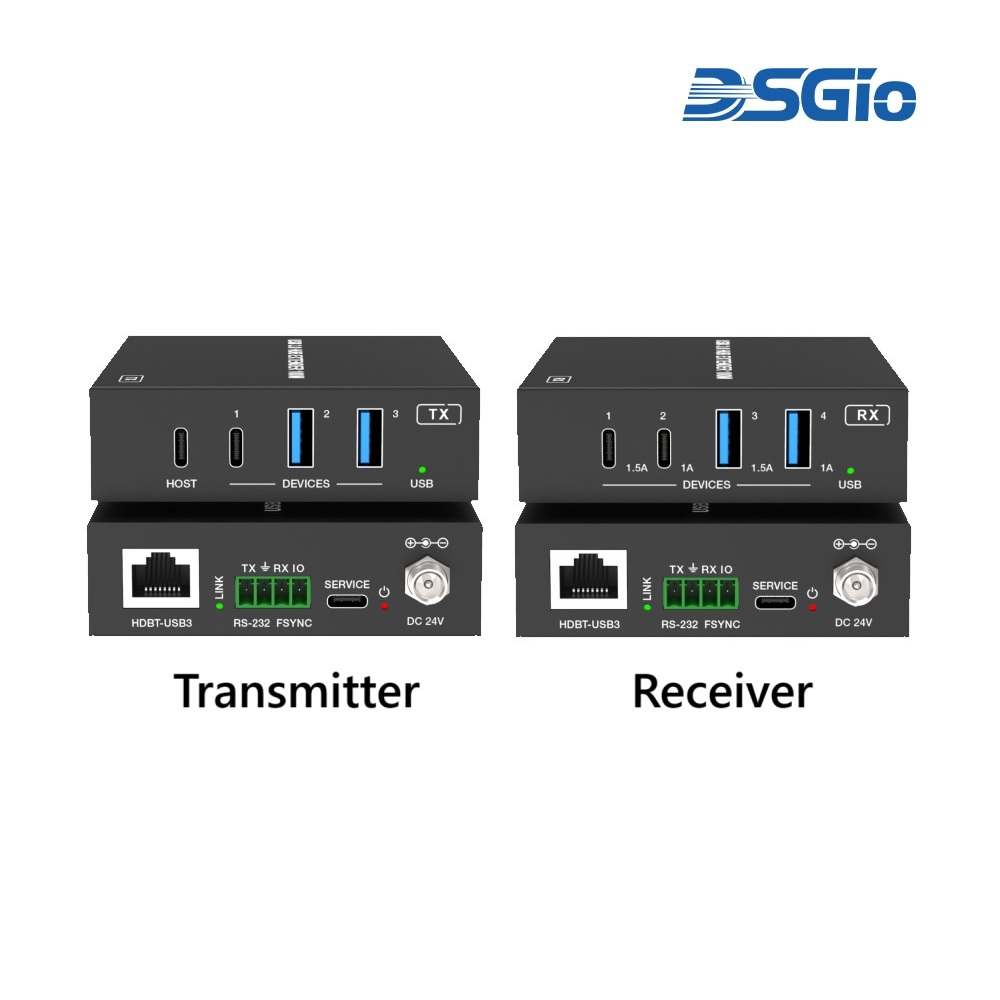

- Transmitter: 1x USB-C host, 1x USB-C device, 2x USB-A device ports
- Receiver: 2x USB-C device, 2x USB-A device ports
- Firmware upgrade via USB-C service port
- RS-232 pass-through and FSYNC GPIO support
- Bi-directional 24V PoC
- Plug-and-play; no drivers required
