CMS-48410GF or CMS-48410GF-RP — CMS-48410GF, L2+ Switch

Contact for Price

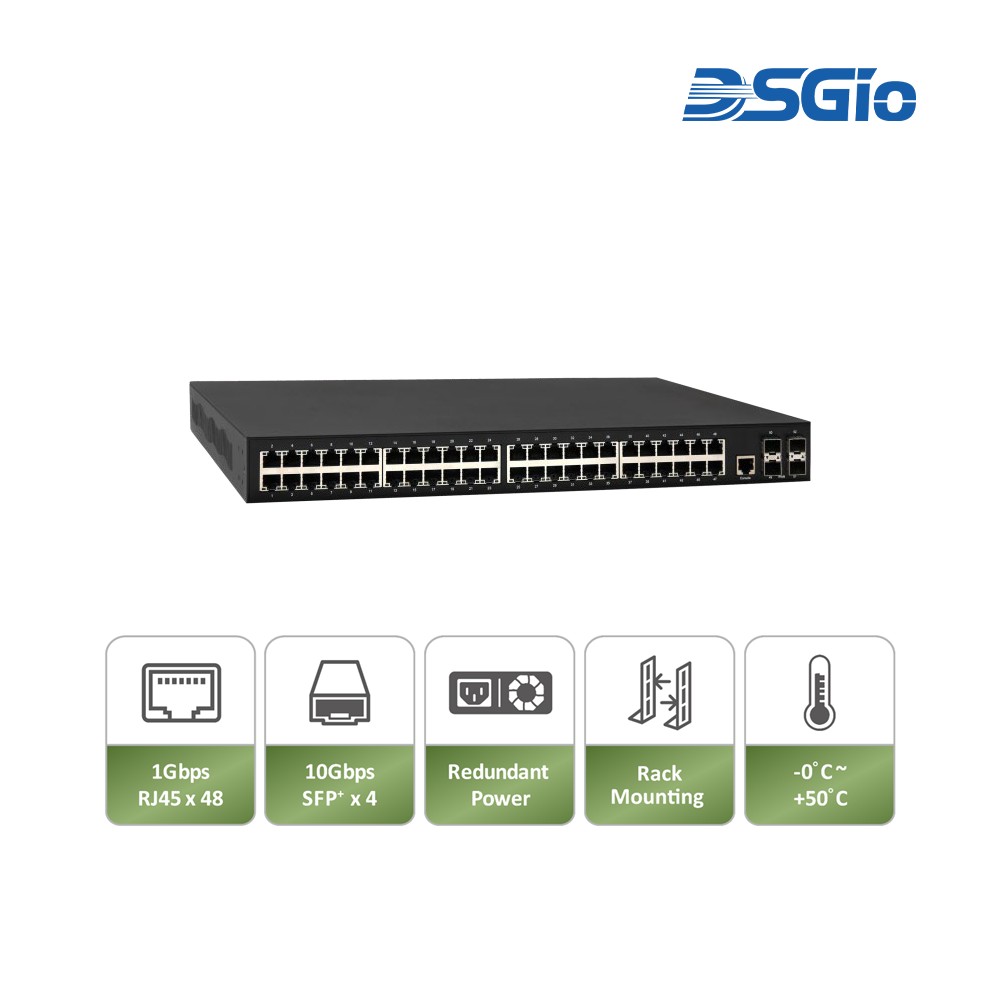

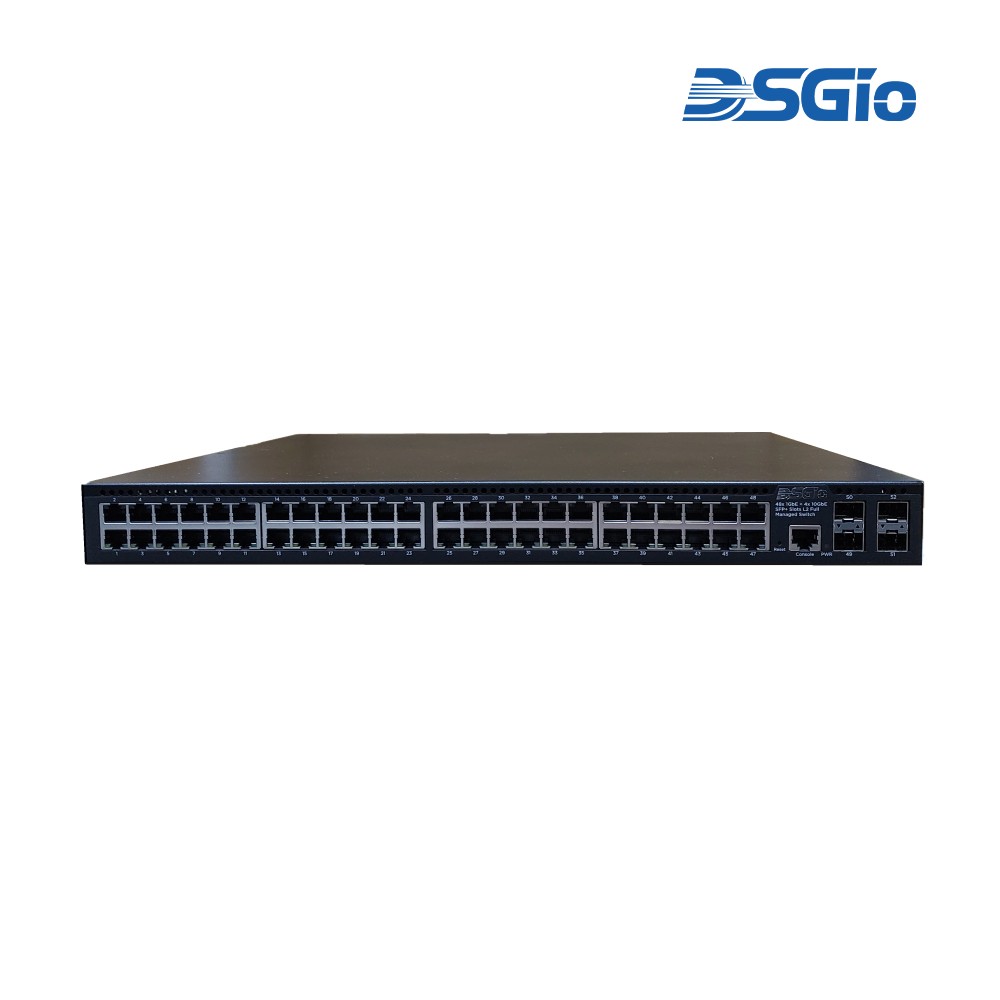

L2+ Managed Switch – 48 x 10/100/1000Mbps RJ45 + 4 x 1G/2.5G/10Gbps SFP+ Ports

Part number: CMS-48410GF or CMS-48410GF-RP

( Available in Two Models: Single Internal Power Supply or Redundant Hot-Swappable Power Module )

Overview

INTRODUCTION

The DSGio CMS-48410GF L2+ managed switch is engineered for medium- to large-scale network deployments, delivering a high-bandwidth, non-blocking switch fabric for low-latency, high-speed data transmission. It features multi-rate SFP+ uplinks for scalable network expansion and supports link aggregation to increase throughput. IEEE-compliant design ensures uninterrupted service for connected IP devices, while advanced Layer 2+ management, including VLAN, QoS, and robust security, optimises network segmentation and traffic prioritization. The 19-inch rack-mountable chassis enables seamless integration into enterprise and data center environments.

SPECIFICATIONS

Interface
10M/100M/1000Mbps RJ45 Ports		48
1G/2.5G/10Gbps SFP+ Slots		4
Console Port for CLI Management		1
System Performance
Packet Buffer		32Mb
NAND Flash Memory		2Gb
NOR Flash Memory		256Mb
SDRAM Memory (DDR3)		4Gb
MAC Address Table Size		32K
Jumbo Frame		10240
Switching Capacity		176Gbps
Forwarding Rate (64-byte)		130.94Mpps
L2 Features
Auto-Negotiation		●
Auto MDI/MDI-X		●
Flow Control (Duplex)	802.3x (Full)	●
	Back-Pressure (Half)	●
Spanning Tree	IEEE 802.1D (STP)	●
	IEEE 802.1w (RSTP)	●
	IEEE 802.1s (MSTP)	●
VLAN	VLAN Group	4K
	Tagged Based	●
	Port-Based	●
	Q-in-Q	●
	Voice VLAN	Voice VLAN with OUI
Link Aggregation	IEEE 802.3ad with LACP	●
	Static Trunk	●
	Max. Static Aggregation Group	26
	Max. Port per Static Agg. Group	16
IGMP Snooping	IGMP Snooping v1/v2/v3	Supports 1024 IGMP Groups
	IGMP Static Multicast Addresses	Supports 1024 Static Multicast Addresses
	IPv6 MLD Snooping	Supports 1024 MLD Groups
	MLD Static Multicast Addresses	Supports 1024 Static Multicast Addresses
	Querier, Immediate Leave	●
Storm Control (Broadcast / Multicast / Unknown Unicast)		●
Loop Protection		●
QoS Features
Number of Priority Queue		8 Queues/Port
Rate Limiting	Ingress	Yes, 1 KBps/1pps
	Egress	Yes, 1 KBps/1pps
DiffServ (RFC2474 Remarking)		●
Scheduling (WRR, Strict, Hybrid)		●
CoS	IEEE 802.1p	●
	IP ToS Precedence, IP DSCP	●
Security
Management System User Name / Password Protection		●
User Privilege		Set User Privilege up to 15 Level
Port Security (MAC-based)		●
IEEE 802.1x Port-based Access Control		●
ACL (L2/L3/L4)		●
IP Source Guard		●
RADIUS (Authentication, Authorisation, Accounting)		●
TACACS+		●
HTTP & SSL (Secure Web)		●
SSH v2.0 (Secured Telnet Session)		●
MAC / IP Filter		●
L3 Features
Static Route		●
Management
Command Line Interface (CLI)		●
Web Based Management		●
Telnet		●
Access Management Filtering		SNMP/Web/SSH/Telnet
Firmware Upgrade via HTTP		●
Dual Firmware Images		●
Configuration Download / Upload		●
SNMP (v1/v2c/v3)		●
RMON (1, 2, 3 & 9 Groups)		●
DHCP (Server / Client / Relay / Option 82 / Snooping)		●
System Event / Error Log		●
TFTP (Trivial File Transfer Protocol)		●
NTP / LLDP		●
Cable Diagnostics		●
IPv6 Configuration		●
Port Mirroring		●
Physical Characteristics
Dimension (W x H x D)		Internal PSU: 440 x 44 x 330 mm Redundant PSU: 440 x 44 x 380 mm With PSU Handle & Latch Button: 440 x 44 x 410 mm
Reset Button		N/A
LED		Power, Link/ACT.
Cooling		Fan Cooling
Enclosure		Metal
Installation		Desktop / Rack Mount
Weight		Refer to PSU Bundled Configuration Table
System Power Requirements
System Power Input		12V DC
Max. System Power Consumption		37W
Power Supply Information
Internal Power Supply		Input: 100-240 V~, 47-63Hz, 1.5A Max.
		Output: 12V DC / 5.4A (65W Max.)
Redundant Power Supply		Input: 100-240 V~, 47-63Hz, 2-1A Max.
		Output: 12V DC / 5A (60W Max.)
Environment Limits
Operating Temperature		0 ~ 50°C
Storage Temperature		-20 ~ 80°C
Operating Humidity		Max. 90% RH (Non-condensing)
Storage Humidity		Max. 90% RH (Non-condensing)
Protection and Alarms
ESD		DC Contact 4KV, Air 8KV
Surge		AC Line to Line 1KV, Line to Ground 2KV
Certifications
Electromagnetic Emissions (EMC)		CE, FCC, UKCA
Safety		EN62368-1
Standard
IEEE 802.3 – 10Base-T		●
IEEE 802.3u – 100Base-TX		●
IEEE 802.3ab – 1000Base-T		●
IEEE 802.3z – 1000Base-SX/LX		●
IEEE 802.3ae – 10GBase (SFP+)		●
IEEE 802.3az – Energy Efficient Ethernet (EEE)		●
IEEE 802.3x – Flow Control		●
IEEE 802.3ad – Link Aggregation Control Protocol (LACP)		●
IEEE 802.1Q – VLAN Tagging		●
IEEE 802.1v – Protocol-Based VLAN		●
IEEE 802.1p – Class of Service (CoS)		●
IEEE 802.1D – Spanning Tree Protocol (STP)		●
IEEE 802.1w – Rapid Spanning Tree Protocol (RSTP)		●
IEEE 802.1s – Multiple Spanning Tree Protocol (MSTP)		●
IEEE 802.1AB – Link Layer Discovery Protocol (LLDP)		●
IEEE 802.1X – Port-Based Network Access Control		●
ITU-T G.8032/Y.1344 – Ethernet Ring Protection Switching (ERPS)		●

Product Features

· IP Source Guard and Port Security

· Non-blocking Switching Architecture

· Layer 2+ Fully Managed Features, including MSTP, LACP, LLDP, sFlow, 802.1X, RADIUS, TACACS+, and ACLs

· Integrated DHCP Server, DHCP Relay, and DHCP Snooping

· Support for Voice VLAN

· Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption

· Multicast Support, including IGMP Snooping (v1/v2/v3), IGMP Proxy, IGMP Querier, MVR, and MLD Snooping (v1/v2)

Power Supply Unit Bundle Configuration

Model No.	Power Source Unit (PSU)	Weight	Dimension (W x H x D)
CMS-48410GF	1 (Internal Power Supply)	3.8 Kg	440 x 44 x 330 mm

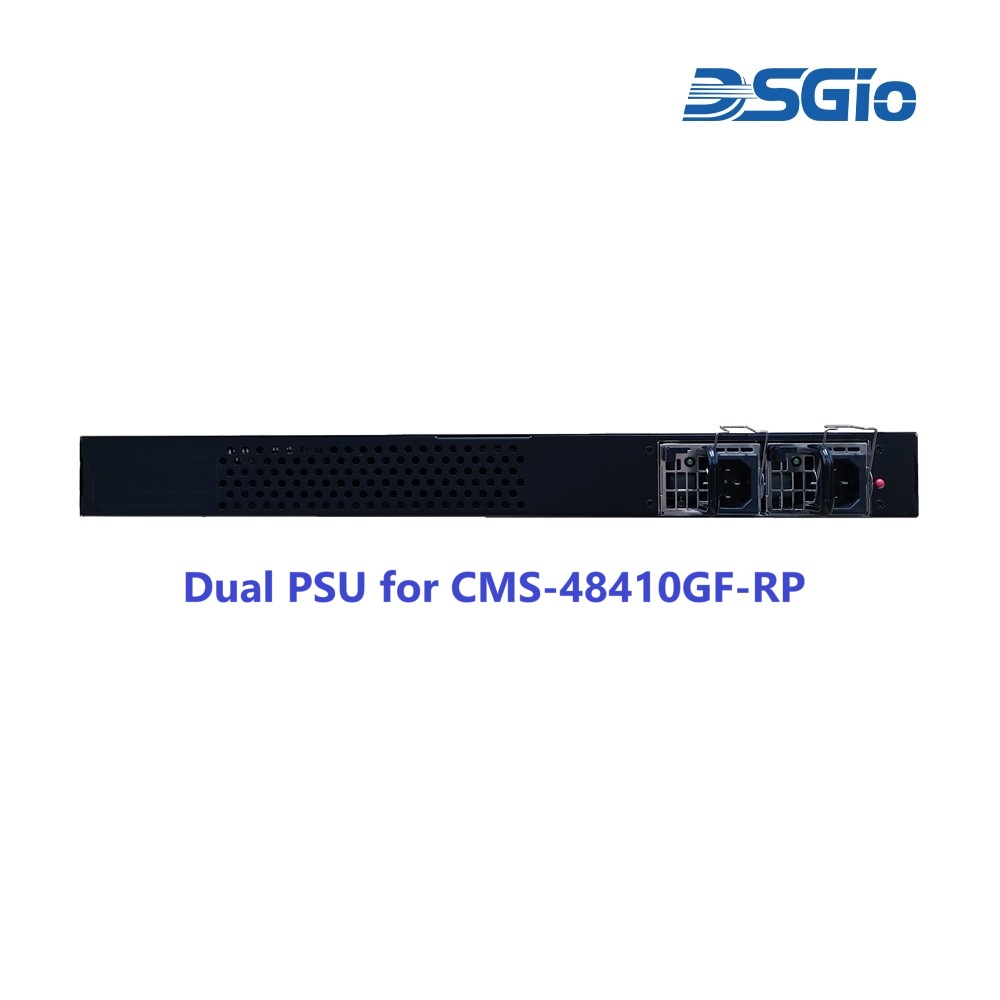

CMS-48410GF-RP	2 (Hot-Swappable Power Module in Redundant Config.)	5.3 Kg	440 x 44 x 410 mm
