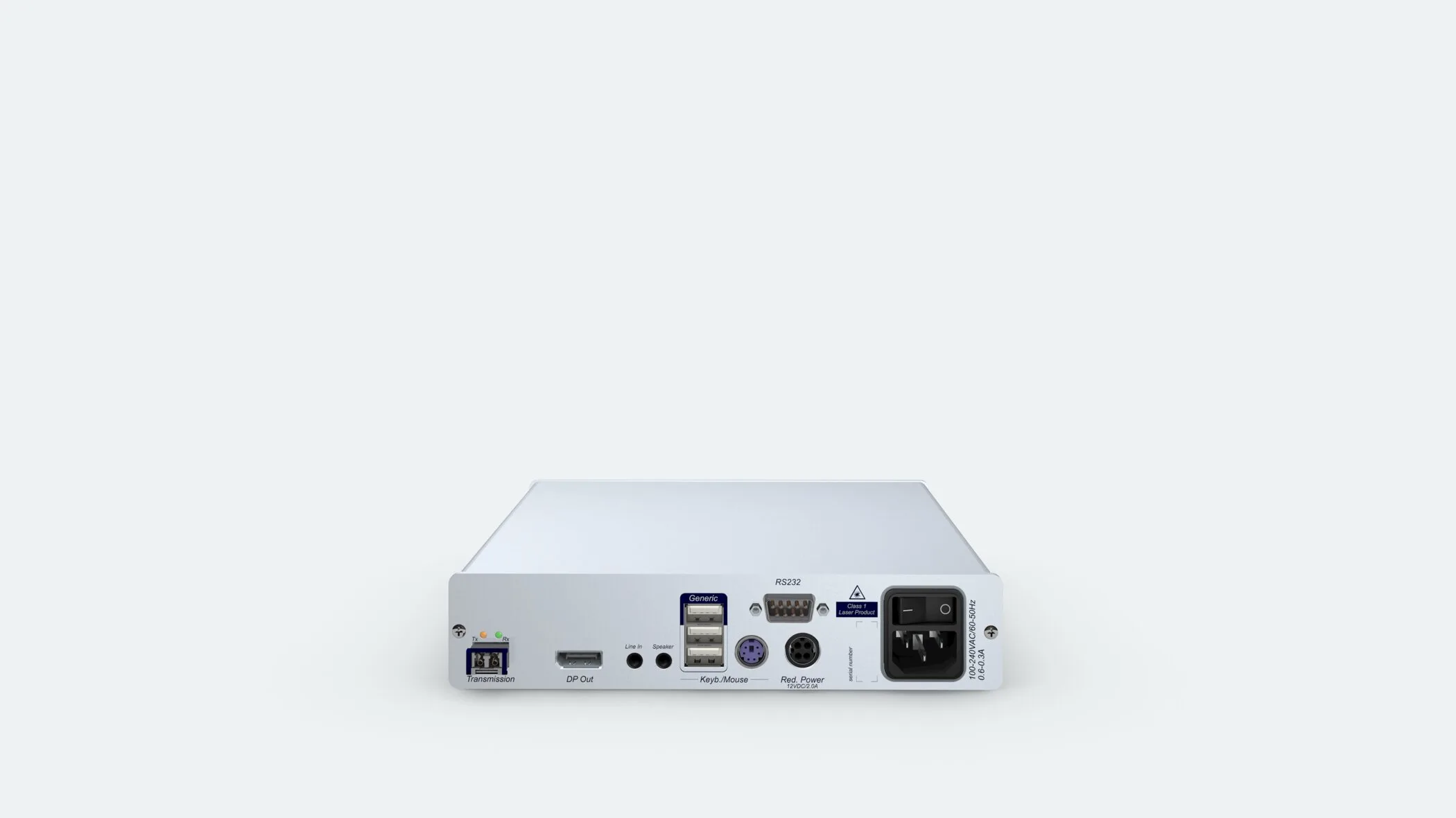

G&D DP1.2-Vision-Fiber(M)-AR-CON-2 (A1120306) (DP1.2-VISION-FIBER(M)-AR-CON-2) — Redundant console module to receive DisplayPort1.2 signals of 2 sources via fiber multimode
G&D DP1.2-Vision-Fiber(M)-AR-CON-2 (A1120306)
Guntermann & Drunck

G&D DP1.2-Vision-Fiber(M)-AR-CON (A1120305)

Contact for Price

Console module to receive DisplayPort1.2 signals via fiber multimode

Brand

Part number: DP1.2-VISION-FIBER(M)-AR-CON

SKU: DP1.2-VISION-FIBER(M)-AR-CON Category: Tags: , ,
Description

Extenders of the DP1.2-Vision series

extend high-resolution 4K video signals at 60 Hz compressed and pixel-perfect over every video channel.

With their network port, web interface and monitoring functions, the extenders offer important features for mission-critical applications.

An extender system consists of a computer module (CPU) and a console module (CON) and lets you operate a computer from a great distance.

Video

  • bluedec™ – advanced developed compression algorhythm of the latest generation for best video quality and latency-free transmission
  • E-DDC support
  • Resolution up to
    4096 × 2160 @ 60 Hz (4K2K/60Hz),
    2560 × 1440 @ 144 Hz,
    1920 × 1080 @ 240 Hz (Full HD/240Hz)

Signals

  • Full keyboard/mouse emulation
  • Embedded stereo audio (DisplayPort Digital, 2 channel LPCM)
  • Transparent audio signals (stereo, analog)
  • Transparent RS232 (max. 115,200 bps)

Transmission

  • Via fiber multimode
  • Distances up to 400 m

Device

  • Ident LED for quick location of the device in complex installations

Operation

  • Connect operating hardware and monitor with the corresponding interfaces of the workstation module
  • Further steps for commissioning see manual

System update

  • Updating via Config Panel 21 (HTML5, Java-free, optimized operation)

Click here for Technical Data

Shipping & Delivery

Related products

Adder Adder ADDERLink DV120 DVI Extender Pair (ALDV120P) (ALDV120P) — ADDERLink DV120 DVI Key Features Works over Standard Category Cable WUXGA (1920 x 1200) up to 164′…

Adder ADDERLink DV120 DVI Transmitter (ALDV120T)

,
AdderLink AV Digital DVI Transmitter
Adder Adder ADDERLink X50 Multiscreen - Dual VGA, USB, Audio, RS232 Extender Pair to 50 Meters Over Two CATx (X50-MS2) (X50-MS2) — ADDERLink ® X50 is compact in size and delivers uncompressed, lossles

Adder ADDERLink X50 Multiscreen – Dual VGA, USB, Audio, RS232 Extender Pair to 50 Meters Over Two CATx (X50-MS2)

,
ADDERLink® X50 is compact in size and delivers uncompressed, lossless extension of USB peripherals including Keyboards, Video and Mice (KVM) up to 50m (150ft) over a single CAT5 or higher UTP cable. Sharp, bright and ultra high-resolution video plus digital stereo audio are delivered over a VGA interface to a single screen with total USB 2.0 compatibility, regardless of the computer being controlled or the peripheral being extended.Key Features
  • Short-haul USB KVM extender, up to 165 ft (50 m)
  • Transparent USB, dual-head video, stereo audio, and serial over a two CATx cables
  • High quality dual-head VGA up to 1920 x 1440
  • Full serial RS232 support for touch screen applications
  • Finely adjustable video compensation
  • CD quality stereo audio
  • 4-port USB 2.0 hub at receiver

Adder Adder AdderLink XD Enhanced Dual 4K DisplayPort Extender Pair with UK Main Cables (XD642P-DP) (XD642P-DP) — A high-resolution, dual-head KVM extender with DisplayPort connectivity. Ultra-high de

Adder AdderLink XD Enhanced Dual 4K DisplayPort Extender Pair with UK Main Cables (XD642P-DP)

,
A high-resolution, dual-head KVM extender with DisplayPort connectivity. Ultra-high definition 4K60 video, USB2.0 and audio are transmitted on a single CATx or fiber cable.
Key Features
  • Up to 4096 x 2160 @ 60 Hz, 8-Bit 4:4:4
  • DisplayPort 1.2 Multi-Stream Transport
  • Supports 328' Transmission via Copper
  • 2.48 Mile Transmission via Fiber Cable
Adder Adder AdderLink XD HD Quad Head Extender Pair with UK Cables (XD614P-DP) (XD614P-DP) — A high-resolution, quad-head KVM extender. High-definition video, USB 2.0 and audio are transmitted…

Adder AdderLink XD HD Quad Head Extender Pair with UK Cables (XD614P-DP)

,
A high-resolution, quad-head KVM extender. High-definition video, USB 2.0 and audio are transmitted on a single CATx or fiber cable.
Key Features
  • Up to 1920 x 1200 @ 60 Hz, 8-Bit 4:4:4
  • DisplayPort 1.2 Multi-Stream Transport
  • 328' Transmission via Cat 6 Cable
  • 2.48 Mile Transmission via Fiber Cable
Adder Adder AdderLink XD Single HD/MST Dual HD Extender Pair with UK Mains Cables (XD612P-DP) (XD612P-DP) — A high-resolution single or dual-head KVM extender. High-definition video, USB 2.0 and audio

Adder AdderLink XD Single HD/MST Dual HD Extender Pair with UK Mains Cables (XD612P-DP)

,
A high-resolution single or dual-head KVM extender. High-definition video, USB 2.0 and audio are transmitted on a single CATx or fiber cable.
Key Features
  • Up to 1920 x 1200 @ 60 Hz, 8-Bit 4:4:4
  • DisplayPort 1.2 Multi-Stream Transport
  • 328' Transmission via Cat 6 Cable
  • 2.48 Mile Transmission via Fiber Cable

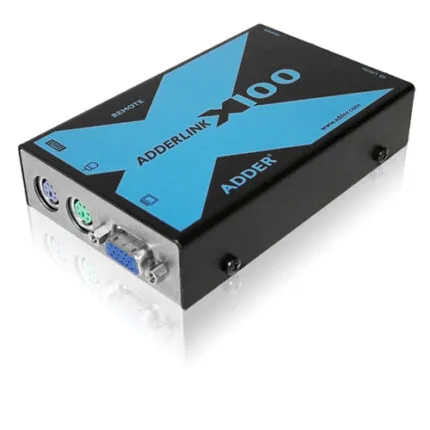

Adder Adder AdderLink X100 PS/2 & VGA KVM CATx Extender Pair (USB CAM) 100 Mtr (X100-USB/P) (X100-USB/P) — The AdderLink X100-USB/P is USB KVM extender which has been designed for use in applications

Adder PS/2 KVM receiver (X100/R)

,
ADDERLink X100s have been designed for use in applications where keyboard, mouse, high quality video and audio needs to be extended no more than 100m (330ft) over category 5 or higher UTP cable.The ADDERLink X100s provide industry-leading video clarity, audio quality and compatibility.Short haul, fully featured, keyboard, video, mouse and optional audio extender for PS/2 and USB computers
Adder Adder AdderLink X100 PS/2 & VGA KVM CATx Extender Pair (USB CAM) 100 Mtr (X100-USB/P) (X100-USB/P) — The AdderLink X100-USB/P is USB KVM extender which has been designed for use in applications

Adder X100 User Station for CATx Switches – VGA, PS/2, Audio with SKEW Compensation (X100AS/R)

,
ADDERLink X100s have been designed for use in applications where keyboard, mouse, high quality video and audio needs to be extended no more than 100m (330ft) over category 5 or higher UTP cable.The ADDERLink X100s provide industry-leading video clarity, audio quality and compatibility.Key Features
  • Flash upgradeable
  • Supports audio and deskew
  • IEC style power supply and power cord

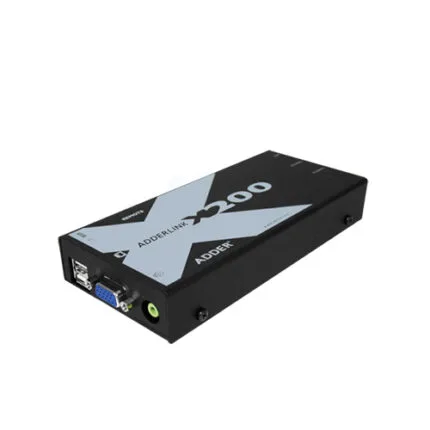

Adder Adder X200 Extender Pair - VGA, Audio, USB Extender to 300 Meters with Dongle Transmitter (X200AS-USB/P) (X200AS-USB/P) — Fully featured USB keyboard, video and mouse extender with 44.1kHz digit
