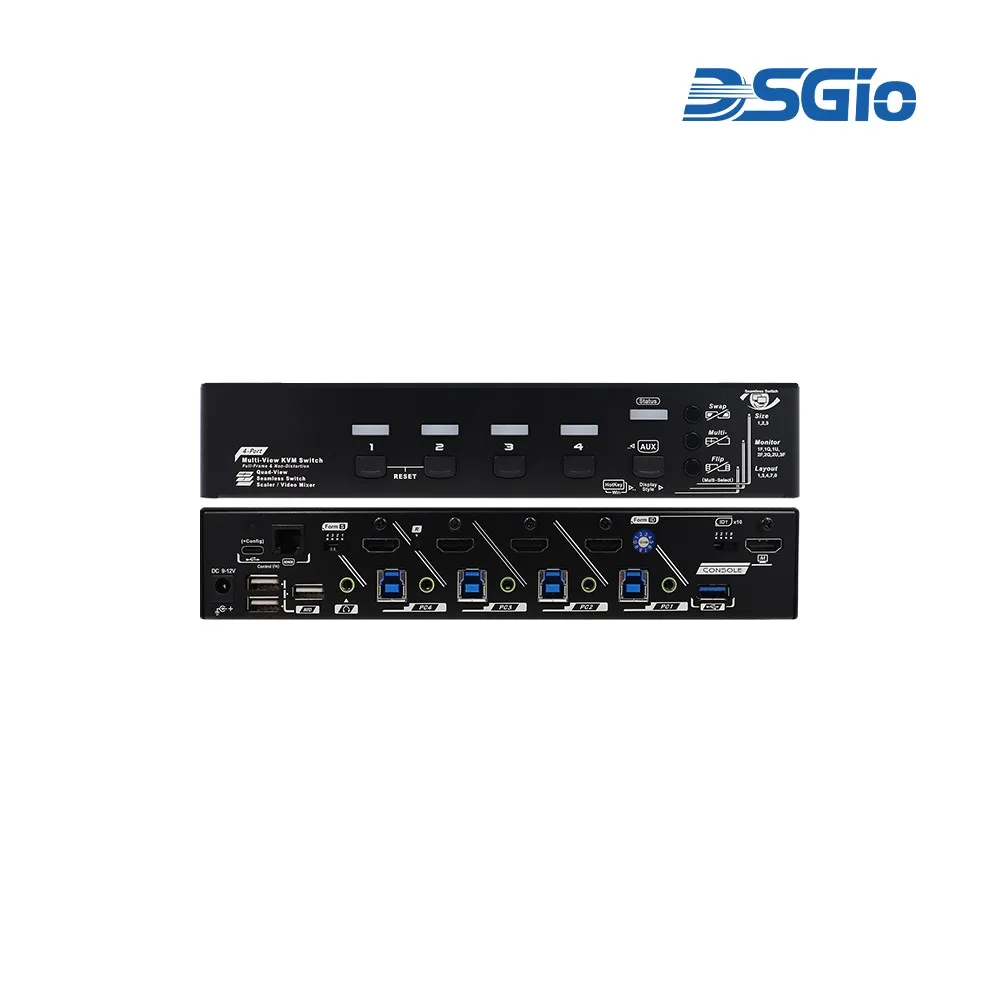

KMV-4KH41-U30R 4-Port 4K60 HDMI KVM Multiview Switch, Quad/PIP/PBP
Contact for Price
A versatile multi-view KVM switch that supports PiP/PbP split-screen capabilities, allowing users to efficiently monitor and manage four computers simultaneously.
| Brand | DSGIO |
|---|
Part number: KMV-4KH41-U30R
Description
Technical Specifications
| Maximum Resolution | 4K@60Hz (4:4:4) |
| Video Standard | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 and 1.4 |
| Supported Aspect Ratios | 16:9, 21:9, 32:9 |
| Computer Inputs | 4 HDMI |
| Video Output | HDMI |
| Display Modes | Single, Quad, PiP, 1+3 PbP, 3+1 PbP |
| USB Standard | USB 3.2 peripheral sharing |
| Serial Interface | RJ-11 (RS-232 to RJ11), USB-C virtual COM |
| Serial Baud Rate | 8 selectable options |
| Switching Methods | Front panel, hotkeys, mouse roaming, serial, wired/wireless keypad |
| Installation | Plug-and-play, no driver required |
Source: DSGIO — KMV-4KH41-U30R 4-Port 4K60 HDMI KVM Multiview Switch, Quad/PIP/PBP. Verify with manufacturer.
Source: DSGIO — KMV-4KH41-U30R, KVM Multiview Switch. Verify with manufacturer.
